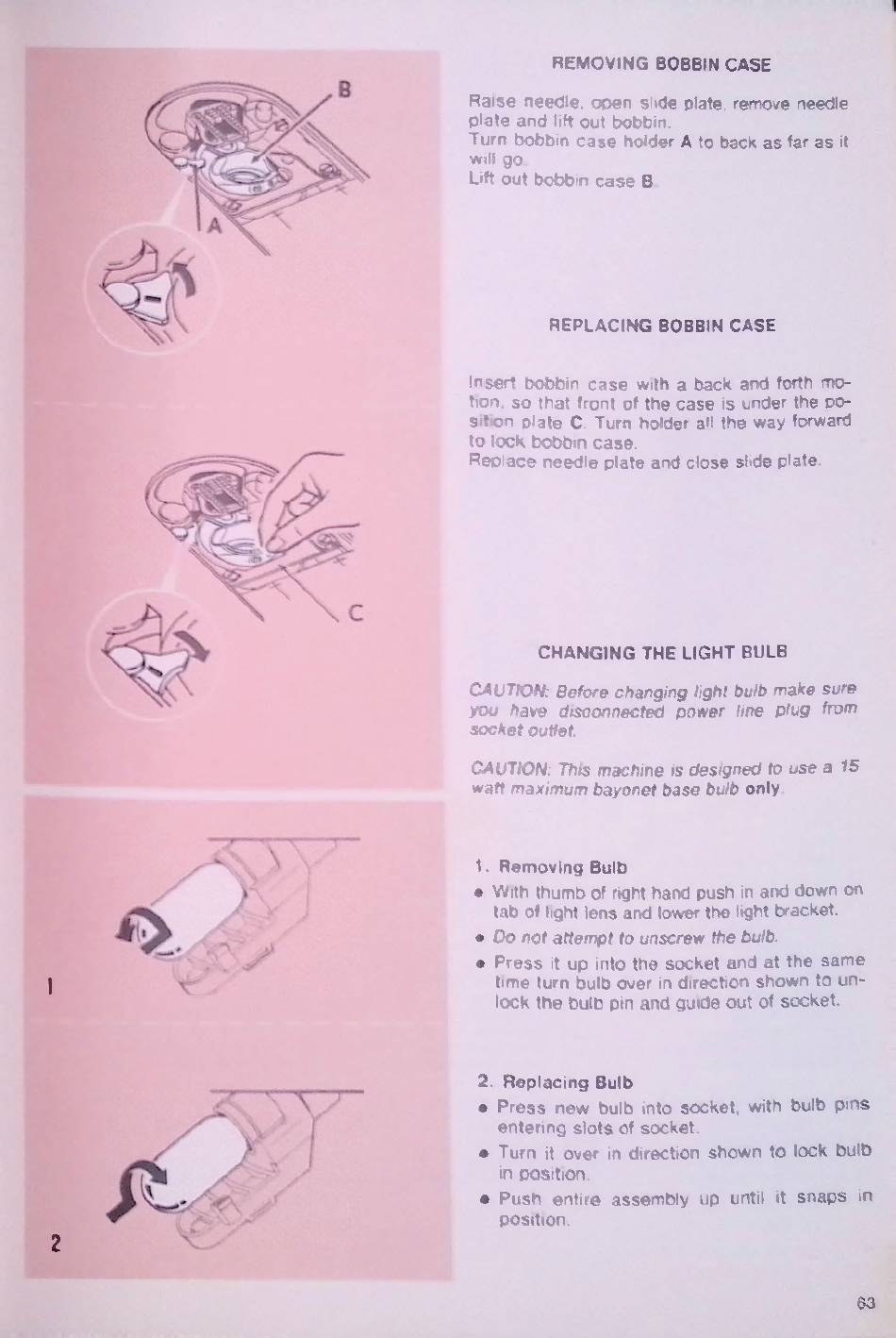

REMOVING BOBBIN CASE
Raise needle, open shde plate, remove needle
plate and lift out bobbin.
Turn bobbin case holder A to back as far as it
will go
ift out bobbin case B
REP ACING BOBBIN CASE
Insert bobbin case with a back and forth mo ­
tion. so that front of the case is under the po ­
st on plate C. Turn holder all the way forward
to lock bobbin case.
Replace needle plate and close slide plate.
CHANGING THE IGHT BU B
CAUTIO : Before changing light bulb make sure
you have disconnected power line plug from
socket outlet.
CAUTIO : This machine is designed to use a 15
watt maximum bayonet base bulb only
1
1. Removing Bulb
• With thumb of right hand push in and down on
tab of light lens and lower the light bracket.
• Do not attempt to unscrew the bulb.
• Press it up into the socket and at the same
time turn bulb over in direction shown to un ­
lock the bulb pin and guide out of socket.
2
2. Replacing Bulb
• Press new bulb into socket, with bulb pins
entering slots of socket.
• Turn it over in direction shown to lock bulb
in position.
• Push entire assembly up until it snaps in
position.
63
