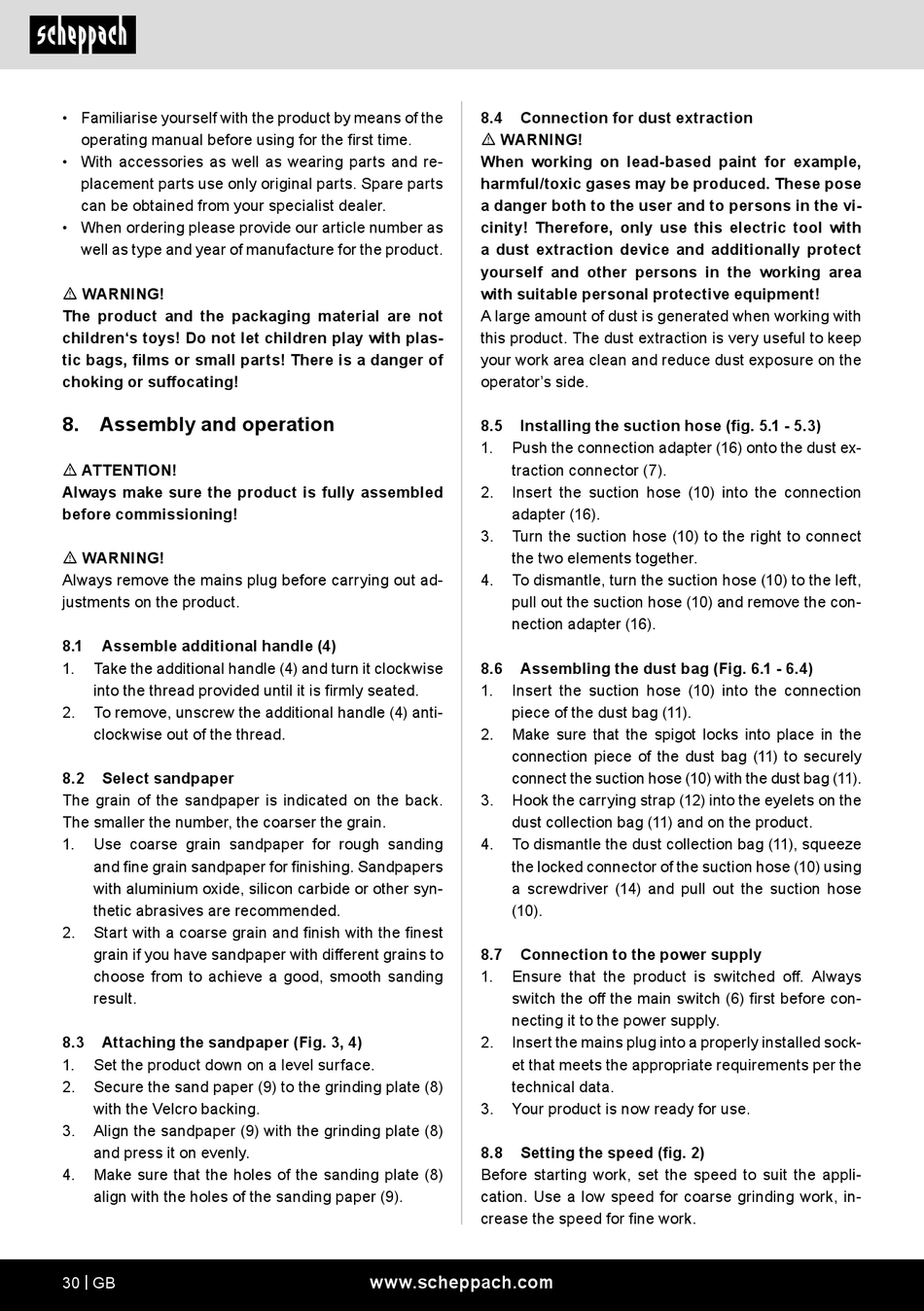

Scheppach DS200 Originalbetriebsanleitung Seite 30

• Familiarise yourself with the product by means of the
operating manual before using for the first time.
• With accessories as well as wearing parts and re-
placement parts use only original parts. Spare parts
can be obtained from your specialist dealer.
• When ordering please provide our article number as
well as type and year of manufacture for the product.
m WARNING!
The product and the packaging material are not
children's toys! Do not let children play with plas-
tic bags, films or small parts! There is a danger of
choking or suffocating!
8. Assembly and operation
m ATTENTION!
Always make sure the product is fully assembled
before commissioning!
m WARNING!
Always remove the mains plug before carrying out ad-
justments on the product.
8.1 Assemble additional handle (4)
1. Take the additional handle (4) and turn it clockwise
into the thread provided until it is firmly seated.
2. To remove, unscrew the additional handle (4) anti-
clockwise out of the thread.
8.2 Select sandpaper
The grain of the sandpaper is indicated on the back.
The smaller the number, the coarser the grain.
1. Use coarse grain sandpaper for rough sanding
and fine grain sandpaper for finishing. Sandpapers
with aluminium oxide, silicon carbide or other syn-
thetic abrasives are recommended.
Start with a coarse grain and finish with the finest
2.
grain if you have sandpaper with different grains to
choose from to achieve a good, smooth sanding
result.
8.3 Attaching the sandpaper (Fig. 3, 4)
1. Set the product down on a level surface.
2. Secure the sand paper (9) to the grinding plate (8)
with the Velcro backing.
3. Align the sandpaper (9) with the grinding plate (8)
and press it on evenly.
4. Make sure that the holes of the sanding plate (8)
align with the holes of the sanding paper (9).
30 | GB
8.4 Connection for dust extraction
m WARNING!
When working on lead-based paint for example,
harmful/toxic gases may be produced. These pose
a danger both to the user and to persons in the vi-
cinity! Therefore, only use this electric tool with
a dust extraction device and additionally protect
yourself and other persons in the working area
with suitable personal protective equipment!
A large amount of dust is generated when working with
this product. The dust extraction is very useful to keep
your work area clean and reduce dust exposure on the
operator's side.
Installing the suction hose (fig. 5.1 - 5.3)
8.5
1. Push the connection adapter (16) onto the dust ex-
traction connector (7).
2. Insert the suction hose (10) into the connection
adapter (16).
3. Turn the suction hose (10) to the right to connect
the two elements together.
4. To dismantle, turn the suction hose (10) to the left,
pull out the suction hose (10) and remove the con-
nection adapter (16).
8.6 Assembling the dust bag (Fig. 6.1 - 6.4)
1. Insert the suction hose (10) into the connection
piece of the dust bag (11).
2. Make sure that the spigot locks into place in the
connection piece of the dust bag (11) to securely
connect the suction hose (10) with the dust bag (11).
3. Hook the carrying strap (12) into the eyelets on the
dust collection bag (11) and on the product.
4. To dismantle the dust collection bag (11), squeeze
the locked connector of the suction hose (10) using
a screwdriver (14) and pull out the suction hose
(10).
8.7 Connection to the power supply
Ensure that the product is switched off. Always
1.
switch the off the main switch (6) first before con-
necting it to the power supply.
2. Insert the mains plug into a properly installed sock-
et that meets the appropriate requirements per the
technical data.
3. Your product is now ready for use.
Setting the speed (fig. 2)
8.8
Before starting work, set the speed to suit the appli-
cation. Use a low speed for coarse grinding work, in-
crease the speed for fine work.
