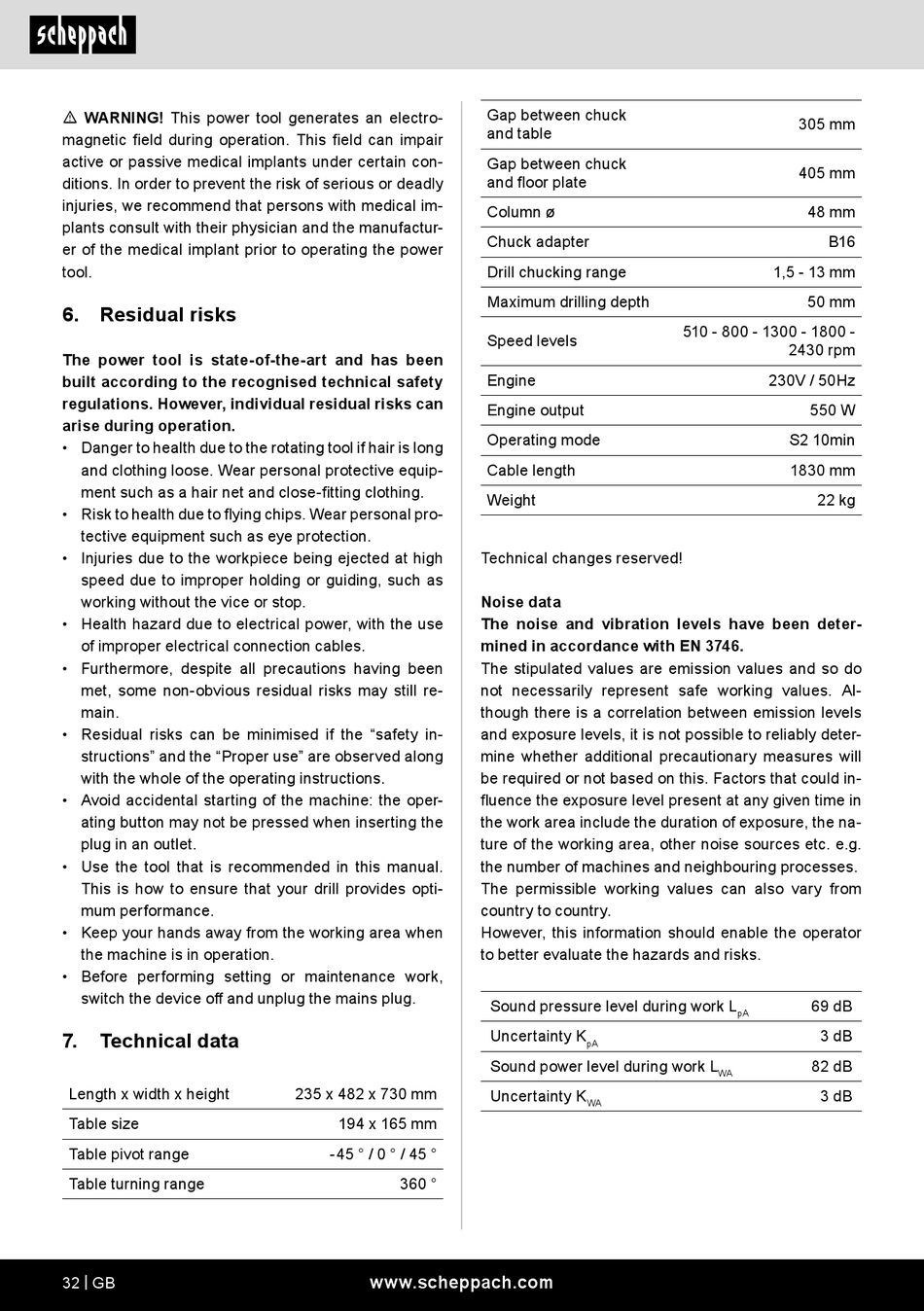

Scheppach DP16SL Originalbetriebsanleitung Seite 32

m WARNING! This power tool generates an electro-
magnetic field during operation. This field can impair
active or passive medical implants under certain con-
ditions. In order to prevent the risk of serious or deadly
injuries, we recommend that persons with medical im-
plants consult with their physician and the manufactur-
er of the medical implant prior to operating the power
tool.
6. Residual risks
The power tool is state-of-the-art and has been
built according to the recognised technical safety
regulations. However, individual residual risks can
arise during operation.
• Danger to health due to the rotating tool if hair is long
and clothing loose. Wear personal protective equip-
ment such as a hair net and close-fitting clothing.
• Risk to health due to flying chips. Wear personal pro-
tective equipment such as eye protection.
• Injuries due to the workpiece being ejected at high
speed due to improper holding or guiding, such as
working without the vice or stop.
• Health hazard due to electrical power, with the use
of improper electrical connection cables.
• Furthermore, despite all precautions having been
met, some non-obvious residual risks may still re-
main.
• Residual risks can be minimised if the "safety in-
structions" and the "Proper use" are observed along
with the whole of the operating instructions.
• Avoid accidental starting of the machine: the oper-
ating button may not be pressed when inserting the
plug in an outlet.
• Use the tool that is recommended in this manual.
This is how to ensure that your drill provides opti-
mum performance.
• Keep your hands away from the working area when
the machine is in operation.
• Before performing setting or maintenance work,
switch the device off and unplug the mains plug.
7. Technical data
Length x width x height
Table size
Table pivot range
Table turning range
32 | GB
235 x 482 x 730 mm
194 x 165 mm
-45 ° / 0 ° / 45 °
360 °
www.scheppach.com
Gap between chuck
and table
Gap between chuck
and floor plate
Column ø
Chuck adapter
Drill chucking range
Maximum drilling depth
Speed levels
Engine
Engine output
Operating mode
Cable length
Weight
Technical changes reserved!
Noise data
The noise and vibration levels have been deter-
mined in accordance with EN 3746.
The stipulated values are emission values and so do
not necessarily represent safe working values. Al-
though there is a correlation between emission levels
and exposure levels, it is not possible to reliably deter-
mine whether additional precautionary measures will
be required or not based on this. Factors that could in-
fluence the exposure level present at any given time in
the work area include the duration of exposure, the na-
ture of the working area, other noise sources etc. e.g.
the number of machines and neighbouring processes.
The permissible working values can also vary from
country to country.
However, this information should enable the operator
to better evaluate the hazards and risks.
Sound pressure level during work L
Uncertainty K
pA
Sound power level during work L
Uncertainty K
WA
305 mm
405 mm
48 mm
B16
1,5 - 13 mm
50 mm
510 - 800 - 1300 - 1800 -
2430 rpm
230V / 50Hz
550 W
S2 10min
1830 mm
22 kg
69 dB
pA
3 dB
82 dB
WA
3 dB
