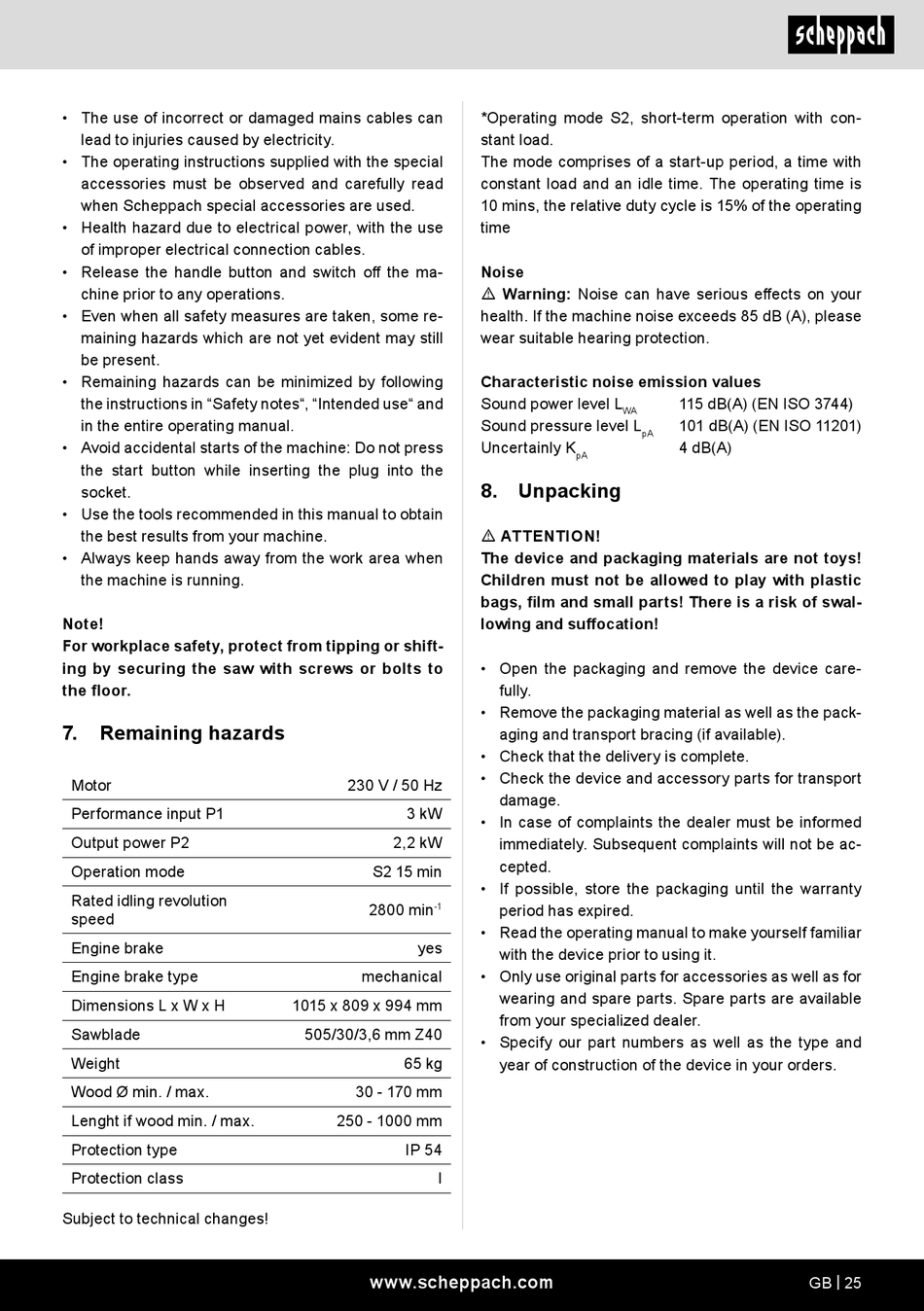

Scheppach HS510 Original Bedienungsanleitung Seite 25

• The use of incorrect or damaged mains cables can
lead to injuries caused by electricity.
• The operating instructions supplied with the special
accessories must be observed and carefully read
when Scheppach special accessories are used.
• Health hazard due to electrical power, with the use
of improper electrical connection cables.
• Release the handle button and switch off the ma-
chine prior to any operations.
• Even when all safety measures are taken, some re-
maining hazards which are not yet evident may still
be present.
• Remaining hazards can be minimized by following
the instructions in "Safety notes", "Intended use" and
in the entire operating manual.
• Avoid accidental starts of the machine: Do not press
the start button while inserting the plug into the
socket.
• Use the tools recommended in this manual to obtain
the best results from your machine.
• Always keep hands away from the work area when
the machine is running.
Note!
For workplace safety, protect from tipping or shift-
ing by securing the saw with screws or bolts to
the floor.
7. Remaining hazards
Motor
Performance input P1
Output power P2
Operation mode
Rated idling revolution
speed
Engine brake
Engine brake type
Dimensions L x W x H
Sawblade
Weight
Wood Ø min. / max.
Lenght if wood min. / max.
Protection type
Protection class
Subject to technical changes!
230 V / 50 Hz
3 kW
2,2 kW
S2 15 min
2800 min
-1
yes
mechanical
1015 x 809 x 994 mm
505/30/3,6 mm Z40
65 kg
30 - 170 mm
250 - 1000 mm
IP 54
I
www.scheppach.com
*Operating mode S2, short-term operation with con-
stant load.
The mode comprises of a start-up period, a time with
constant load and an idle time. The operating time is
10 mins, the relative duty cycle is 15% of the operating
time
Noise
m Warning: Noise can have serious effects on your
health. If the machine noise exceeds 85 dB (A), please
wear suitable hearing protection.
Characteristic noise emission values
Sound power level L
WA
Sound pressure level L
pA
Uncertainly K
pA
8. Unpacking
m ATTENTION!
The device and packaging materials are not toys!
Children must not be allowed to play with plastic
bags, film and small parts! There is a risk of swal-
lowing and suffocation!
• Open the packaging and remove the device care-
fully.
• Remove the packaging material as well as the pack-
aging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for transport
damage.
• In case of complaints the dealer must be informed
immediately. Subsequent complaints will not be ac-
cepted.
• If possible, store the packaging until the warranty
period has expired.
• Read the operating manual to make yourself familiar
with the device prior to using it.
• Only use original parts for accessories as well as for
wearing and spare parts. Spare parts are available
from your specialized dealer.
• Specify our part numbers as well as the type and
year of construction of the device in your orders.
115 dB(A) (EN ISO 3744)
101 dB(A) (EN ISO 11201)
4 dB(A)
