English
6 Quick-clamping devices
The quick-clamping device clamps the upper
handlebar onto the lower handlebar and is
used to fold down the handlebar.
7 Flap
The flap covers the battery, the ECO switch
and the activation key and protects from soil‐
ing.
8 Lever
The lever is used to set the cutting height of
the front wheels.
9 Transport handle
The transport handle is used to transport the
lawn mower.
10 Rear axle
The rear axle is used to set the cutting height
of the rear wheels.
11 Battery
The battery supplies the lawn mower with
power.
12 "BLUETOOTH
®
" LED (only for batteries with
)
The LED indicates whether the Bluetooth®
radio interface is enabled or disabled.
13 Button
The button activates the LEDs on the battery.
It enables and disables the Bluetooth® radio
interface (if present).
14 LEDs
The LEDs indicate the battery charge state
and faults.
15 Locking lever
The locking lever keeps the battery in the bat‐
tery compartment.
16 Battery compartment
The battery compartment holds the battery.
17 ECO switch
The ECO switch activates and deactivates
ECO mode.
18 Activation key
The activation key activates the lawn mower.
RMA 2.2 RPV:
19 Battery compartment
The battery compartment holds a second bat‐
tery.
RMA 2.2 RV:
19 Transport compartment
The transport compartment holds a replace‐
ment battery.
30
20 Blade
The blade mulches the grass.
# Rating plate with machine number

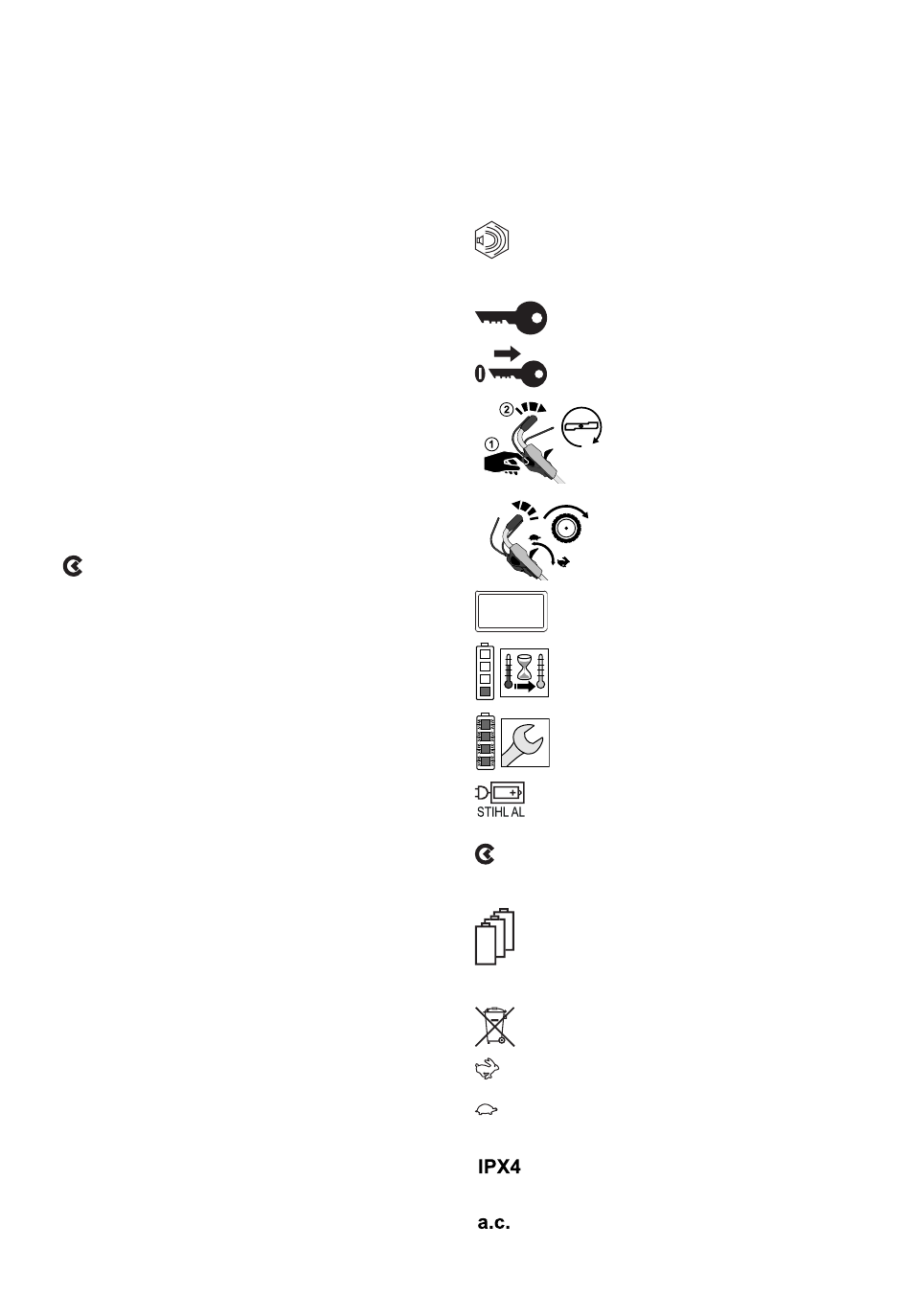

3.2 Symbols
The symbols may appear on the lawn mower
and the battery. Their meaning is as follows:
Guaranteed sound power level in
L
accordance with Directive 2000/14/EC
WA
in dB(A) for the purpose of comparing
the sound emissions of products.
This symbol denotes the activation
key.
This symbol denotes the key socket.
Switch the cutting blade on and
off.
Switch self-propulsion on and
off and set the travel speed.
This symbol denotes the ECO switch.
ECO ECO
1 LED lights up steady red. The battery
is too warm or too cold.
4 LEDs flash red. There is an error in
the battery.
The battery must be recharged with a
STIHL charger. The admissible chargers
are listed in these safety instructions.
The battery is equipped with a Bluetooth
radio interface and can be paired with the
STIHL connected app.
The information next to the symbol indi‐
cates the energy content of the battery
according to the cell manufacturer's specifi‐
cation. The energy content available in
operation is lower.
Do not dispose of the product with domes‐
tic waste.
The lawn mower moves at its fastest
speed in this setting.
The lawn mower moves at its slowest
speed in this setting.
IP marking
Alternating current
3 Overview
®
