5. INSTALLING THE CAMERA

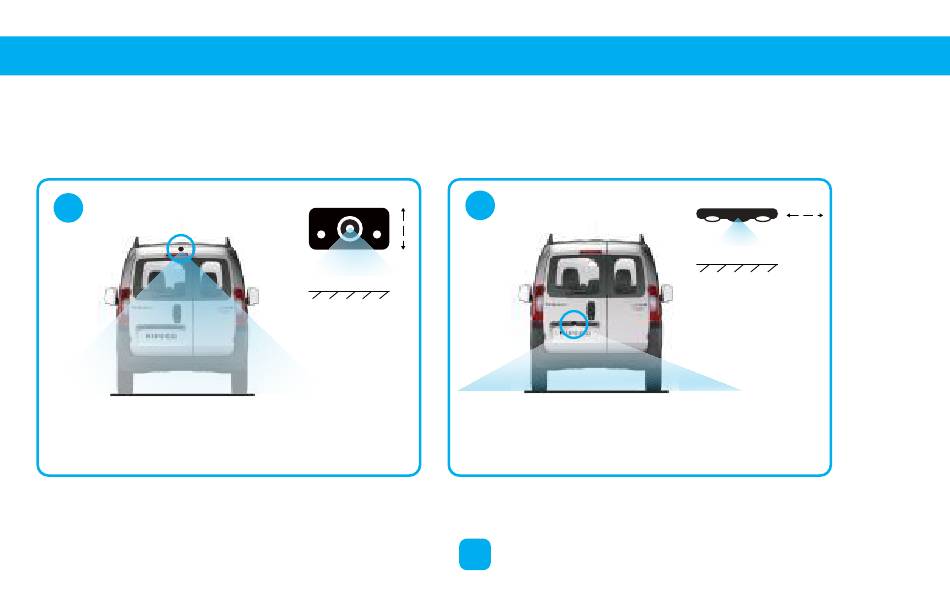

The adjustable angle of the camera allows you to position it in two different locations on the vehicle, according to your choice
or a technical constraint: on the top of the bodywork (at the level of the upper brake light, see diagram A below) or on the bottom
of the bodywork (at the number plate pilot light, see diagram B below).
A
HIGH LOCATION
The camera is positioned on the highest part of the
bodywork, as centrally as possible to the vehicle.
/!\ If installing the camera vertically, be sure to fill the hole at the top with putty,
in order to reinforce the seal and thus avoid the entry of water into the vehicle by capillary action.
SOL
Camera
perpendicular
on the ground
The camera is positioned above the license plate
without obstructing visibility. The camera should be
as central as possible.
46
B
LOW LOCATION
SOL
Camera
parallel
on the ground
