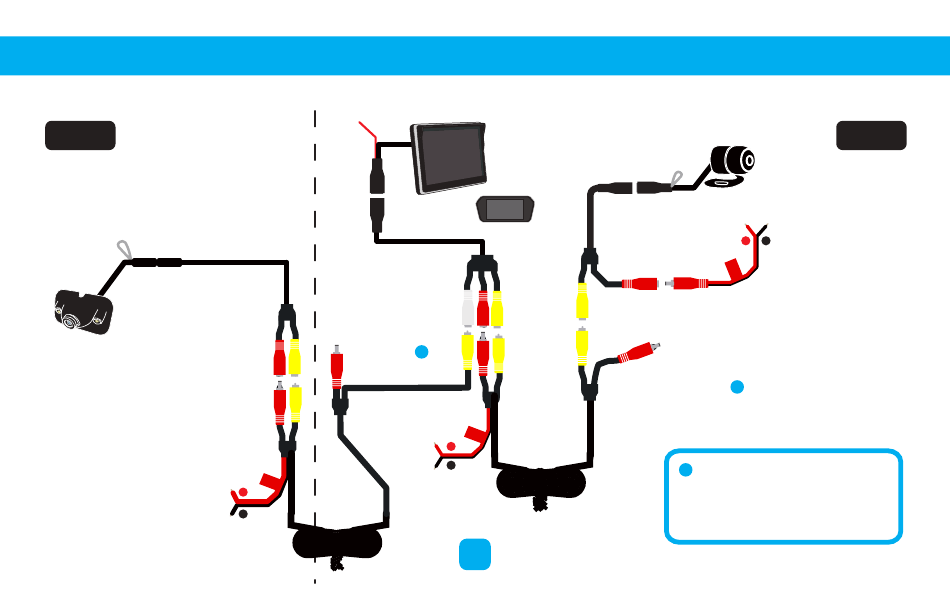

3. CONNECTING THE SYSTEM (Adding a second camera)
BACK
Camera #1
Red Wire +12V Reversing light
Black Wire Ground
Red string
+12V Reverse (optional)
Do not connect
& to INSULATE
+12V After contact
FUSE
Black Wire
+
-
5" screen
(or 7'' screen)
*
Red string
+
-
Mass
41
Camera #2
(example ref.RX-32)
Black Wire
Red string
Mass
+12V After contact
-
+
FUSE
Do not connect
& to INSULATE
*
*
Please protect this connector
so that it is not brought into contact
with a metal part of the vehicle.
BEFORE
