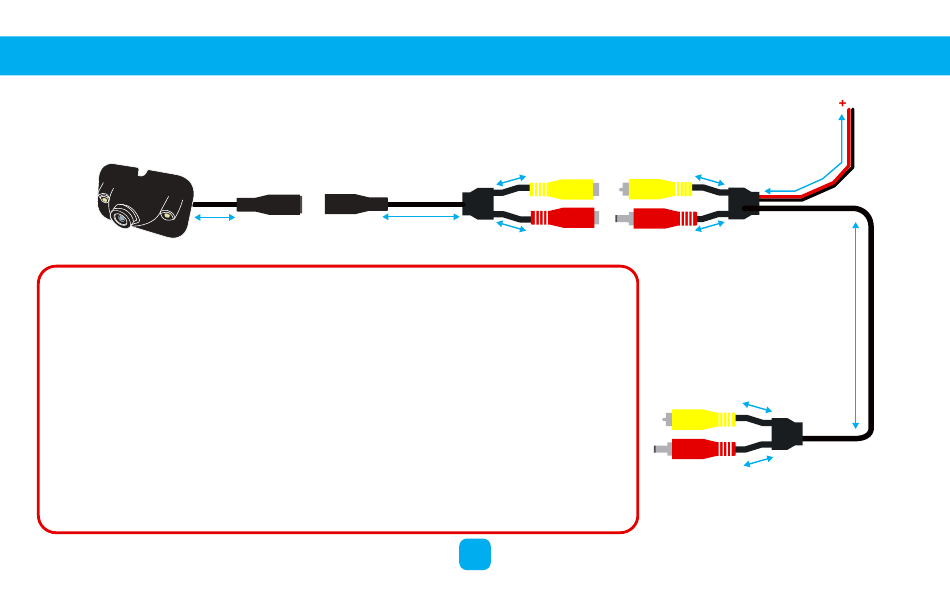

3. CONNECTING THE SYSTEM (RVUX-C5N Kit)
20 cm
Camera
WARNING • VEHICLES DO NOT CONNECT A CONSUMER TO THE REVERSE LIGHT
HARNESS
On certain vehicles, the +12 V Reversing light is interfered with when the engine is
running, which can disrupt the proper functioning of the reversing radar or the
reversing camera kit.
In other cases, this +12 V Reversing light does not allow any additional consumers.
For all these vehicles, Beeper has developed the RCAN R2 module in order to
recover the +12 V Reversing light information from the CANBUS network. This
module connects to the CANBUS of the compatible vehicle and allows you to deliver
a +12V reversing light for connecting a radar or reversing camera
Ref: RCANR2, more information & list of compatible vehicles:
http://www.beeper.fr/radar-camera-de-recul/rcanr2.php
10 cm
40 cm
10 cm
12
Red string -
+12V after contact
or +12V reversing light
10 cm 150 cm
10 cm
1 200 cm
10 cm
10 cm
Black Wire
Mass
