• The COalarm shou d have a horizontal distance between 1 m (33 feet) and 3 m (10 feet) from any potential CO source.
• If there is a partition in the room, the CO alarm should be installed on the same side of the partition asthe potential CO
source.
300 mm (11.8 in)
150 mm (5.9 in)
DEAD AIR SPACE
DON'T INSTALL HERE

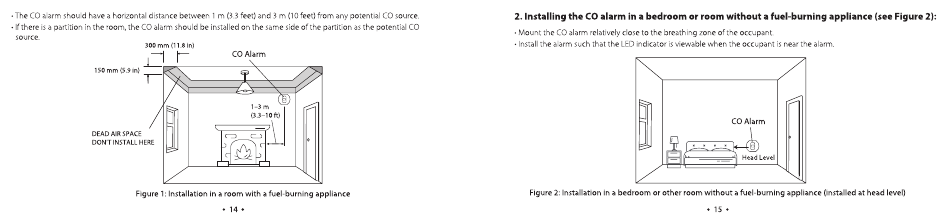

Figure 1: Installation in a room with a fuel-burning appliance
CO Alarm
1-3 m
(3.3-10 ft)
• 14.
2. Installing the CO alarm in a bedroom or room without
• Mount the CO alarm relatively close to the breathing zone of the occupant.
• Install the alarm such that the LEDindicator is viewable when the occupant is near the alarm.
Figure 2: Installation in a bedroom or other room without a fuel-burning appliance (installed at head level)
a fuel-burning appliance (see Figure 2):
CO Alarm
Head Leve
.15.
