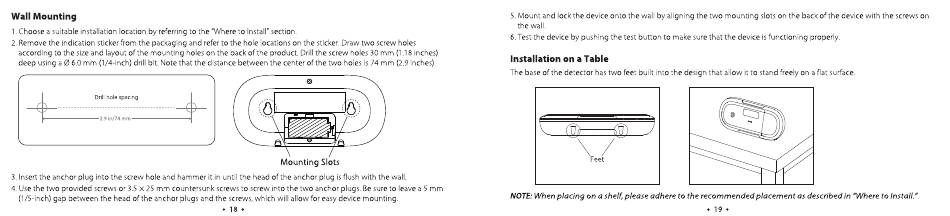

Wall Mounting
1.Choose a suitable installation location by referring to the "Whereto Install"section.
2. Removethe indication stickerfrom the packaging and refer to the hole locations on the sticker. Draw two screw holes
according to the size and ayout of the mounting holes on the back of the product. Drill the screw holes 30 mm (1.18inches)
deep using a Ø 60 mm (1/4 inch) drill bit. Note that the distance between the center of the two holes is 74 mm (2.9inches).
Drill hole spacing
29
iru'74 m m
3. Insertthe anchor plug into the screw hole and hammer it in until the head of the anchor plug is flush with the wal
4. Usethe two provided screwsor 3.5 x 25 mm countersunk screwsto screw into the two anchor plugs. Besure to leave a 5 mm
(1/5-inch) gap between the head of the anchor plugs and the screws,which will allow for easydevice mounting.
o
Mounting
Slots
.18.
5. Mount and lock the device onto the wal by aligning the two mounting slots on the back of the device with the screwson
the wal
6. Test the device by pushing the test button to make sure that the device is functioning properly.
Installation
on a Table
The baseof the detector hastwo feet built into the design that allow it to stand freey on a flat surface.
NOTE: When placing on a shelf, please adhere to the recommended placement as described in "Where to Install. "
.19.
