ENGLISH
GENERAL SPECIFICATIONS
The Klein Tools VDV Scout
Pro Max is a portable voice-data-video cable tester. It tests and troubleshoots RJ11,
®
RJ12, RJ45, and F-connector terminated cables and provides analog and digital tone generation for cable tracing
(digital toning requires KT VDV500-223.) The VDV Scout
for shielded cables and unshielded cables, traces up to 20 locations with included remotes, performs short and
open fault detection, performs hub blink testing, measures active and passive Power over Ethernet (PoE), tests
POTS (Plain-Old-Telephone-Service), and tests advertised active network speeds.
• Environment: Indoors
• Operating Altitude: 6562 ft. (2000 m)
• Relative Humidity: <90% non-condensing
• Operating Temperature: 32° to 122°F (0° to 50°C)
• Storage Temperature: -4° to 140°F (-20° to 60°C)
• Input Protection: 60V peak 50/60Hz AC or DC
• Common Cable Length Ranges: Coax: 0 to 2000' (0 to 610 m)
Data: 0 to 3000' (0 to 914 m) Electrical: 0 to 1000' (0 to 305 m)
• Measurement Method: TDR (Time Domain Reflectometry)
• Measurement Units: Feet, meters
• Velocity of propagation (VoP) Range: 0 to 99.9%
• Accuracy: ± (2% + 3 ft. or 1 m) with known VoP and consistent cable parameters
• Tone Generation:
Constant: 800 Hz, 1000 Hz, 1200 Hz & 1500 Hz
Alternating: 800 Hz/1200 Hz, 1000 Hz/1500 Hz
Digital: Requires Klein Tools VDV500-223 Digital Tracing Probe sold separately
• PoE (Power over Ethernet): Tests for IEEE 802.3af (PoE). 802.3at (PoE+) and 802.3bt (PoE++), Types 1-4
and tests for Passive PoE up to 60V. Identifies Mode A, B and 4-pair.
• Active Network: Indicates advertised speeds of 10/100/1G/10Gbase-t. Half or Full duplex
• POTS (Plain-Old-Telephone-Service): Test tip and ring voltages
• Batteries: 3× AA alkaline
• Battery Low Level: Approx. 3.3V
• Battery Life: Active: Approx. 15 hours Standby: Approx. 1 year
• Auto Power Off (APO): Test Mode: 10 to 60 minutes (default = 20 min.)
Tone Mode: 5 to 60 minutes, or OFF
• Dimensions: 4" × 7.2" × 1.6" (10.16 × 18.29 × 4.06 cm)
• Weight: 15.8 oz. (448 grams) with batteries
Specifications subject to change.
To ensure safe operation and service of the tester, follow these instructions. Failure to observe these
warnings can result in severe injury or death.
The RJ45 port
is the only jack designed for PoE energized cables. Connecting AC energized cables to any
•
15
port may damage it and pose a safety hazard to the user.
Always wear approved eye protection.
•
Improperly terminated RJ plugs have the potential to damage the jacks on the VDV Scout
•
inspect an RJ plug before inserting it into the tester. The contacts should always be recessed into the plastic
housing of the plug. Plugging 6-position plugs into the 8-position jack on the tester has the potential to
damage the outer-most contacts of the jack unless the plug is specifically designed for that purpose.
SYMBOLS ON TESTER
Warning or Caution
Risk of Electric Shock. Improper use of this meter can lead to risk of
electrical shock. Follow all warnings and instructions detailed in this manual
Read instructions
Conformité Européenne - Conforms
with European Economic Area directives
This symbol indicates that equipment and its accessories shall be subject to a separate collection and correct disposal
2
VDV501-770-1390677ART Scout Pro Max Manual.indd 3
VDV501-770-1390677ART Scout Pro Max Manual.indd 3
Pro Max also measures cable lengths (via TDR), tests
®
WARNINGS
Pro Max. Visually
®
UKCA - United Kingdom Conformity Assessment

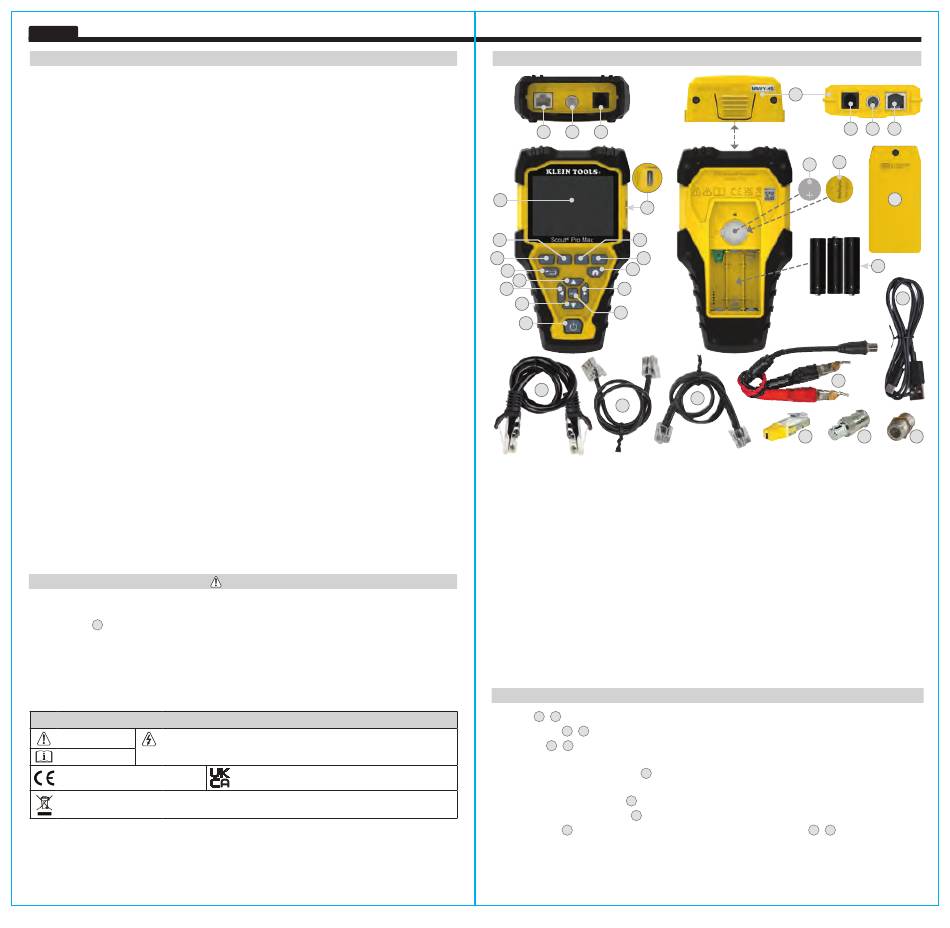

FEATURE DETAILS
15
16
17
2
26
5
6
4
7
14
13
8
10
11
9
12
3
19
20
1.
Self-Storing Test + Map™ ID Remote (VDV770-770)
1A.
Remote's RJ11/12 Port
1B.
Remote's RJ45 Port
1C.
Remote's Coax F-Connector Port
2.
Full-Color LCD Display
3.
Power Button
4.
"Soft Key" Button #1
5.
"Soft Key" Button #2
6.
"Soft Key" Button #3
7.
"Soft Key" Button #4
8.
Up Arrow Button
9.
Down Arrow Button
10.
Left Arrow Button
11.
Right Arrow Button
12.
Enter Button
13.
Back Button
14.
Home Button
PORT, REMOTE, AND CONNECTOR OVERVIEW
RJ45 Port
,
: Data cable (Shielded or unshielded), Ethernet cable, Cat5e, Cat6, Cat6a, Cat7, Cat7a.
1B
15
F-Connector Port
,
: Video cable, coaxial cable, RG6/RG6Q cable, RG59 cable.
1C
16
RJ11/12 Port
1A
,
17
: Voice cable, POTS (Plain-Old-Telephone-Service) cable, 4-wire cable, 6-wire cable, 2
twisted pair cable, 3 twisted pair cable, Cat3.
Self-Storing Test + Map™ ID Remote
: Use for cable identification, mapping and/or continuity testing.
1
Displays on tester as Remote ID #1.
LanMap™ Location ID Remote**
23
: Use for cable identification and/or mapping. Includes remotes #1 – 20.
CoaxMap™ Location ID Remote**
: Use for cable identification and/or mapping. Includes remotes #1 – 20.
24
Barrel Connector
: Female-to-female F-connector for use with F-connector port
25
*The RJ ports share internal connections so only one RJ cable can be connected at a time for accurate cable
test results. However, an RJ cable and a coax cable may be connected at the same time. In ID mode, all
connectors on the VDV Scout
Pro Max may be connected at the same time.
®
**Cannot be used to perform wire map or cable length tests.
1
1A
1C
29
30
CR2032
CR2032
22
21
23
24
15.
RJ45 Port*
16.
Coax F-Connector Port
17.
RJ11/12 Port*
18.
Battery Cover
19.
RJ45 CAT6 to RJ45 CAT6 Cable (T658B) (×2)
20.
RJ11 to RJ11 Cable (×2)
21.
RJ12 to RJ12 Cable (×2)
22.
Female Coax-F to Angled-Bed-of-Nails Cable
23.
RJ45 LanMap™ Location ID Remotes (1-20)
24.
F-Connector CoaxMap™ Location ID Remotes (1-20)
25.
Female F-Barrel Connector
26.
USB-C Port
27.
USB-C to USB-A Cable
28.
Main Alkaline Batteries (3× AA)
29.
Internal Clock Battery Cover
30.
Internal Clock Battery (CR2032)
,
.
1C
16
8/20/2024 6:44:22 PM
8/20/2024 6:44:22 PM
1B
18
28
27
25
3
