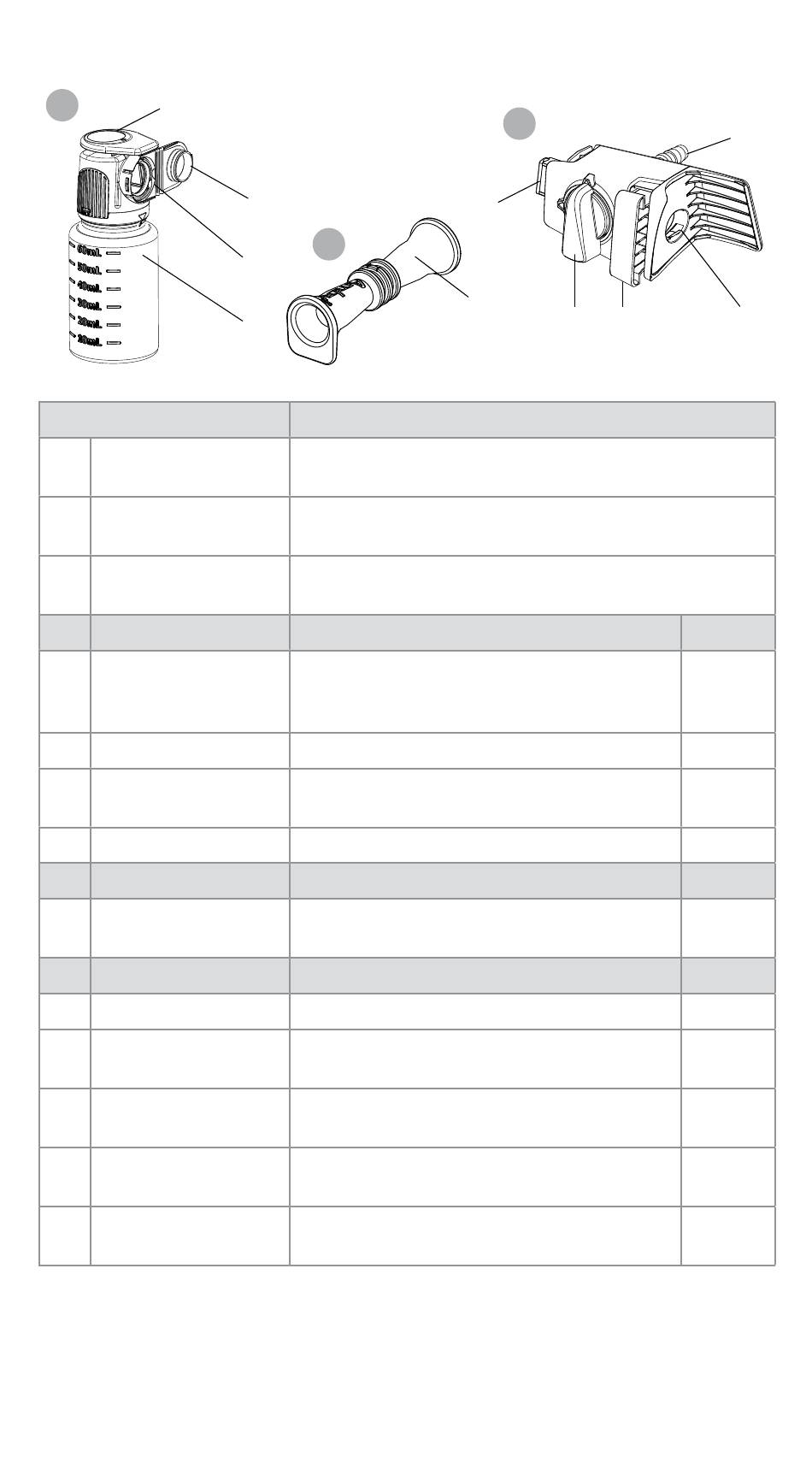

2.3. BronchoSampler 60 parts
A
1
A Sample container
B Suction adapter
C Sampler bridge
No. Item A
1 Flip top
2 Sample container lid
3 Connection interface
4 Sample container vial
No. Item B
5 Suction adapter
No. Item C
6 Suction connector
7 aScope™ 5 Broncho
connection interface
8 Attachment lock
9 Flow switch
10 Connection interface
6
2
B
3
4
Function
Connects to the sampler bridge and holds
the retrieved sample.
For connection between the suction connector and
a suction tube with male interface.
Connects to the aScope™ 5 Broncho and creates
a closed loop for sampling.
Functions
A click-on locking mechanism for the sample
container. Press down to disengage the locking
mechanism.
For closing and protecting the sample.
For connecting the sampler bridge and
sample container.
For storage of the sample.
Functions
For connection between the suction connector
and a suction tube with male interface.
Functions
For connection of suction tubing.
For introduction of the aScope™ 5 Broncho
suction connector to establish connection.
Locks the sampler bridge to
the aScope™ 5 Broncho.
Determines suction flow direction. Switch
between sampling and suction mode.
For connecting the sampler bridge and
sample container.
C
10
5
9
8
6
7
Material
PP
PP
Silicone
PP
SBC
Material
TPE
Material
PP
MABS
TPE
POM
POM
MABS
Silicone
