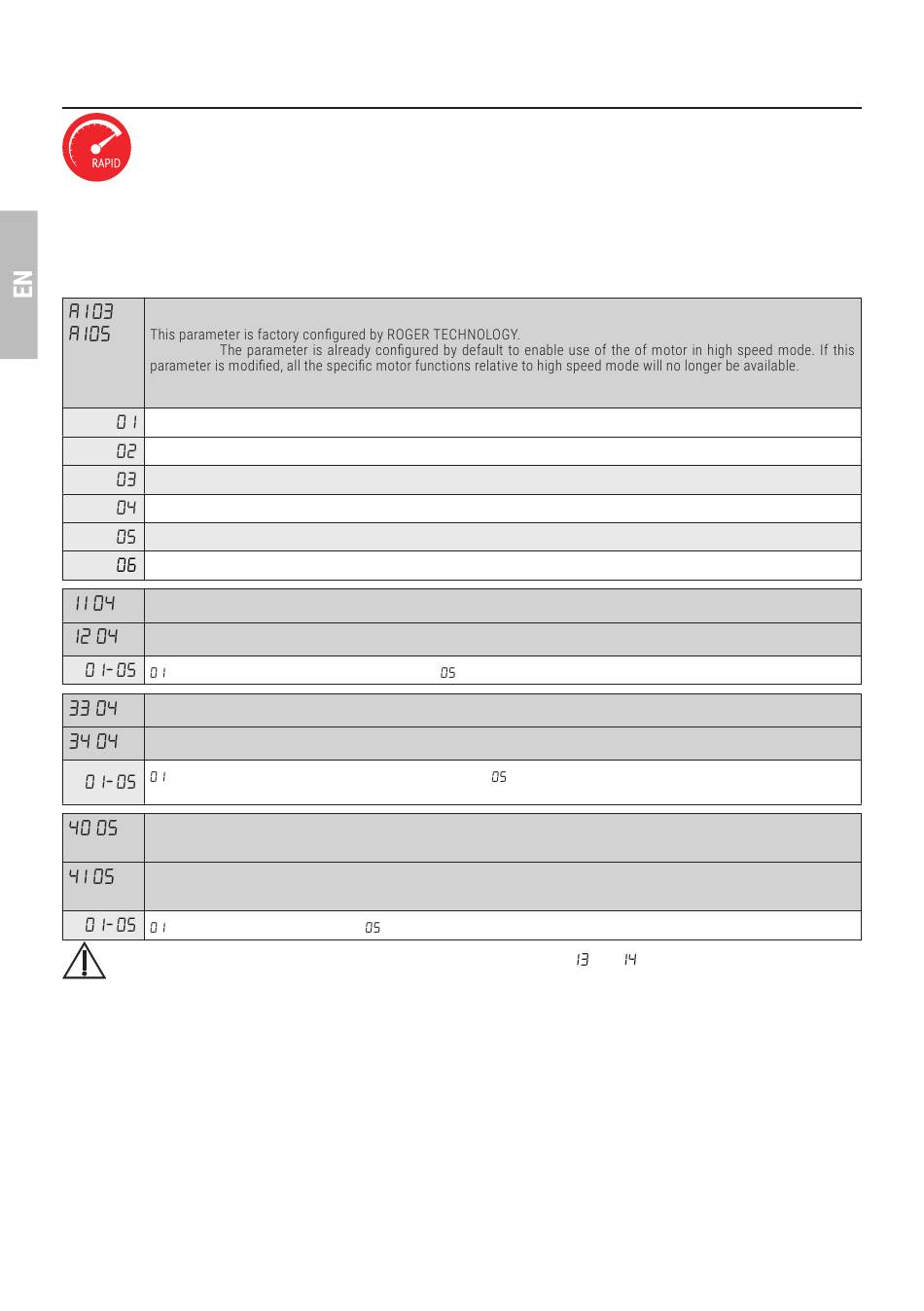

Special parameters for High Speed series
The High Speed series is a family of digital brushless high speed sliding motor units for sliding gates
weighing up to 600 kg (BH30/503/HS - BH30/504/HS - BH30/603/HS - BH30/604/HS) and up to 400 kg
(BM30/300/HS) and dedicated exclusively to residential applications.
High Speed technology makes it possible for the automation system to operate 100% faster than a
conventional system, and allows independent management of speed, acceleration, deceleration and the safety devices
used in the system.
Note: As the mechanics of the gate is unknown, to guarantee the maximum safety of the installation, we
recommended to use sensitive edges.
The additional parameters for enabling High Speed technology are indicated as follows.
Selecting automation system model
WARNING!
The automation system will no longer function effectively and it will not be possible to diagnose faults.
N.B.: in the event of a reset to restore the default parameters, this parameter must be set again manually.
BH30/603 - BH30/604
BH30/803- BH30/804
BH30/503/HS - BH30/504/HS - BH30/603/HS - BH30-604/HS
BM30/400
BM30/300/HS
BH30/804/R
Setting deceleration during opening
Setting deceleration during closing
= the gate decelerates near the limit switch ...
Setting start acceleration during opening
Setting start acceleration during closing
= the gate accelerates rapidly at start of manoeuvre ...
manoeuvre.
Setting opening speed (%)
N.B.: the speed setting range is subdivided into 5 equal segments.
Setting closure speed (%)
N.B.: the speed setting range is subdivided into 5 equal segments.
= 10 m/min (minimum speed) ...
N.B.: to set the constant speed deceleration space, see parameters
76
= the gate decelerates long before the limit switch.
= the gate accelerates slowly and progressively at start of
= 24 m/min (maximum speed).
and on chapter 12.
