9.2
Command and safety device status display mode

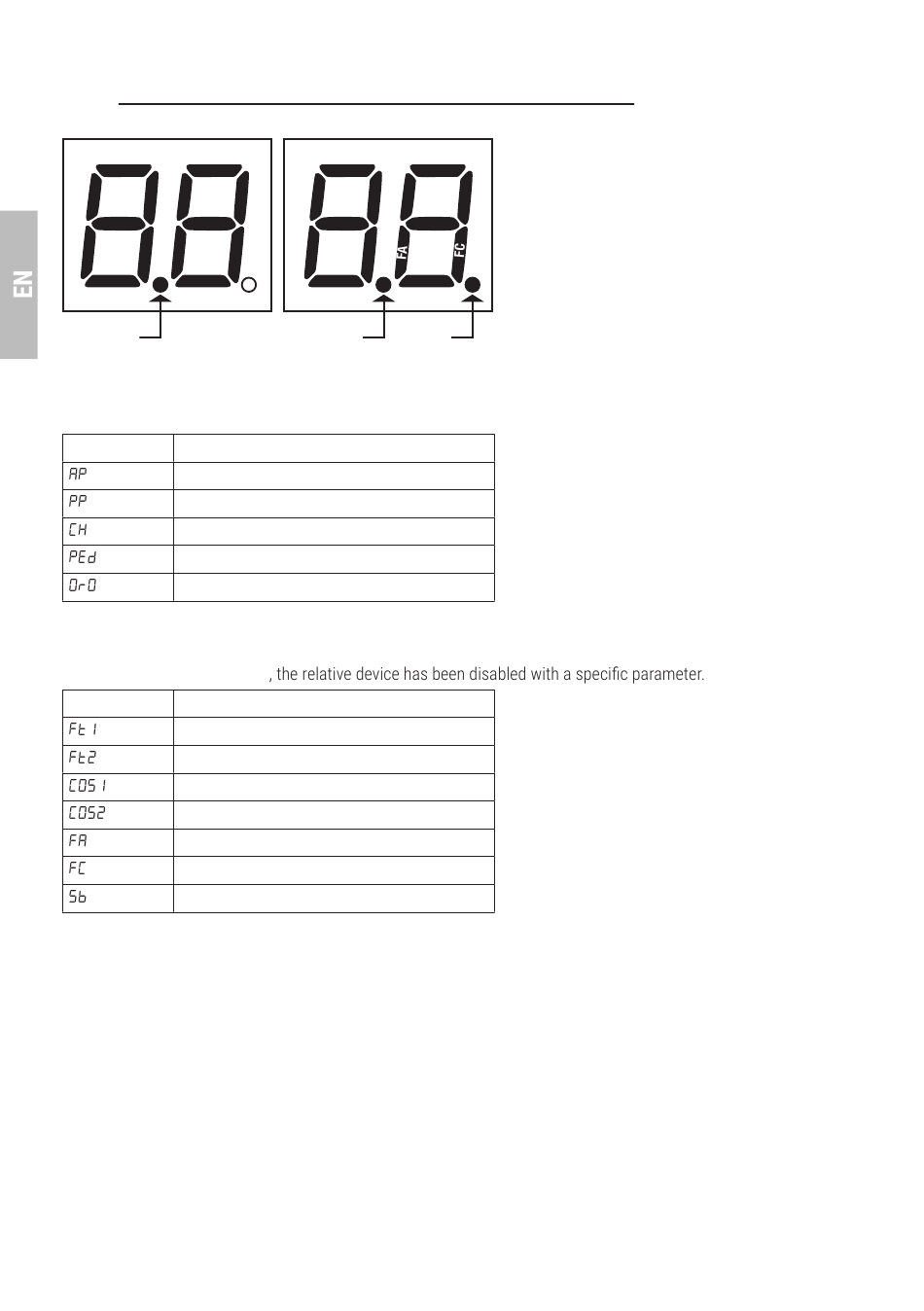

COMMAND STATUS
AP PED
PP
CH ORO
POWER
COMMAND STATUS:
The command status indicators on the display are normally OFF.
They ILLUMINATE when a command is received (e.g.: when a step mode command is received, the segment PP
illuminates).
SEGMENT COMMAND
open
step by step mode
close
partial opening
clock
SAFETY DEVICE STATUS:
The safety device status indicators on the display are normally ON.
If an indicator is OFF, the relative device is in alarm state or is not connected.
The an indicator is FLASHING
SEGMENT SAFETY
photocell
photocell
sensing edge
sensing edge
gate open limit switch
gate closed limit switch
release handle open
62
SAFETY DEVICE STATUS
FT1 FT2
COS1
COS2
SB STOP
