Additional demand: To build the model you need
some accessories that are not included in the kit:
Order-No. 60102, 1 kg Iron shot
Order-No. 83009, Pine strip 3x10x1000 mm (2
pcs.) or similar
Servo extension cable 2x
Pair of antenna plugs 1x
Tesa crepe
Pore filler 200 ml
Silk or matt lacquer
For the visual enrichment of your Alexandra we
recommend:
Order-No. 20283: Fittings Set Alexandra
Consisting of: 1 compass, 2 lamps, 1 boatswain, 3
pairs of side fenders, 1 bow fender
To build your Alexandra you will still need the
following adhesives:
UHU Holz wasserfest, Order-No. 48510: A good
quality waterproof white glue.
Roket hot, Order-No. 44050: The cyano-
adhesive with enormous adhesive strength and
shortest curing times.
UHU allplast, Order-No. 48410: The one-
component adhesive, specially developed for
bonding wood with ABS
Epoxi-Rapid, Order-No. 80476: A 5 minute
epoxy of the best quality.
Stabilit
Express,
component adhesive that bonds ABS well.
UHU plus endfest 300, Order-No. 45670: Slow
curing, for ballast
Silicone sealant transparent
No glue instructions are mentioned in the
assembly instructions at normal gluing points. You
are free to choose the glue that suits you best.
Only at special gluing points is a corresponding
note indicated.
In general, you should cleanly smooth all wooden
parts after gluing and paint them three times with
pore filler that is not too thick. Each coat is sanded
with fine sandpaper after it has dried to remove
any wood fibres that stick up. The final coat of
matt or silk matt clear varnish is applied only after
the model has been completed.
The construction plan is provided with part
numbers. Follow these numbers according to the
building instructions.
Start with the boat stand, which consists of parts 1
to 4. Glue the parts at an angle, sand everything
and paint as described above.
Order-No.
ro5015:

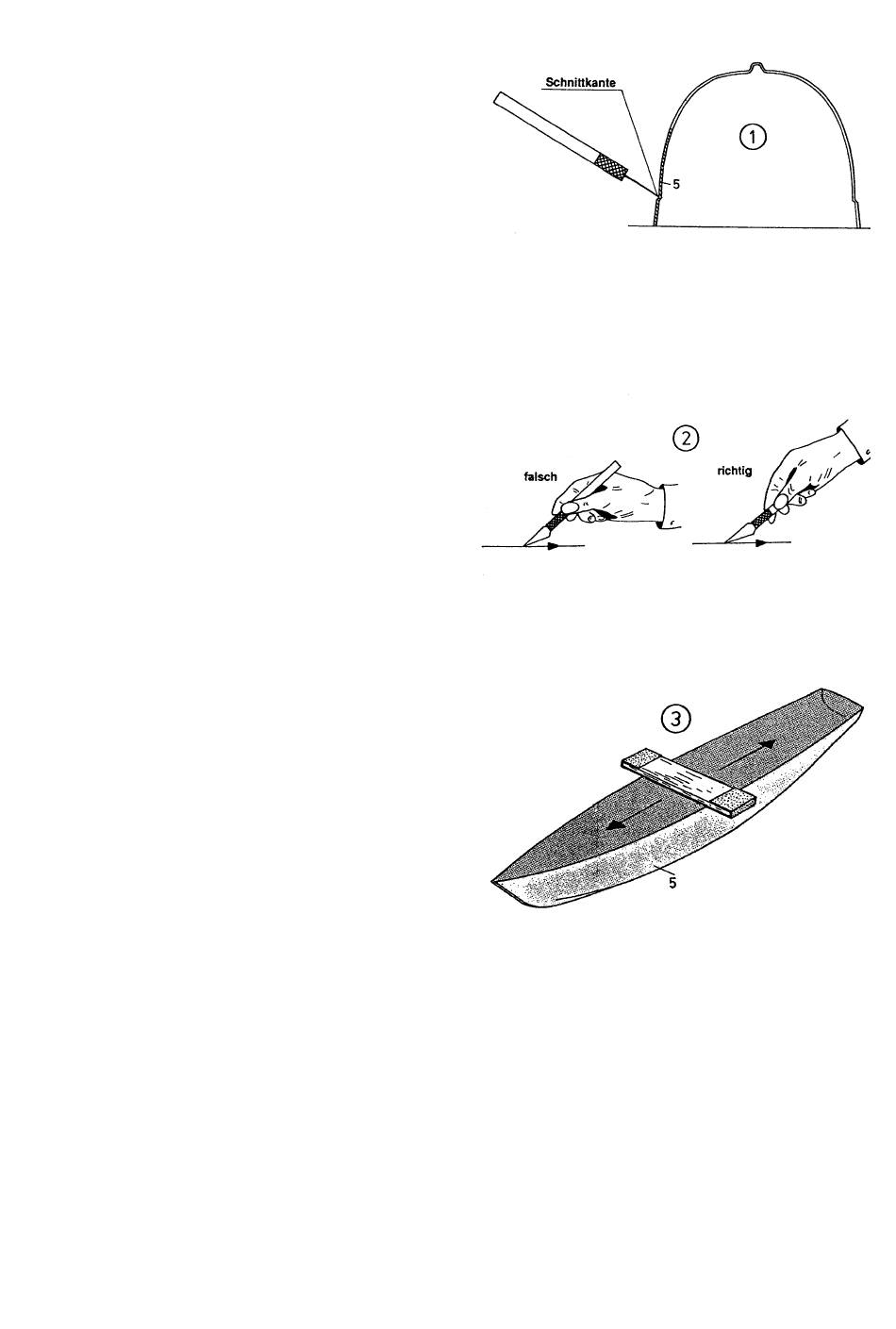

Cut out the hull 5 at the line visible on the outside
with a sharp, pointed knife according to fig. 1 and
2. To do this, carefully, without pressing too hard,
score the ABS five or six times at the designated
line, cut vertically at the ends down to the cut and
break off the plastic by carefully bending it back
and forth.
To sand the hull, make a sandpaper file from a
scrap piece of plywood (approx. 50x300 mm) and
sandpaper, grit 100, and sand the edges smooth
lengthwise as shown in Fig, 3.
Two-
Draw a pencil line on the inside edge of the hull, 3
mm inwards from the cut edge, as shown in Fig.
4, to indicate the gluing position for the support
strips 6 and 7.
Seite 2
© Krick Modelltechnik, Germany, Dezember 2021
