Part 2- Mechanical Installation
STEP 12 Installing Acrylic Baffle
What you will need
(2) Acrylic Baffle (8) M5×10mm Rounded Hex Screw (8) 20 M5 T-nut
3 3mm Allen Wrench
18 21 24

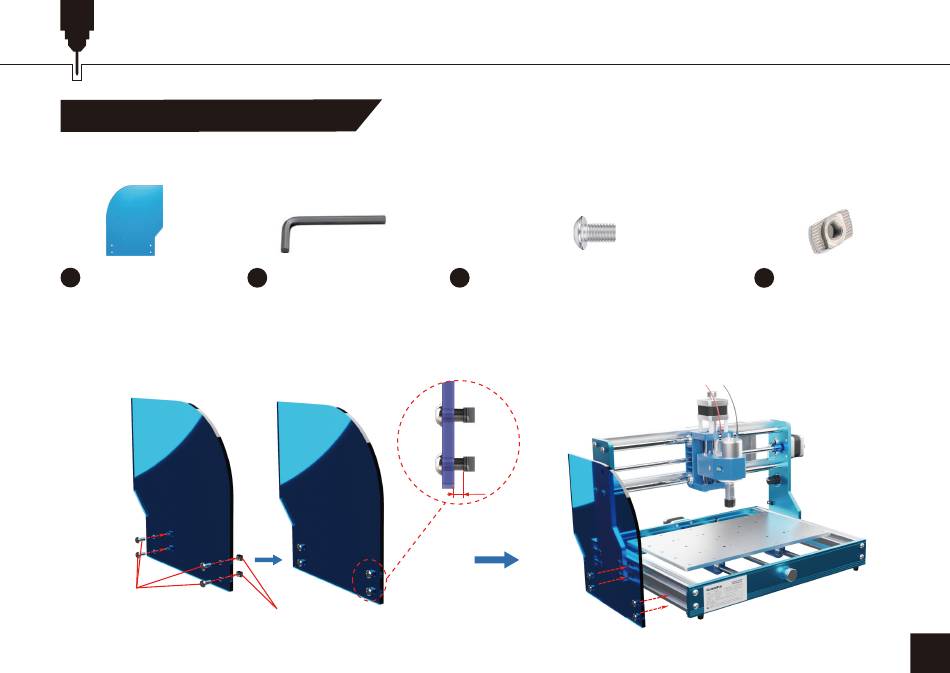

1. Insert the M5*10mm bolts from the outside of the baffle cover. Then place the T-Slot nut onto the bolt from the other
side using your hand turning once, do not tighten. Keep them loose for now. Orient the T-Slot nuts horizontally (Note that
the distance between the T-nut and the acrylic shield should be 2-3mm after screwing in).
2-3mm
M5×10mm
Rounded Hex Screw 20 M5 T-nut
