Part 2- Mechanical Installation
STEP 1 Securing the XY Axis Lead Screw Holder
What you will need
XY-axis Base Assembly
1
1. Flip the XY-axis base assembly upside down and remove the cable ties securing the assembly.

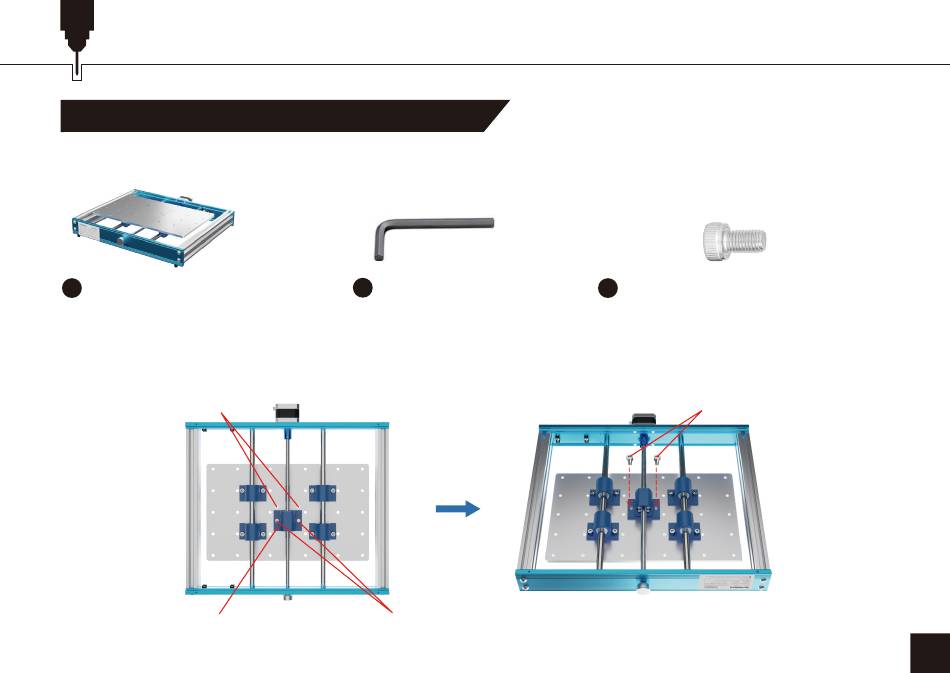

2. Move the aluminum platform to align the screw holes on the lead screw holder and tighten the holder with (2) M6×10mm
hex socket cap screws. Refer to the diagram below.
Screw Holes on
Aluminum Platform
Lead Screw Holder
5mm Allen Wrench
18
Screw Holes on the
Lead Screw Holder
(2) M6×10mm Hex Socket Cap Screw
22
(2) M6×10mm
Hex Socket Cap Screw
