Part 2- Mechanical Installation

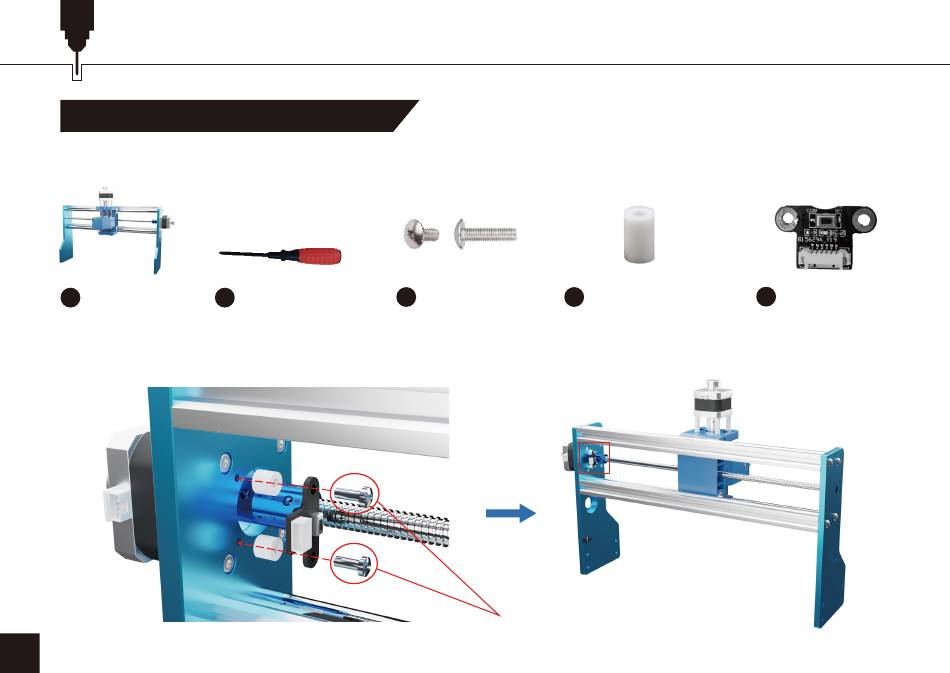

STEP 5 Installing X-axis Limit Switch
What you will need
XZ Axis
2
Assembly
1. M3×7mm PCB isolation column to mount the limit switch to the X-axis plate on the stepper motor side.
14
Phillips Wrench
12
Rounded Screw
20 23
(2) M3×8mm
(2) M3×14mm
M3×14mm Rounded Screw
(2) M3×7mm PCB
25
Isolation Column
(2) Limit Switch
