Part 2- Mechanical Installation

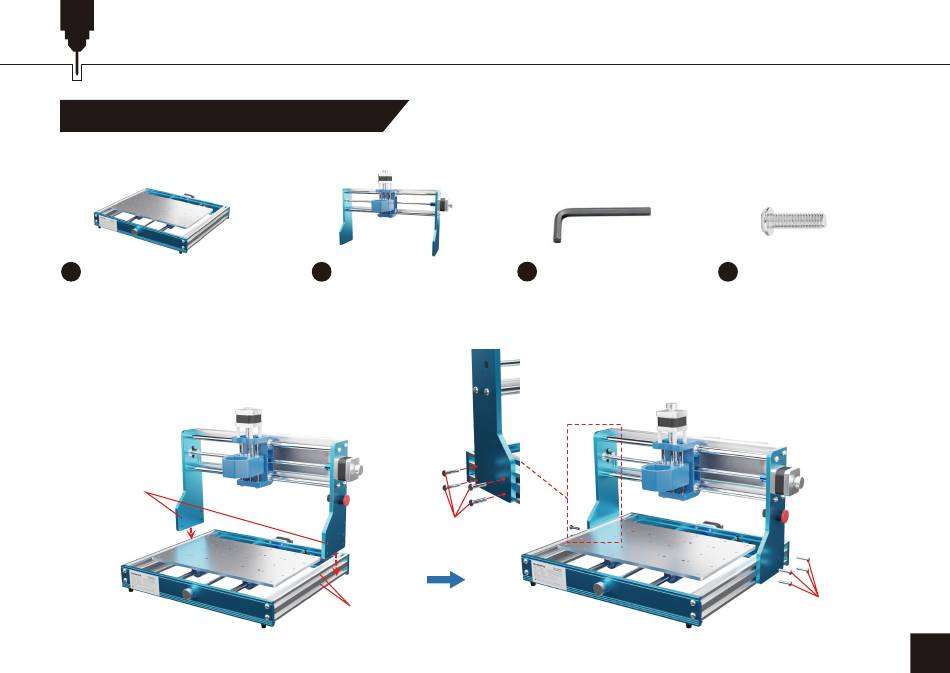

STEP 9 Installing XZ Axis Assembly
What you will need
XY Axis Base Assembly
1
1. Use the (8) M5x22mm rounded hex screws to align the XY Axis base assembly and the XZ Axis assemble. Refer to
the images below for reference.
X-axis
Plate Hole
XZ Axis Assembly
2
M5×22mm
Rounded Hex Screw
Screw Hole
18 3mm Allen Wrench
(8) M5×22mm
21
Rounded Hex Screw
M5×22mm
Rounded Hex Screw
21
