Part 2- Mechanical Installation
STEP 8 Installing Control Board
What you will need
XZ Axis
2 9
Assembly

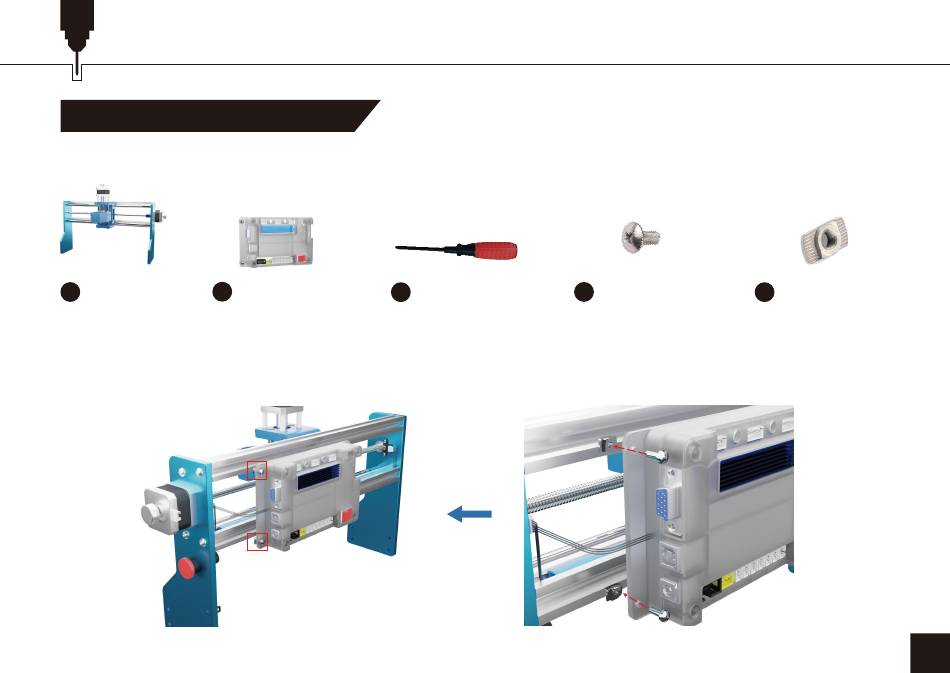

1. Tighten the (4) M3×8mm rounded screw through the control board mount points as shown, then tighten to the T-nuts.
Tip: It is easier to twist the T-nut onto 1 thread of the screw as shown on the image below to the left. Align T-Nuts
horizontally to slide into the channel.
Control Board Phillips Wrench
12
(4) M3×8mm
20
Rounded Screw
(4) 20 M3 T-nut
24
