Part 2- Mechanical Installation

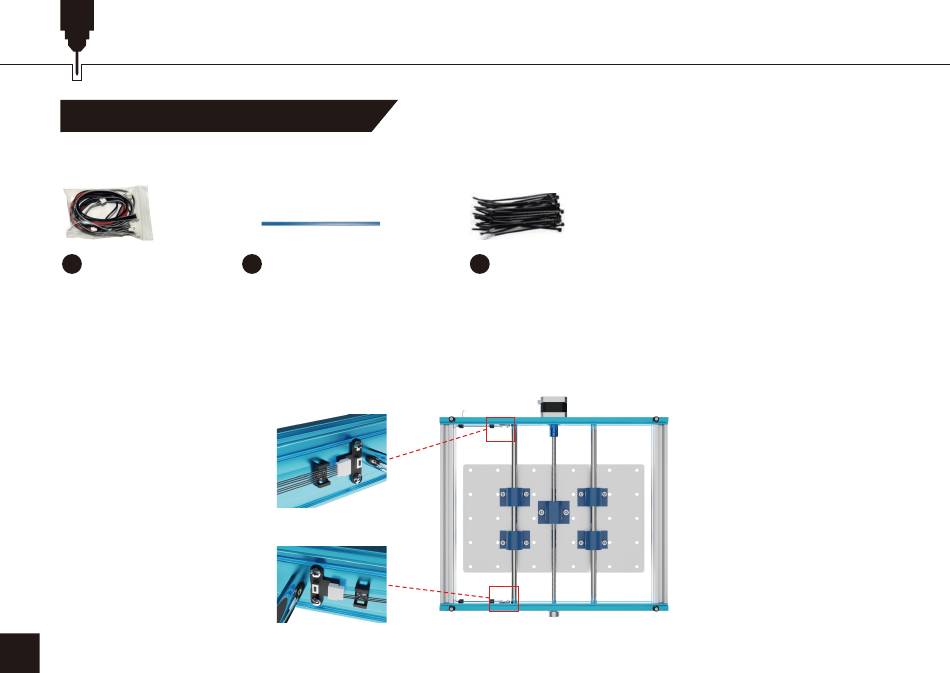

STEP 4 Wiring Y-axis Limit Switch
What you will need
Wire Pack 270mm Profile Seal Cable Tie
11 13 17
1. Prepare the 410 & 430mm Y-axis limit switch cable from the wire pack.
2. Connect the "6-wire 6-pin" terminal to the limit switch on the rear module.
3. Connect the longer wire (430mm) "3-wire 6-pin" terminal to the limit switch on the front module.
Tip: The Shorter cable (410mm) needs to be connected to the control board. It is recommended to connect it after
the installation of the control board is completed.
6-wire 6-pin
3-wire 6-pin
