Part 2- Mechanical Installation

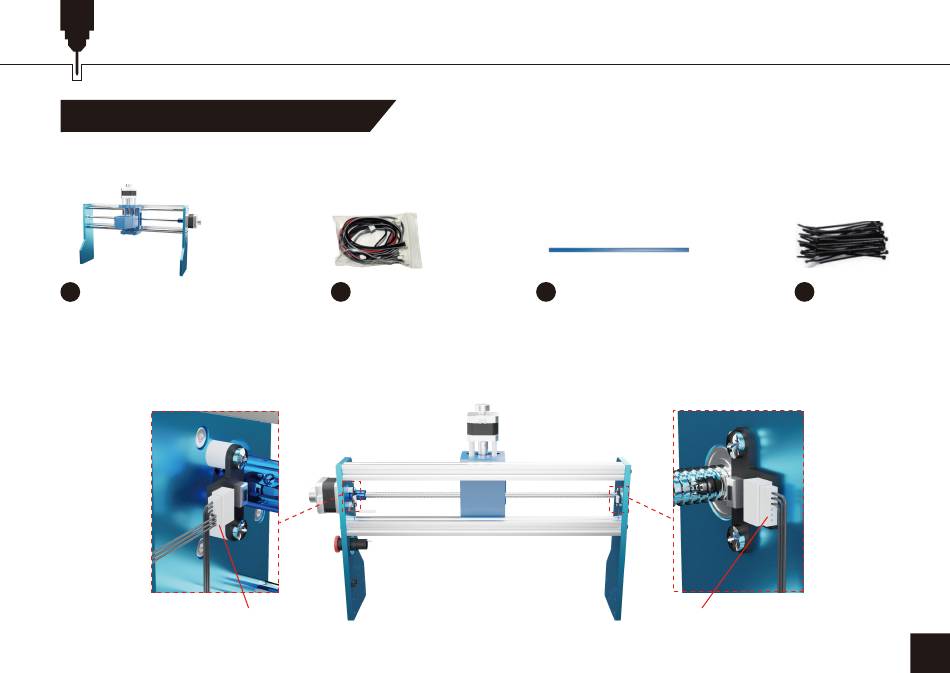

STEP 7 Wiring X-axis Limit Switch
What you will need
XZ Axis Assembly Wire Pack 340mm Profile Seal Cable Tie
2 11 13 17
1. Prepare the 415 &170mm X-axis limit switch cable from the wire pack.
2. Connect the "6-wire 6-pin" terminal to the limit switch on the X-axis plate with the electric motor.
3. Connect the "3-wire 6-pin" terminal to the limit switch on the other X-axis plate.
6-wire 6-pin 3-wire 6-pin
