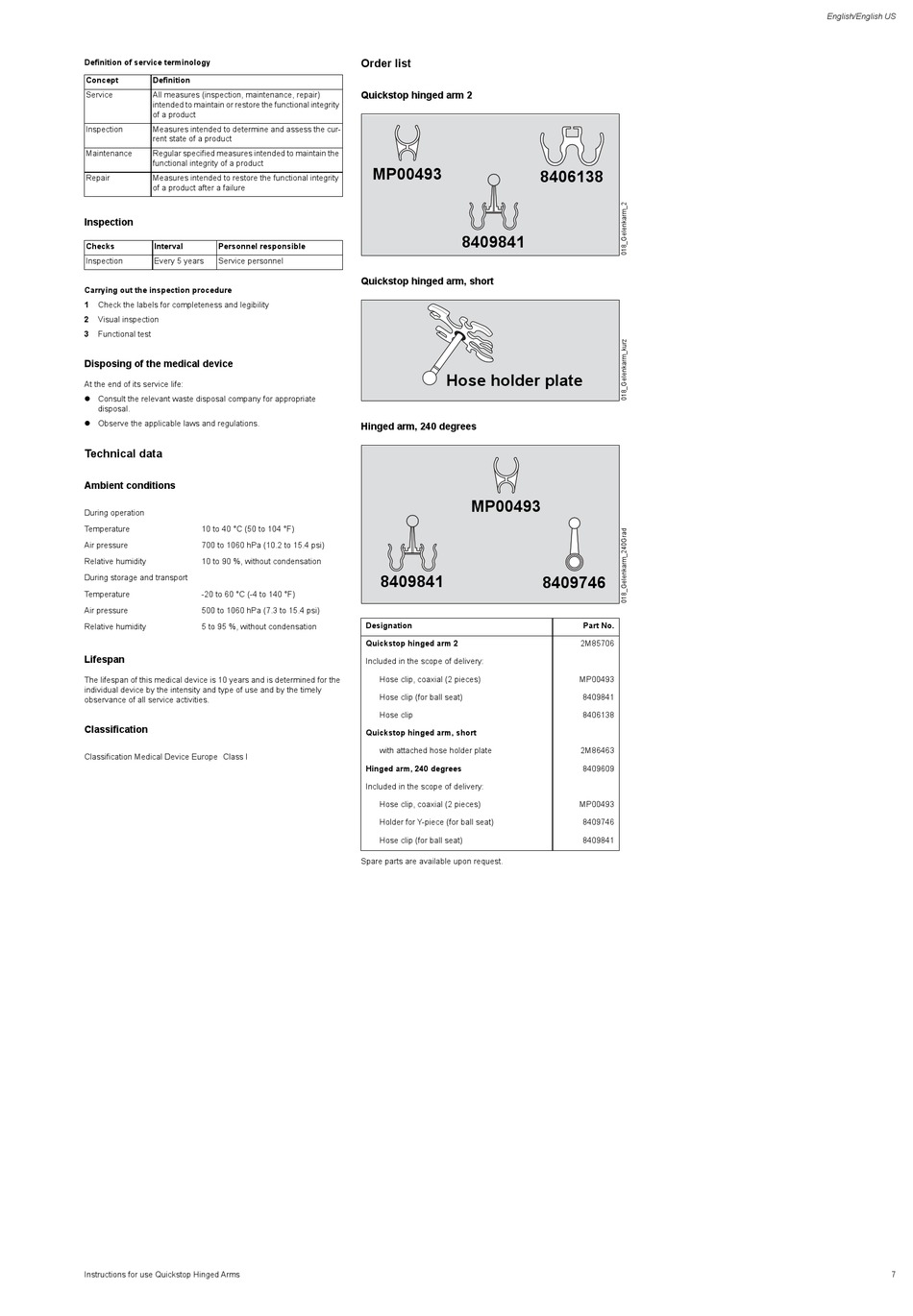

Definition of service terminology
Concept Definition
Service All measures (inspection, maintenance, repair)
intended to maintain or restore the functional integrity
of a product
Inspection Measures intended to determine and assess the cur-
rent state of a product
Maintenance Regular specified measures intended to maintain the
functional integrity of a product
Repair Measures intended to restore the functional integrity
of a product after a failure
Inspection
Checks Interval Personnel responsible
Inspection Every 5 years Service personnel
Carrying out the inspection procedure
1 Check the labels for completeness and legibility
2 Visual inspection
3 Functional test
Disposing of the medical device
At the end of its service life:
 Consult the relevant waste disposal company for appropriate
disposal.
 Observe the applicable laws and regulations.
Technical data
Ambient conditions
During operation
Temperature 10 to 40 °C (50 to 104 °F)
Air pressure 700 to 1060 hPa (10.2 to 15.4 psi)
Relative humidity 10 to 90 %, without condensation
During storage and transport
Temperature -20 to 60 °C (-4 to 140 °F)
Air pressure 500 to 1060 hPa (7.3 to 15.4 psi)
Relative humidity 5 to 95 %, without condensation
Lifespan
The lifespan of this medical device is 10 years and is determined for the
individual device by the intensity and type of use and by the timely
observance of all service activities.
Classification
Classification Medical Device Europe Class I
Instructions for use Quickstop Hinged Arms
Order list
Quickstop hinged arm 2
MP00493
8409841
Quickstop hinged arm, short
Hose holder plate
Hinged arm, 240 degrees
MP00493
8409841
Designation
Quickstop hinged arm 2
Included in the scope of delivery:
Hose clip, coaxial (2 pieces)
Hose clip (for ball seat)
Hose clip
Quickstop hinged arm, short
with attached hose holder plate
Hinged arm, 240 degrees
Included in the scope of delivery:
Hose clip, coaxial (2 pieces)
Holder for Y-piece (for ball seat)
Hose clip (for ball seat)
Spare parts are available upon request.
8406138
8409746
Part No.
2M85706
MP00493
8409841
8406138
2M86463
8409609
MP00493
8409746
8409841
