528050-6 / 528050-5

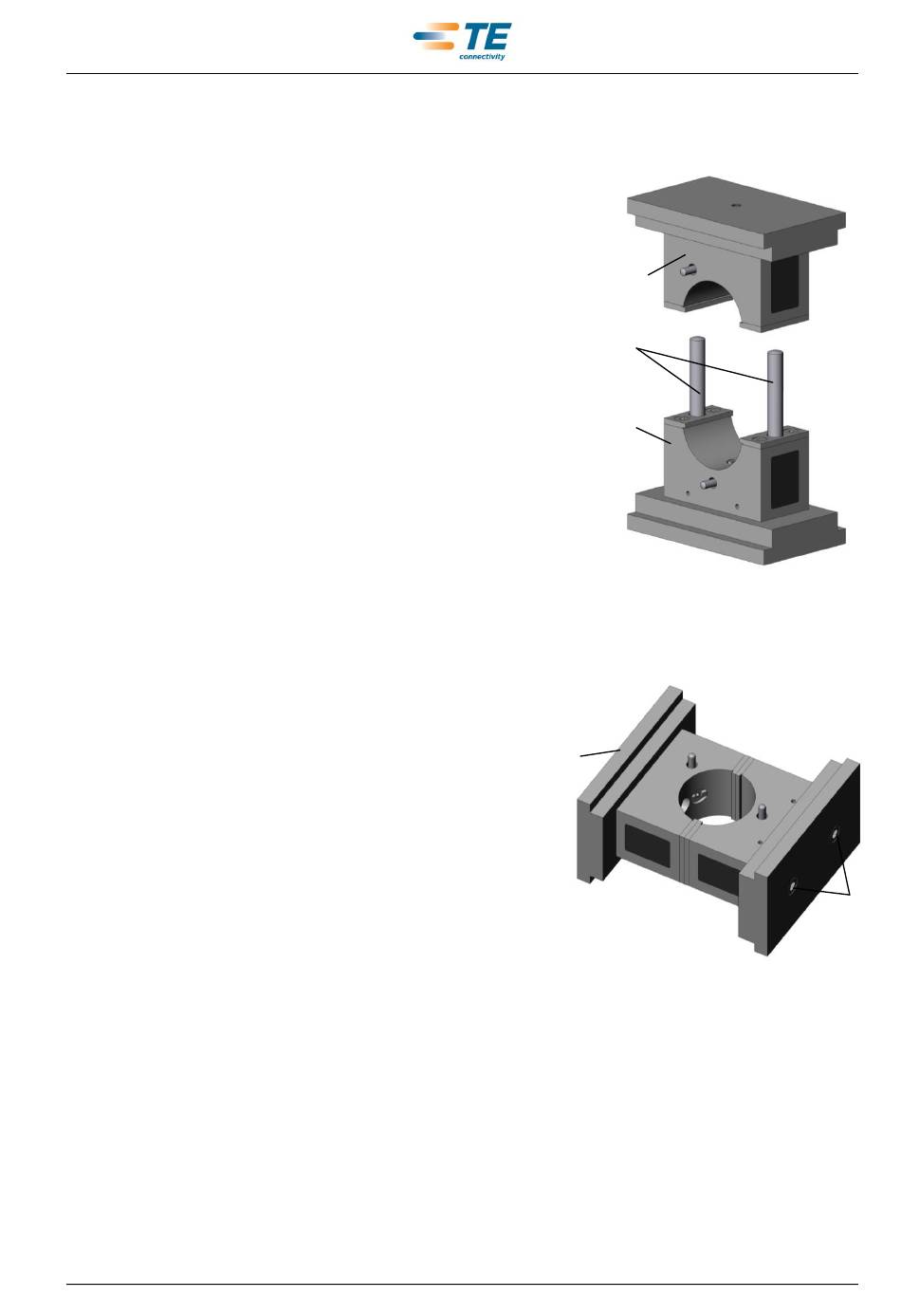

Assembling of the complete adapter upper and lower part
1. Slide the upper part of the adapter (7) centered on the guide bolts
(8) of the lower part of the adapter (9). Pay attention that the the
upper and lower part of the adapter is fitted correctly. On the front
of the adapter are labels which will help you to check the correct
assembling.
2. Align the adapters to the guide plates by laying the assembly
on its side.
3. Tighten the 3 fixing screws (3)/(6) firmly.
Seite / Page / Página 99 / 232
7
8
9
3
ECOC: EGC0 ; LOC: AI
412-18954 Rev. F
Fig. 8.06
6
Fig. 8.07
