528050-6 / 528050-5
6.4.3

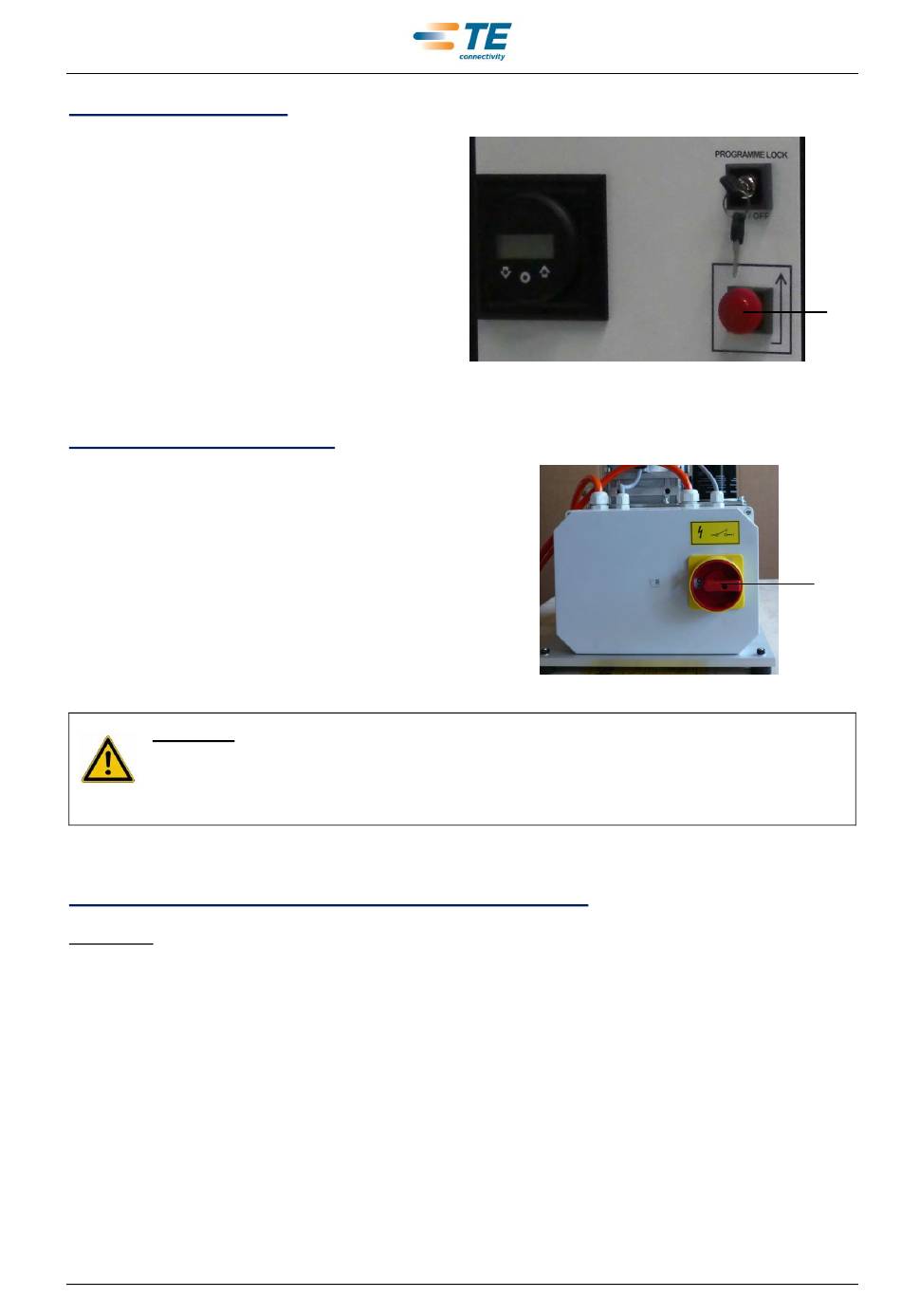

Release Button

In case of jammed jaws caused by operation or
handling errors or wrongly placed terminals the
jaws can be opened as follows:
- Press Release Button.
6.4.4

Electric main switch

The hydraulic unit has an electric main switch (6). By
operating the electric main switch (6) the machine can be
completely disconnected from the power supply system.
The adjustment of the electric main switch (6) could be
identified through the pictogram.
CAUTION!
 The hydraulic aggregate has to be placed near the hydraulic Crimp Machine AT-66,
so that the electric main switch is always in the reaching area of the hands of the
user.
6.5

Technical Data hydraulic crimp machine AT-66

Dimension:
Length:
Width:
Height:
Crimp Force:
Stroke-Head Travel:
Measuring Tolerance:
Weight Complete:
(incl. hydraulic unit/foot switch)
Noise Level:
Crimp Cycle Speed:
Electrical Connection:
290 mm
220 mm
510 mm
150 kN
40 mm
+/- 0.020 mm
approx. 135 kg (approx. 300 lbs)
69 dB(A)
Minimum 7 Seconds (without back stroke limitation)
400V/50Hz 3-phase 16A - EMEA
230V/60Hz 3-phase 16A - USA
Seite / Page / Página 93 / 232
412-18954 Rev. F
4
Fig. 6.10
6
Fig. 6.11
