Installation and Connection
3.
Installation and Connection
3.1
Control cabinet installation
Protective system (EN 60529)
Operation temperature
Storage temperature
Max. heat sink temperature
Climatic category (EN 60721-3-3)
Environment (IEC 664-1)
Vibration/shock (EN 60721-3-3)
Contamination (EN 60721-3-3):
The flat-rear design requires cooling measures by the machine
builder. This can be in the best case no further measure at all (e.g. at
cyclic operation with down times) up to the dissipation of the entire,
indicated heat loss at rated operation.
3.2

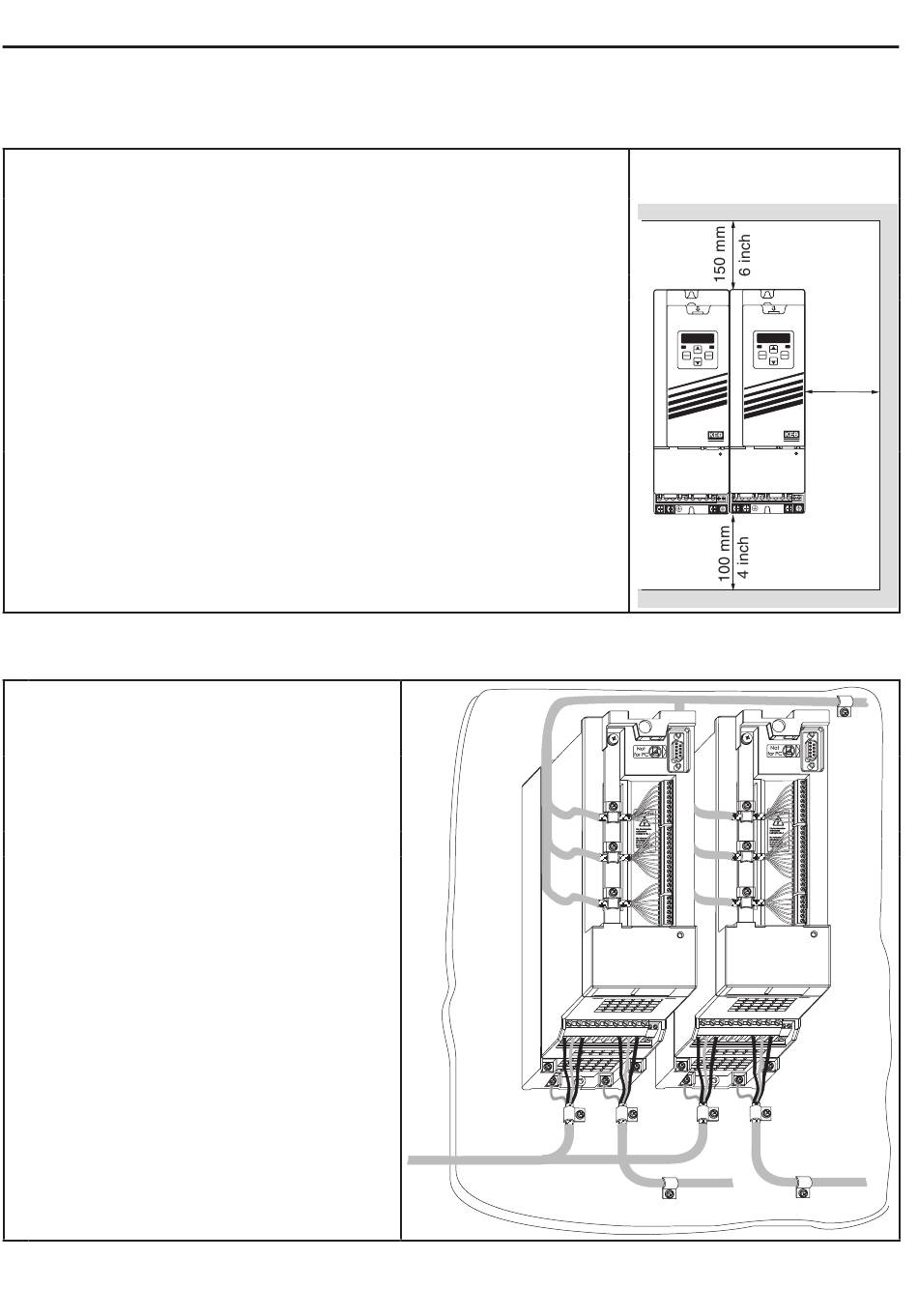

EMC-conform Installation
• Always apply the shielding of motor
and control cables over a large contact
surface on both sides.
• Distance between control and power
cables at least 10...20 cm (4...8 inch).
• Lay motor and power cable separately.
• If it cannot be avoided, cross control
and power cables in a right angle.
• Install all cables as close as possible
to the mounting plate - ideal in a metal
cable duct.
• Mount COMBIVERT well conducting
with the mounting plate. Remove the
paint beforehand.
You can find further instructions regarding
the EMC-conform wiring in the Internet
at KEB.
GB - 10
-10...45 °C (14...113 °F)
-25...70 °C (-13...158 °F)
90 °C (194 °F)
Pollution degree 2
German. Lloyd Part 7-3;
Train EN 50155
Gas: 3C2; solids: 3S2
Installation position and
min. distances
IP20
3K3
3M1;
START
ENTER
FUNC.
F/R
SPEED
STOP
ANTRIEBSTECHNIK
START
ENTER
FUNC.
F/R
SPEED
STOP
30 mm
1 inch
ANTRIEBSTECHNIK
