Product Description
With input rated voltage of 480 Vac no braking resistor shall be connected at control type "BASIC". The
operating threshold of the braking resistor (Pn.69) must be adjusted at least to 770 Vdc for all other
controls (see annex).
2.4

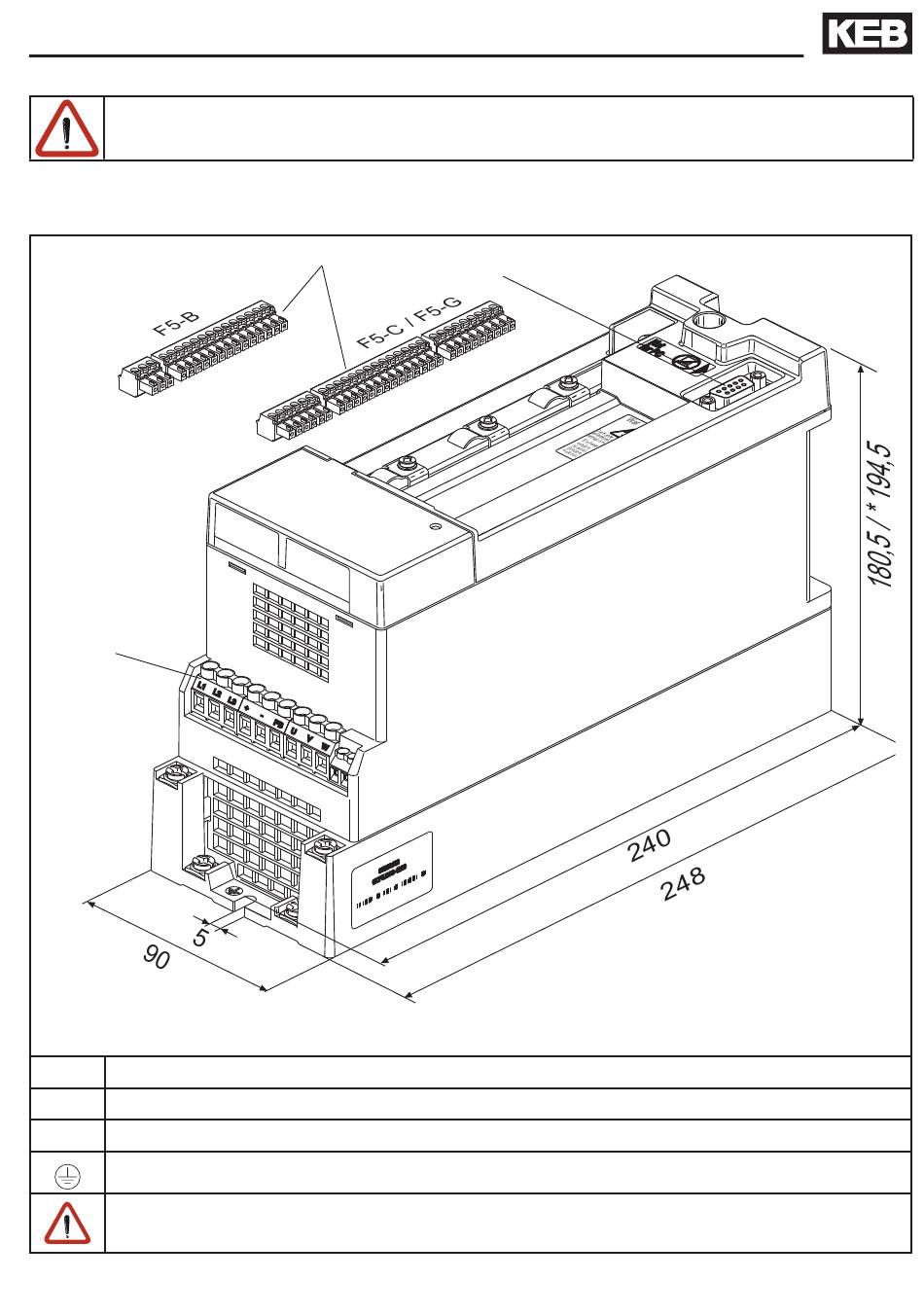

Dimensions and Terminals
X1A
X1A
Connection for mains voltage, motor, braking resistor and temperature detection
X2A
Connection for control lines
X4A
Connection for operator or HSP5 service cable
Connection for shielding / earthing
Pay attention to the input voltage, since 230V and 400V class (3-phase) are possible!
X2A
X4A
* with Operator
GB - 9
