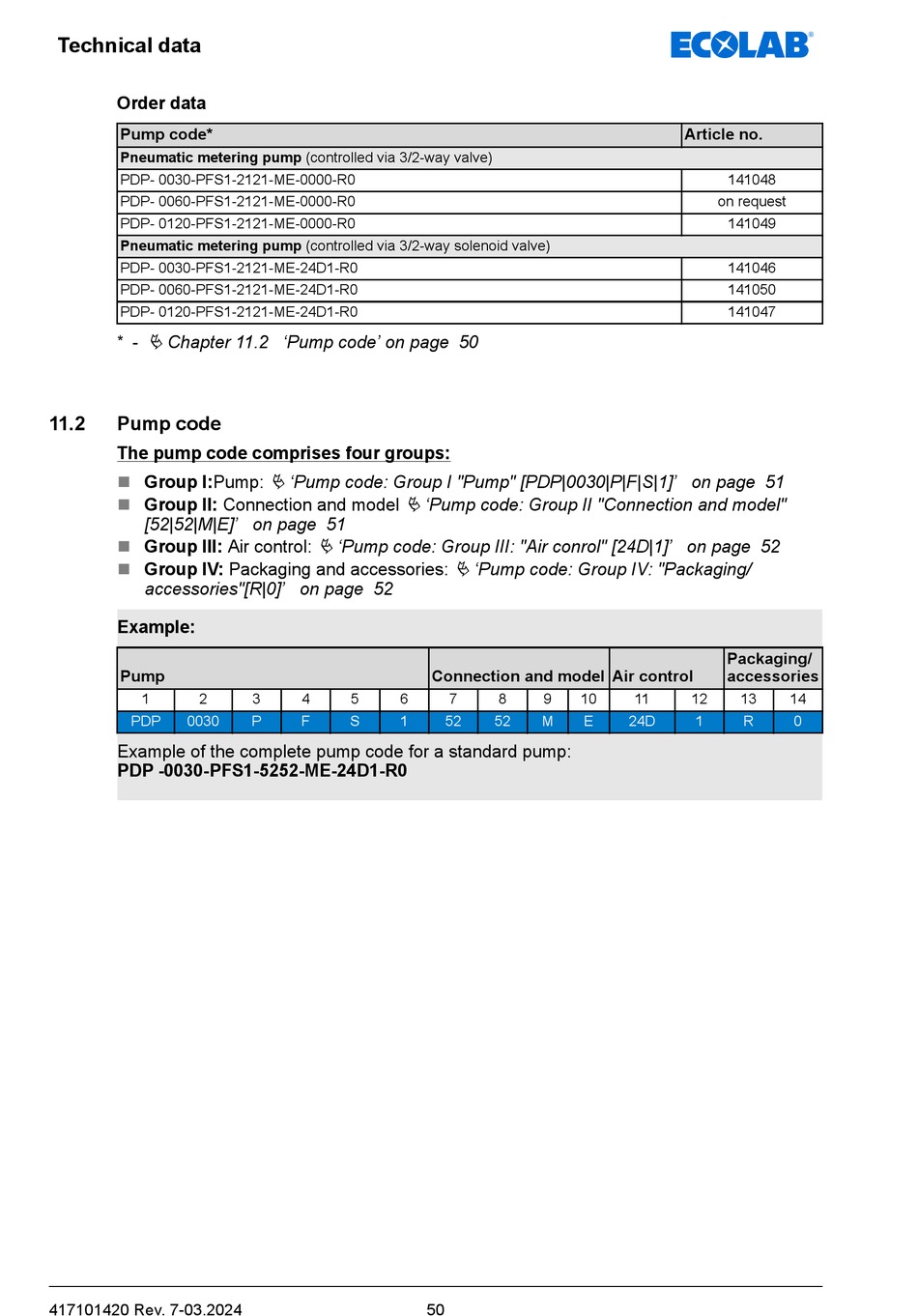

Technical data
Order data
Pump code*
Pneumatic metering pump (controlled via 3/2-way valve)
PDP- 0030-PFS1-2121-ME-0000-R0
PDP- 0060-PFS1-2121-ME-0000-R0
PDP- 0120-PFS1-2121-ME-0000-R0
Pneumatic metering pump (controlled via 3/2-way solenoid valve)
PDP- 0030-PFS1-2121-ME-24D1-R0
PDP- 0060-PFS1-2121-ME-24D1-R0
PDP- 0120-PFS1-2121-ME-24D1-R0
* -
Ä Chapter 11.2 'Pump code' on page 50
11.2
Pump code
The pump code comprises four groups:
Group I:Pump:
n
Group II: Connection and model
n
[52|52|M|E]' on page 51
Group III: Air control:
n
Group IV: Packaging and accessories:
n
accessories"[R|0]' on page 52
Example:
Pump
1
2
PDP
0030
Example of the complete pump code for a standard pump:
PDP -0030-PFS1-5252-ME-24D1-R0
417101420 Rev. 7-03.2024
Ä 'Pump code: Group I "Pump" [PDP|0030|P|F|S|1]' on page 51
Ä 'Pump code: Group II "Connection and model"
Ä 'Pump code: Group III: "Air conrol" [24D|1]' on page 52
3
4
5
6
P
F
S
1
Ä 'Pump code: Group IV: "Packaging/
Connection and model Air control
7
8
9
10
52
52
M
E
50
Article no.
141048
on request
141049
141046
141050
141047
Packaging/
accessories
11
12
13
14
24D
1
R
0
