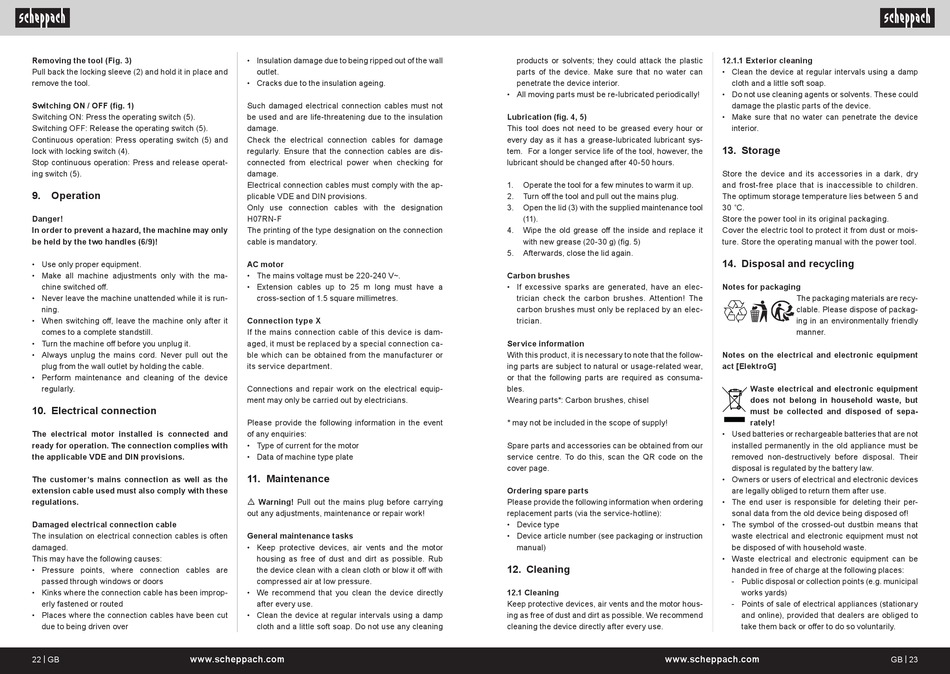

Scheppach AB2000 Originalbetriebsanleitung Seite 12

Removing the tool (Fig. 3)
Pull back the locking sleeve (2) and hold it in place and
remove the tool.
Switching ON / OFF (fig. 1)
Switching ON: Press the operating switch (5).
Switching OFF: Release the operating switch (5).
Continuous operation: Press operating switch (5) and
lock with locking switch (4).
Stop continuous operation: Press and release operat-
ing switch (5).
9. Operation
Danger!
In order to prevent a hazard, the machine may only
be held by the two handles (6/9)!
• Use only proper equipment.
• Make all machine adjustments only with the ma-
chine switched off.
• Never leave the machine unattended while it is run-
ning.
• When switching off, leave the machine only after it
comes to a complete standstill.
• Turn the machine off before you unplug it.
• Always unplug the mains cord. Never pull out the
plug from the wall outlet by holding the cable.
• Perform maintenance and cleaning of the device
regularly.
10. Electrical connection
The electrical motor installed is connected and
ready for operation. The connection complies with
the applicable VDE and DIN provisions.
The customer's mains connection as well as the
extension cable used must also comply with these
regulations.
Damaged electrical connection cable
The insulation on electrical connection cables is often
damaged.
This may have the following causes:
• Pressure points, where connection cables are
passed through windows or doors
• Kinks where the connection cable has been improp-
erly fastened or routed
• Places where the connection cables have been cut
due to being driven over
22 | GB www.scheppach.com
• Insulation damage due to being ripped out of the wall
outlet.
• Cracks due to the insulation ageing.
Such damaged electrical connection cables must not
be used and are life-threatening due to the insulation
damage.
Check the electrical connection cables for damage
regularly. Ensure that the connection cables are dis-
connected from electrical power when checking for
damage.
Electrical connection cables must comply with the ap-
plicable VDE and DIN provisions.
Only use connection cables with the designation
H07RN-F
The printing of the type designation on the connection
cable is mandatory.
AC motor
• The mains voltage must be 220-240 V~.
• Extension cables up to 25 m long must have a
cross-section of 1.5 square millimetres.
Connection type X
If the mains connection cable of this device is dam-
aged, it must be replaced by a special connection ca-
ble which can be obtained from the manufacturer or
its service department.
Connections and repair work on the electrical equip-
ment may only be carried out by electricians.
Please provide the following information in the event
of any enquiries:
• Type of current for the motor
• Data of machine type plate
11. Maintenance
m Warning! Pull out the mains plug before carrying
out any adjustments, maintenance or repair work!
General maintenance tasks
• Keep protective devices, air vents and the motor
housing as free of dust and dirt as possible. Rub
the device clean with a clean cloth or blow it off with
compressed air at low pressure.
• We recommend that you clean the device directly
after every use.
• Clean the device at regular intervals using a damp
cloth and a little soft soap. Do not use any cleaning
products or solvents; they could attack the plastic
parts of the device. Make sure that no water can
penetrate the device interior.
• All moving parts must be re-lubricated periodically!
Lubrication (fig. 4, 5)
This tool does not need to be greased every hour or
every day as it has a grease-lubricated lubricant sys-
tem. For a longer service life of the tool, however, the
lubricant should be changed after 40-50 hours.
1. Operate the tool for a few minutes to warm it up.
2. Turn off the tool and pull out the mains plug.
3. Open the lid (3) with the supplied maintenance tool
(11).
4. Wipe the old grease off the inside and replace it
with new grease (20-30 g) (fig. 5)
5. Afterwards, close the lid again.
Carbon brushes
• If excessive sparks are generated, have an elec-
trician check the carbon brushes. Attention! The
carbon brushes must only be replaced by an elec-
trician.
Service information
With this product, it is necessary to note that the follow-
ing parts are subject to natural or usage-related wear,
or that the following parts are required as consuma-
bles.
Wearing parts*: Carbon brushes, chisel
* may not be included in the scope of supply!
Spare parts and accessories can be obtained from our
service centre. To do this, scan the QR code on the
cover page.
Ordering spare parts
Please provide the following information when ordering
replacement parts (via the service-hotline):
• Device type
• Device article number (see packaging or instruction
manual)
12. Cleaning
12.1 Cleaning
Keep protective devices, air vents and the motor hous-
ing as free of dust and dirt as possible. We recommend
cleaning the device directly after every use.
www.scheppach.com
12.1.1 Exterior cleaning
• Clean the device at regular intervals using a damp
cloth and a little soft soap.
• Do not use cleaning agents or solvents. These could
damage the plastic parts of the device.
• Make sure that no water can penetrate the device
interior.
13. Storage
Store the device and its accessories in a dark, dry
and frost-free place that is inaccessible to children.
The optimum storage temperature lies between 5 and
30 ˚C.
Store the power tool in its original packaging.
Cover the electric tool to protect it from dust or mois-
ture. Store the operating manual with the power tool.
14. Disposal and recycling
Notes for packaging
The packaging materials are recy-
clable. Please dispose of packag-
ing in an environmentally friendly
manner.
Notes on the electrical and electronic equipment
act [ElektroG]
Waste electrical and electronic equipment
does not belong in household waste, but
must be collected and disposed of sepa-
rately!
• Used batteries or rechargeable batteries that are not
installed permanently in the old appliance must be
removed non-destructively before disposal. Their
disposal is regulated by the battery law.
• Owners or users of electrical and electronic devices
are legally obliged to return them after use.
• The end user is responsible for deleting their per-
sonal data from the old device being disposed of!
• The symbol of the crossed-out dustbin means that
waste electrical and electronic equipment must not
be disposed of with household waste.
• Waste electrical and electronic equipment can be
handed in free of charge at the following places:
- Public disposal or collection points (e.g. municipal
works yards)
- Points of sale of electrical appliances (stationary
and online), provided that dealers are obliged to
take them back or offer to do so voluntarily.
