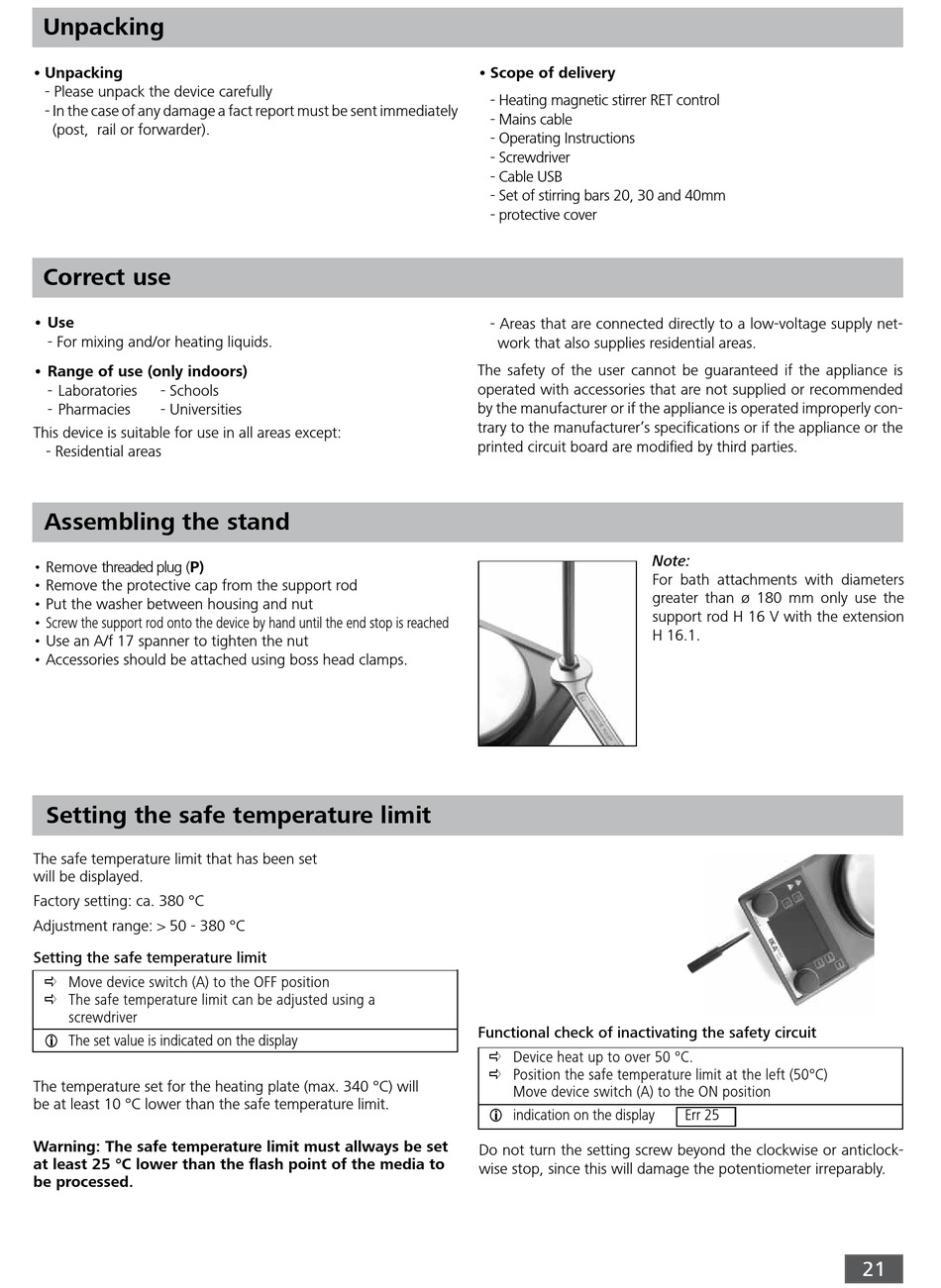

Unpacking

• Unpacking
- Please unpack the device carefully
- In the case of any damage a fact report must be sent immediately
(post, rail or forwarder).

Correct use

• Use
- For mixing and/or heating liquids.
• Range of use (only indoors)
- Laboratories - Schools
- Pharmacies - Universities
This device is suitable for use in all areas except:
- Residential areas

Assembling the stand

• Remove threaded plug (P)
• Remove the protective cap from the support rod
• Put the washer between housing and nut
• Screw the support rod onto the device by hand until the end stop is reached
• Use an A/f 17 spanner to tighten the nut
• Accessories should be attached using boss head clamps.
Setting the safe temperature limit
The safe temperature limit that has been set
will be displayed.
Factory setting: ca. 380 °C
Adjustment range: > 50 - 380 °C
Setting the safe temperature limit
a Move device switch (A) to the OFF position
a The safe temperature limit can be adjusted using a
screwdriver
i The set value is indicated on the display
The temperature set for the heating plate (max. 340 °C) will
be at least 10 °C lower than the safe temperature limit.
Warning: The safe temperature limit must allways be set
at least 25 °C lower than the flash point of the media to
be processed.
• Scope of delivery
- Heating magnetic stirrer RET control
- Mains cable
- Operating Instructions
- Screwdriver
- Cable USB
- Set of stirring bars 20, 30 and 40mm
- protective cover
- Areas that are connected directly to a low-voltage supply net-
work that also supplies residential areas.
The safety of the user cannot be guaranteed if the appliance is
operated with accessories that are not supplied or recommended
by the manufacturer or if the appliance is operated improperly con-
trary to the manufacturer's specifications or if the appliance or the
printed circuit board are modified by third parties.
Note:
For bath attachments with diameters
greater than ø 180 mm only use the
support rod H 16 V with the extension
H 16.1.
Functional check of inactivating the safety circuit
a Device heat up to over 50 °C.
a Position the safe temperature limit at the left (50°C)
Move device switch (A) to the ON position
i indication on the display
Do not turn the setting screw beyond the clockwise or anticlock-
wise stop, since this will damage the potentiometer irreparably.
Err 25
21
