Data Sheet

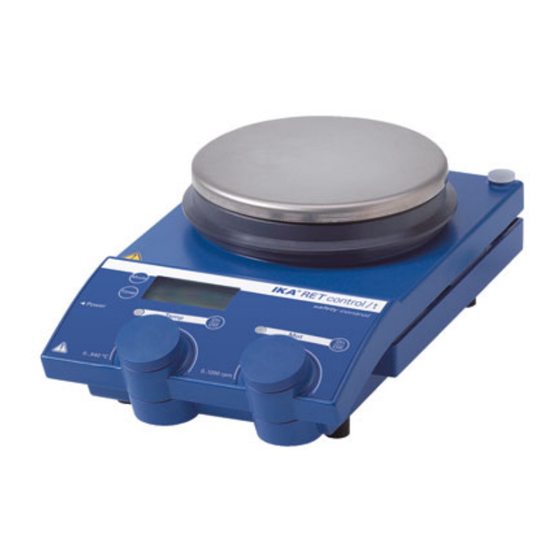

RET control/t IKAMAG® safety control
New safety magnetic stirrer with heating, suitable for unsupervised operation.
- Timer: min. 1 min / max. 9 h 59 min
- Option: 1 sensor for medium temperature (PT 100) or 2 separate temperature sensors
for heat transfer fluid and medium (PT 1000) available (automatic identification)
- 2 adjustable safety circuits
- Stirring bar crack detection
- Setting acc. medium temperature: 0,5 K
- HOT warning display indicating any residual heat when unit is switched off
- Easy-to-read backlit LCD display
- Actual medium temperature resolution displayed: 0,5 K (RT to 100 °C); 1 K (from 100
°C upwards)
- Fuzzy control and microprocessor technology guarantee maximum control accuracy
- PC control via RS 232 interface, with optional safety function
- Software labworldsoft® is available to control and document all measured values via
PC
- 3 modes of operation, e.g. stirring and heating functions can be secured against
inadvertent changes of set parameters
- Enclosed assembly (IP 42) guarantees long service life
- Incl. protection cover H 99
Accessories: RS 1 Set of magnetic stirring bars, IKAFLON® 50 Set (5 Pcs) power
SmSo PTFE-coated Magnetic stirring bars, IKAFLON® 9 Set (5 Pcs) crown
PTFE-coated Magnetic stirring bars, IKAFLON® 125 (1 Pc) beaker PTFE-coated
Magnetic stirring bars, IKAFLON® 103 (1 Pc) beaker PTFE-coated Magnetic stirring
bars, IKAFLON® 74 (1 Pc) beaker PTFE-coated Magnetic stirring bars, IKAFLON® 67
(1 Pc) beaker PTFE-coated Magnetic stirring bars, TRIKA® 80 Set (5 Pcs)
PTFE-coated Magnetic stirring bars, TRIKA® 55 Set (5 Pcs) PTFE-coated Magnetic
stirring bars, TRIKA® 40 Set (5 Pcs) PTFE-coated Magnetic stirring bars, TRIKA® 25
Set (5 Pcs) PTFE-coated Magnetic stirring bars, IKAFLON® 54 Set (5 Pcs) bone
PTFE-coated Magnetic stirring bars, IKAFLON® 37 Set (5 Pcs) bone PTFE-coated
Magnetic stirring bars, IKAFLON® 38 Set (5 Pcs) cross PTFE-coated Magnetic stirring
bars, IKAFLON® 30 Set (5 Pcs) cross PTFE-coated Magnetic stirring bars, IKAFLON®
10 Set (5 Pcs) round PTFE-coated Magnetic stirring bars, IKAFLON® 15 Set (5 Pcs)
round PTFE-coated Magnetic stirring bars, IKAFLON® 20 Set (5 Pcs) round
© IKA® Werke Staufen/Germany 2013 www.ika.com
Subject to technical changes
Technical Data
Number of stirring positions
Stirring quantity max. per stirring position (H2O) [l]
Stirring quantity max. (H2O) [l]
Motor rating input [W]
Motor rating output [W]
Speed display
Speed range [rpm]
Stirring bar length max. [mm]
Heat output [W]
Heating rate (1 l H2O in H15) [K/min]
Heating temperature range [°C]
Heat control
Heat control accuracy [±K]
Speed control
Adjustable safety circuit min. [°C]
Adjustable safety circuit max. [°C]
Connection for ext. temperature sensor
Control accuracy with sensor [±K]
Set-up plate material
Set-up plate dimensions [mm]
Dimensions (W x H x D) [mm]
Weight [kg]
Permissible ambient temperature [°C]
Permissible relative moisture [%]
Protection class according to DIN EN 60529
RS 232 interface
Analog output
Voltage [V]
Frequency [Hz]
Power input [W]
Ident. No.
1
20
20
12
5
LCD
0 - 1200
80
600
7
room temp. - 340
stepless
0.5
stepless
50
350
PT 100
0.2
stainless steel 1.4301
Ø 135
160 x 97 x 280
2.8
5 - 40
80
IP 42
yes
yes
220 - 230 / 115 / 100
50/60
630
0003964000
