ENG
3.4.2

Controller

The controllers are control units for setting refrigeration functions and operating data. They allow readouts of system messages
and diagnostic data.
The controllers have a service interface at which different configurations are possible.
They also have a connection for collective fault signals.

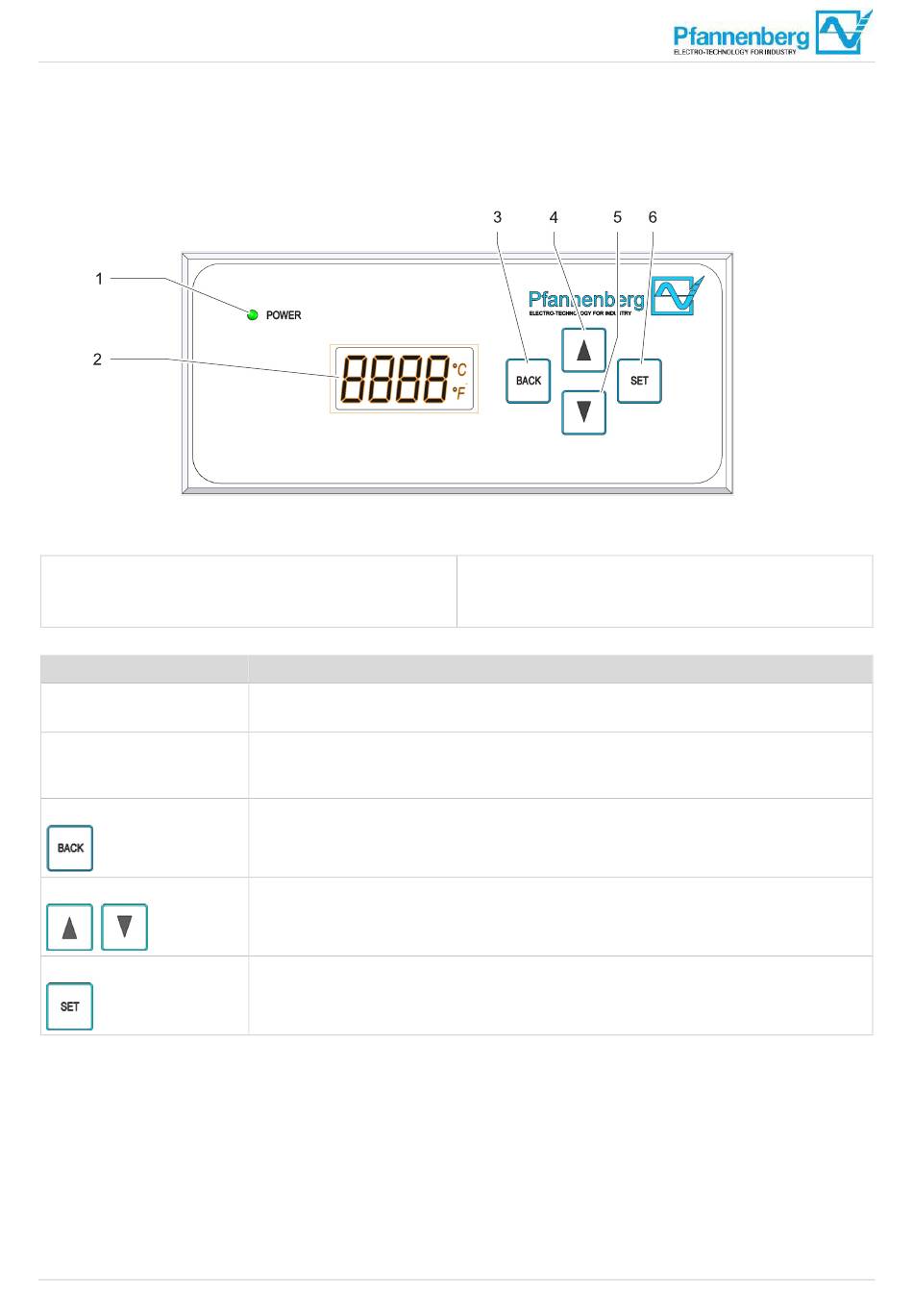

Fig. 4: Control unit Multi-Controller (MC)
1 LED light
2 Control panel
3 BACK button
Operating/display element
LED light
Control panel
(4-digit)
BACK button
SCROLL UP / DOWN button
SET button
Tab. 3: Operating and display elements on the Multi-Controller
Operating Manual | Attachment and Installation Cooling Units | Multi Controller (MC) – 400 V, 2~ | 086100116
Function
Indicates the operating mode:
Continuous light = fault-free / flashing = operating fault
Shows system information:
Temperature measuring unit, energy function, operating mode, system data, error number and
menu settings/menu items/menu level.
• Activation of the menu settings.
• Jump back to the next highest menu level.
SCROLL UP / DOWN of the menu items or the display elements, in the current menu level.
• Selection of the current menu item.
• Jump to the next lowest menu level.
4 SCROLL UP button
5 SCROLL DOWN button
6 SET button
G00018
16/76
