Adapting The Unit To The Mains Voltage - Pfannenberg DTI 6201 Serie Betriebsanleitung

ENG
4.6.8

Adapting the unit to the mains voltage

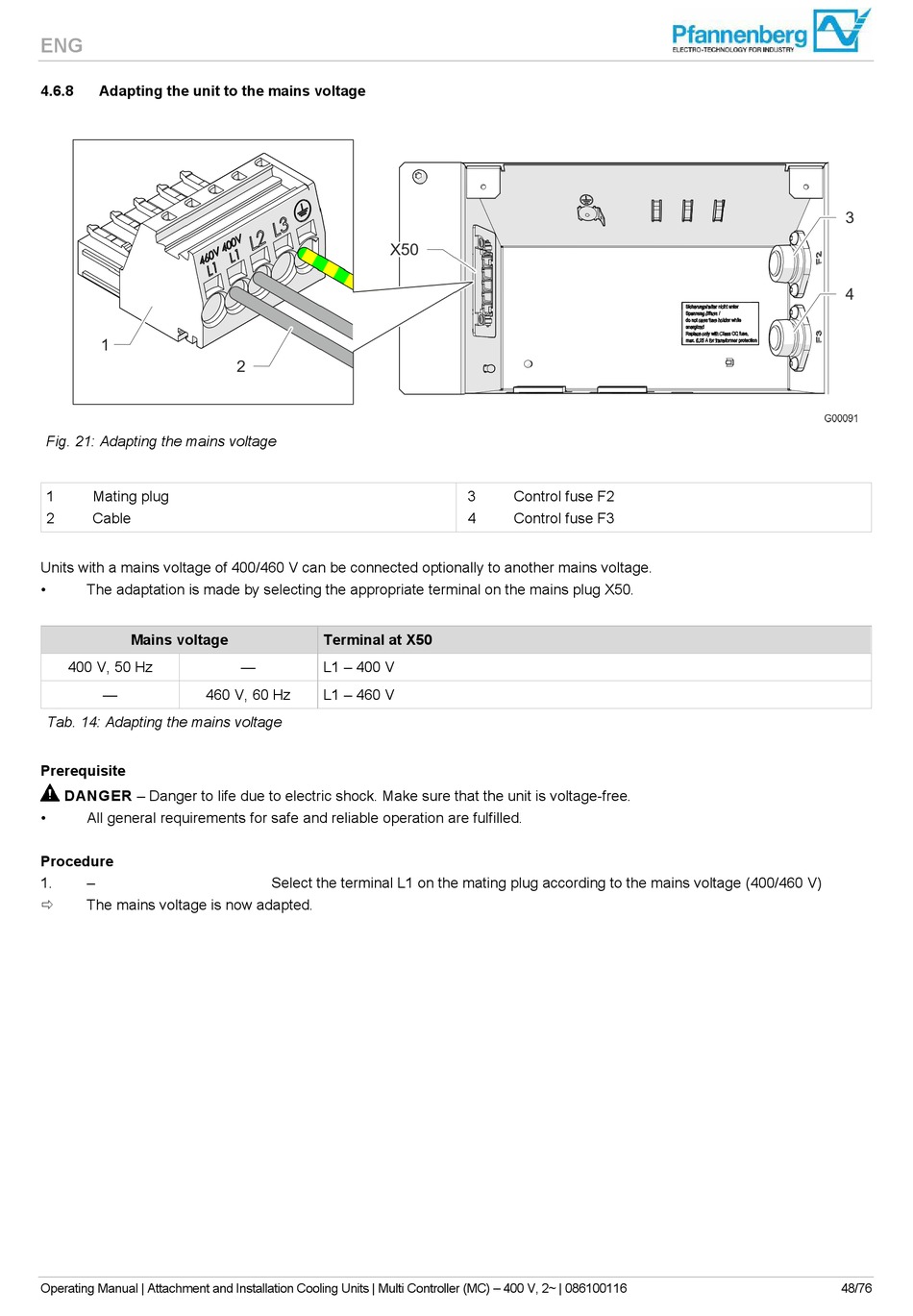

Fig. 21: Adapting the mains voltage
1 Mating plug
2 Cable
Units with a mains voltage of 400/460 V can be connected optionally to another mains voltage.
• The adaptation is made by selecting the appropriate terminal on the mains plug X50.
Mains voltage
400 V, 50 Hz
— 460 V, 60 Hz
Tab. 14: Adapting the mains voltage
Prerequisite
DANGER – Danger to life due to electric shock. Make sure that the unit is voltage-free.
• All general requirements for safe and reliable operation are fulfilled.
Procedure
1. –
The mains voltage is now adapted.

Operating Manual | Attachment and Installation Cooling Units | Multi Controller (MC) – 400 V, 2~ | 086100116
Terminal at X50
— L1 – 400 V
L1 – 460 V
Select the terminal L1 on the mating plug according to the mains voltage (400/460 V)
3 Control fuse F2
4 Control fuse F3
