bürkert 8081 Bedienungsanleitung Seite 29

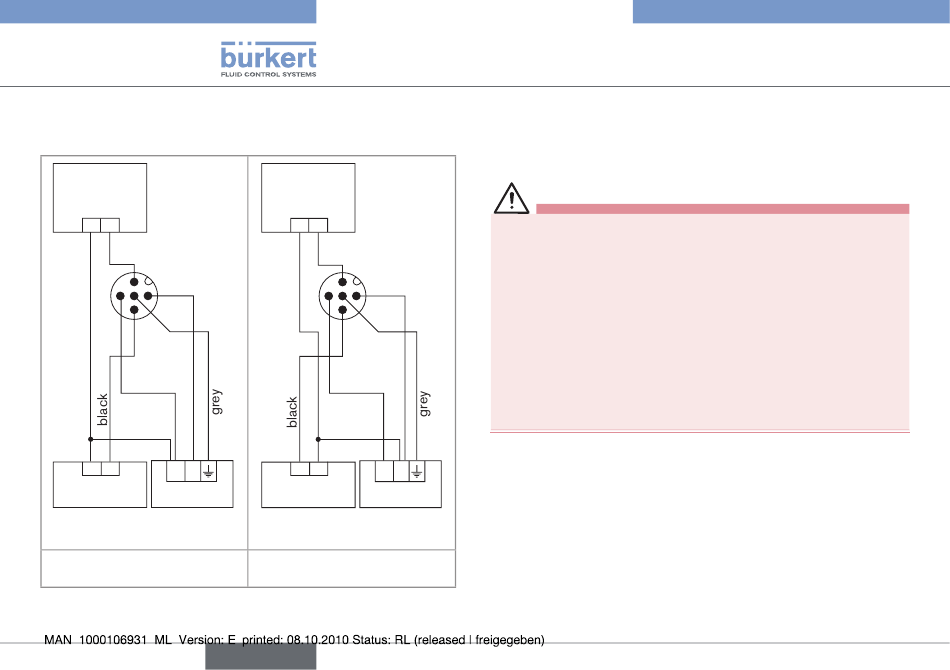

8.3.5. connecting both the current and
pulse outputs
Load
white
2
brown
3 1
4
blue
- +
- + (*)
4-20 mA
12-36 VDC
input
Supply
PNP/sourcing mode connection
(default setting)
(*) If a direct earthing connection is not possible, fit a 100 nF/50 V capacitor
between the negative terminal of the power supply and the earth.
22
All manuals and user guides at all-guides.com
Load
white
2
brown
3
1
4
blue
- +
- +
4-20 mA
12-36 VDC
input
Supply
NPN/sinking mode connection
(on request)
english
9. commissioninG
9.1. safety instructions
Warning
danger due to non-conforming commissioning.
Non-conforming commissioning could lead to injuries and damage
the device and its surroundings.
• Before commissioning, make sure that the staff in charge have
read and fully understood the contents of the manual.
• In particular, observe the safety recommendations and standard
operating practices.
• The device/installation must only be commissioned by suitably
trained staff.
• Protect the device against electromagnetic interference, ultravio-
let rays and, when installed outdoors, the effects of the climatic
conditions.
(*)
Type 8081
Commissioning
