Technicaldata
6.3. General technical data
6.3.1. mechanical data
item material
Housing, cover PPS
Seal in contact with
Silicone
the environment
PA
M12 connector
Brass
Fitting
Measuring tube PES
Seal in contact with
EPDM, FKM
the fluid
All manuals and user guides at all-guides.com
Type 8081

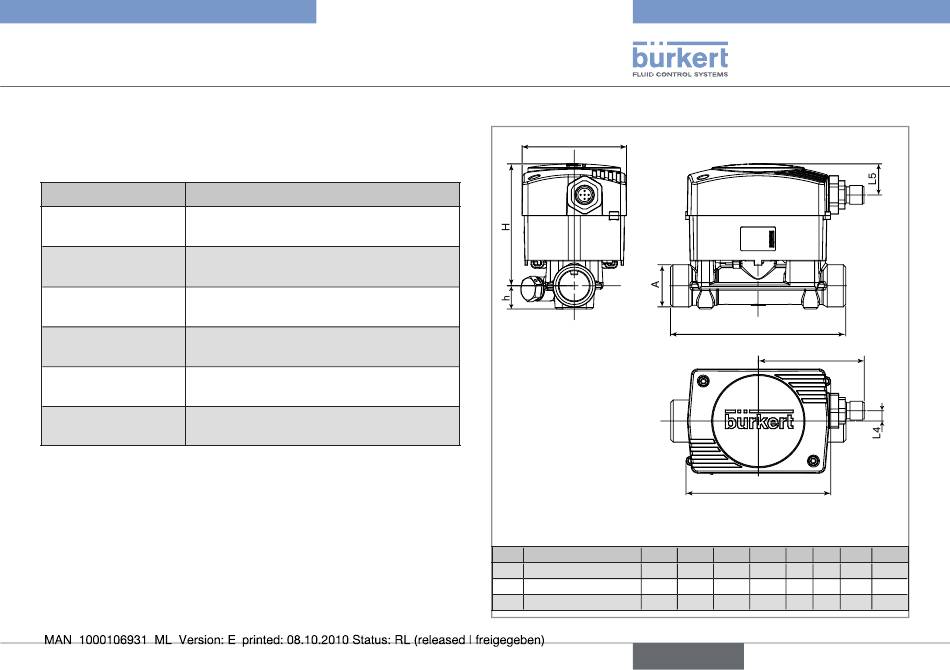

Dimensions [mm]
B
DN A B
15 G or NPT 3/4'' 65.5
20 G or NPT 1'' 65.5
25 G or NPT 1 1/4'' 65.5
english
L1
L3
L2
H h L1 L2 L3 L4
83.5 23 110 90 58 6.5
79 18 130 90 58 6.5
76.5 14.5 260 90 58 6.5
L5
19.5
19.5
19.5
13
