c) Tariff settings

First, select the price per kWh for tariff 1. The digit in front of the decimal point flashes. Continue to the next decimal
point with the "Continue" arrow button (7). The decimal point cannot be changed. Repeat these steps until the second
tariff is also set. Continue to the currency setting with the "Continue" arrow button (7). The unit flashes.
Select the desired currency (€, £, SFr or $, applies to both tariffs) with the two arrow button (3 and 4).
Confirm your currency settings with the "MODE" button (5). The basic settings are saved and you return automatically
to normal measurement operation.

11. Measuring operation

Due to the many display functions, the measuring values can only be displayed via several displays. Up to three
values can be displayed simultaneously.
To switch the measurement displays, click the „MODE" (5) key for the next or the „Continue" arrow key (7) for the
previous display. Every time you press, you switch the display.
After switching on the electric consumer, the energy cost measurement device needs a couple of seconds
to display the measurement values. During this time all required parameters are measured and calculated.
The energy cost measurement value records from the time of launching the data for current, power and performance
factor without interruption, but for a maximum of 6 months. The free memory in the internal memory is illustrated by
a percentage display next to „MEM".

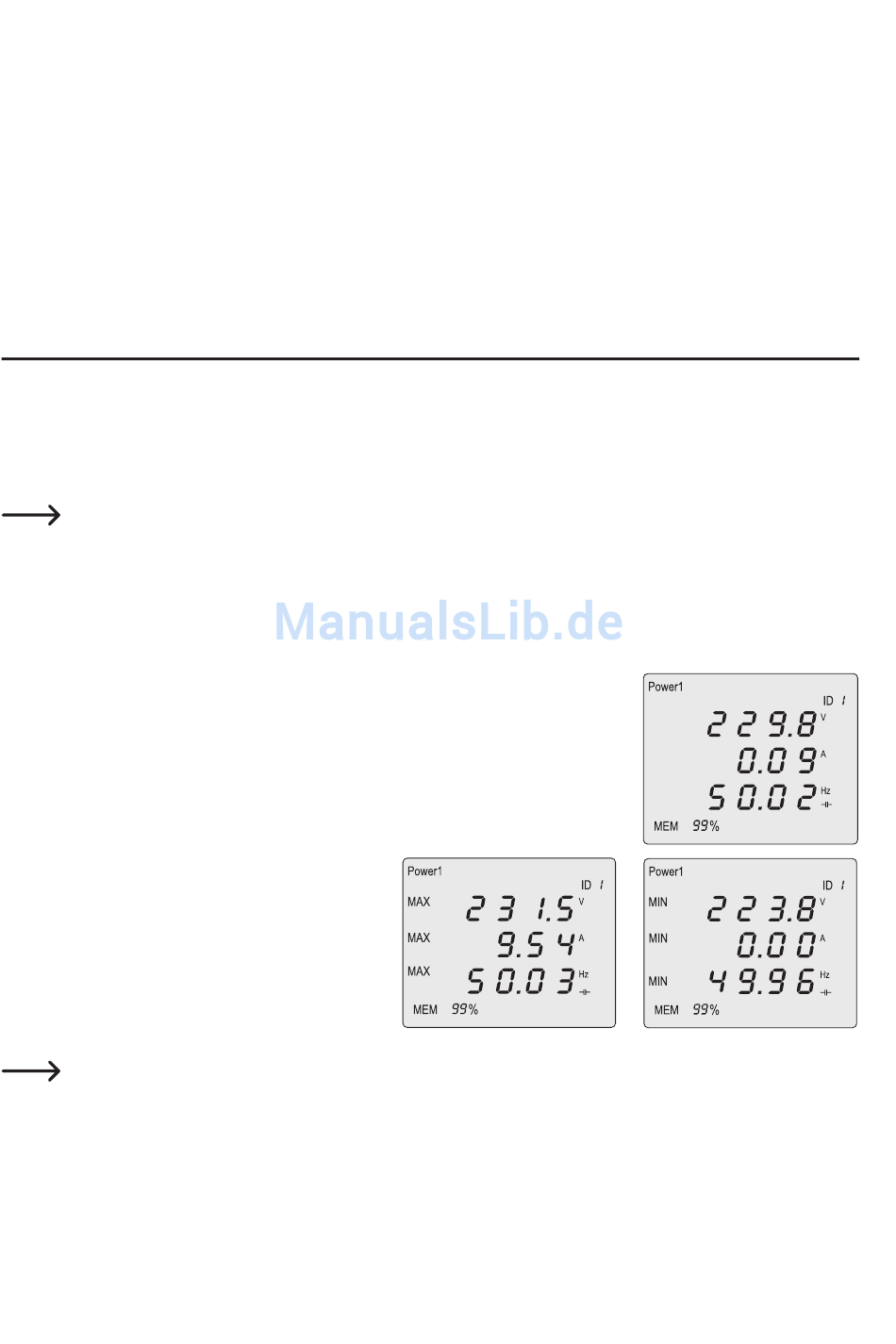

a) „Power1" display for current, power and frequency
After connecting the measurement device, this display is always shown.
In the bottom right corner the load type (capacity/resistance) can also be seen as a
symbol. If no device is connected, no symbol appears.
The maximum and minimum values are saved by
the measuring device automatically. Via the „max"
(4) or „min" (3) keys, the values are displayed for
approx. 10 seconds. Pressing the key again switch-
es back to the normal display prematurely.
In order to delete the MAX/MIN memory, keep the two „min" and „max" pressed simultaneously for approx.
2 seconds. The data is deleted if „MAX/MIN" appears on the display simultaneously.
To switch the measurement displays, click the „MODE" (5) key for the next or the „Continue" arrow key (7) for the
previous display. Every time you press, you switch the display.
