Fronius OPT/i TIG 2nd SpeedNet Installationsanleitung Seite 20

Connecting the OPT/i TIG 2nd SpeedNet
Connecting the Connection of the OPT/i TIG 2nd SpeedNet option takes place in the same way
OPT/i TIG 2nd regardless of the mounting position.
SpeedNet
1

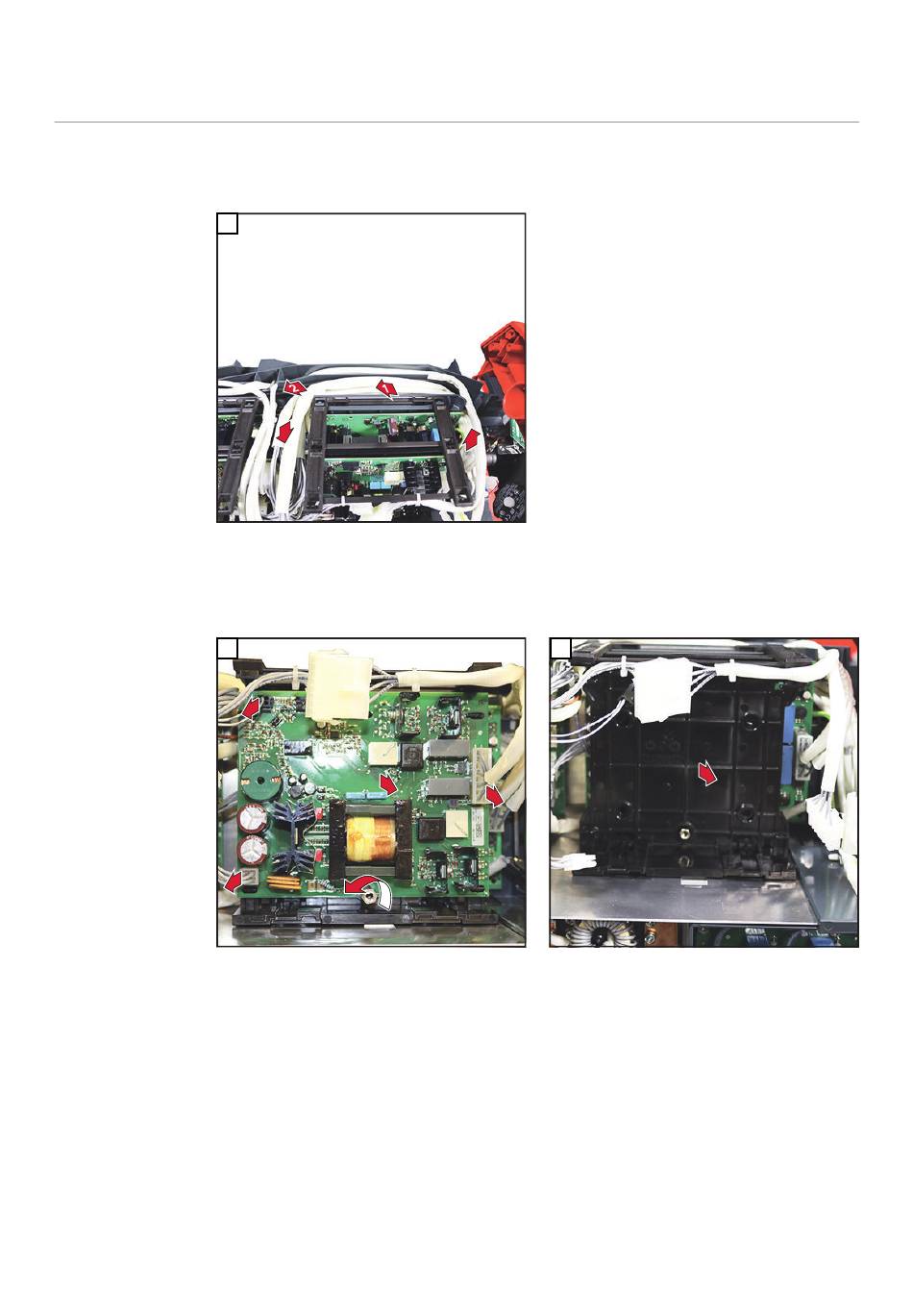

Lay the cable in the cable duct under the existing cables to the front;
Lay black data cable to power source front
Only if an option is installed before the PC board NT242:
Remove option
2
Example: PC board NT601
Disconnect all plugs;
Remove brass spacer;
Remove PC board
20
1
1
3
1
2
1
3
1
Remove PC board holder
1
