Fronius OPT/i TIG 2nd SpeedNet Installationsanleitung Seite 18

10

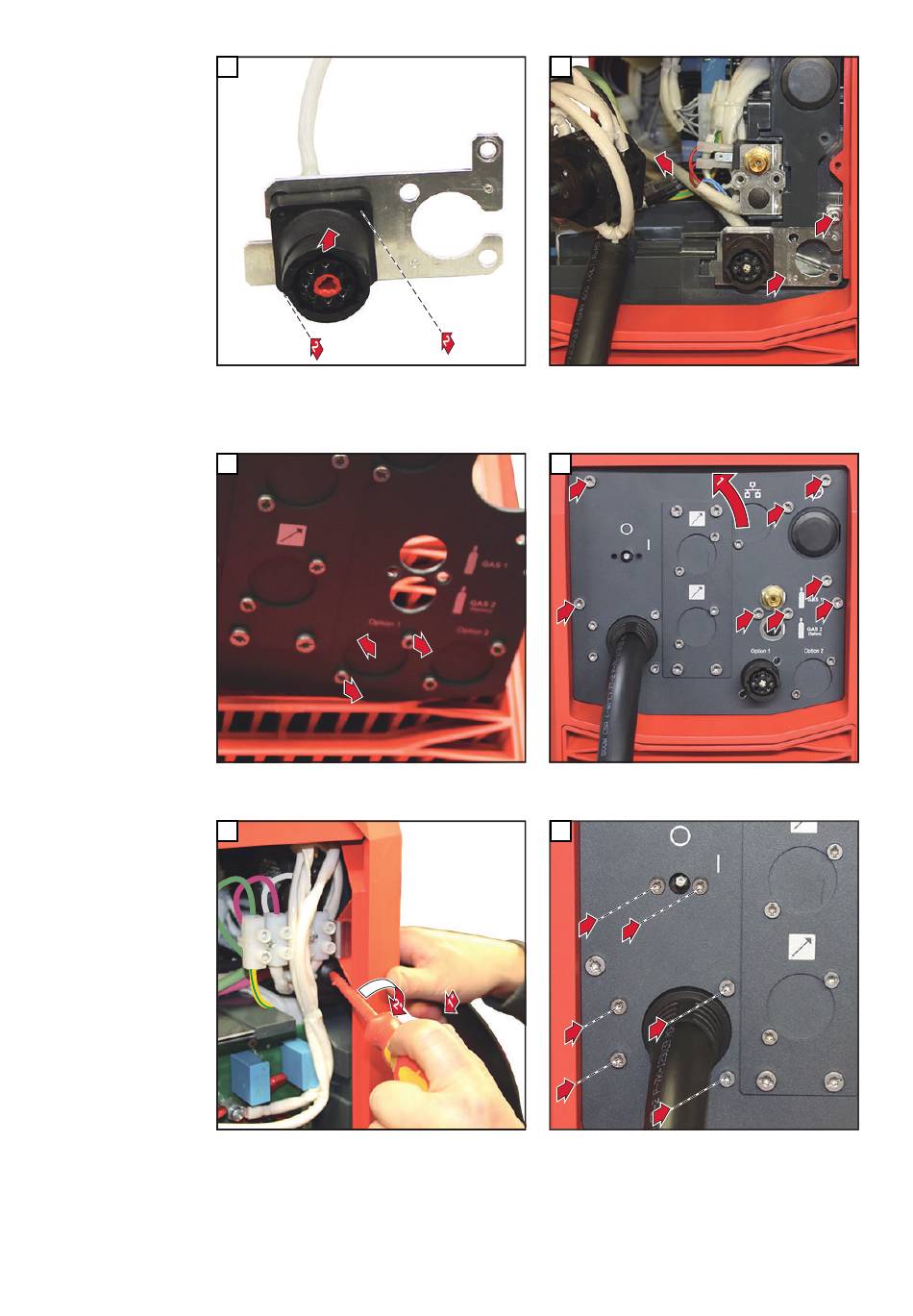

Insert the socket of the cable harness in the
mounting plate with the wide recess at the top;
Loosely screw the socket onto the rear of the
mounting plate using 2 TX20 screws - the socket
should still be able to move in the plate!
12
Remove 2 TX20 screws on the connection plate;
Remove cover from "Option 1" position
14
* Push the mains cable toward the open side in
order to access the strain-relief device clamping
screw;
* Tighten the clamping screw using a slotted
screwdriver
18
1
2 x TX20
2 1
1
2x TX20
11
3
Insert mounting plate with socket;
Secure mounting plate with TX25 screw - tigh-
tening torque = 3 Nm;
Route cable through the device
13
8x TX25
2
2
Insert connection plate;
Secure connection plate with 8 TX25 screws -
tightening torque = 3 Nm
15
2x TX20
2
2
1 *
1 *
1 *
4x TX20
1 *
* Secure the strain-relief device to the connec-
tion plate using 4 TX20 screws - tightening tor-
que = 1.5 Nm;
Secure the main switch to the connection plate
using 2 TX screws - tightening torque = 1.5 Nm
2
1
2
2
2
2
2 2
