Fronius OPT/i TIG 2nd SpeedNet Installationsanleitung Seite 15

Preparation
Preparations to
1
install in the
SpeedNet positi-
2
on

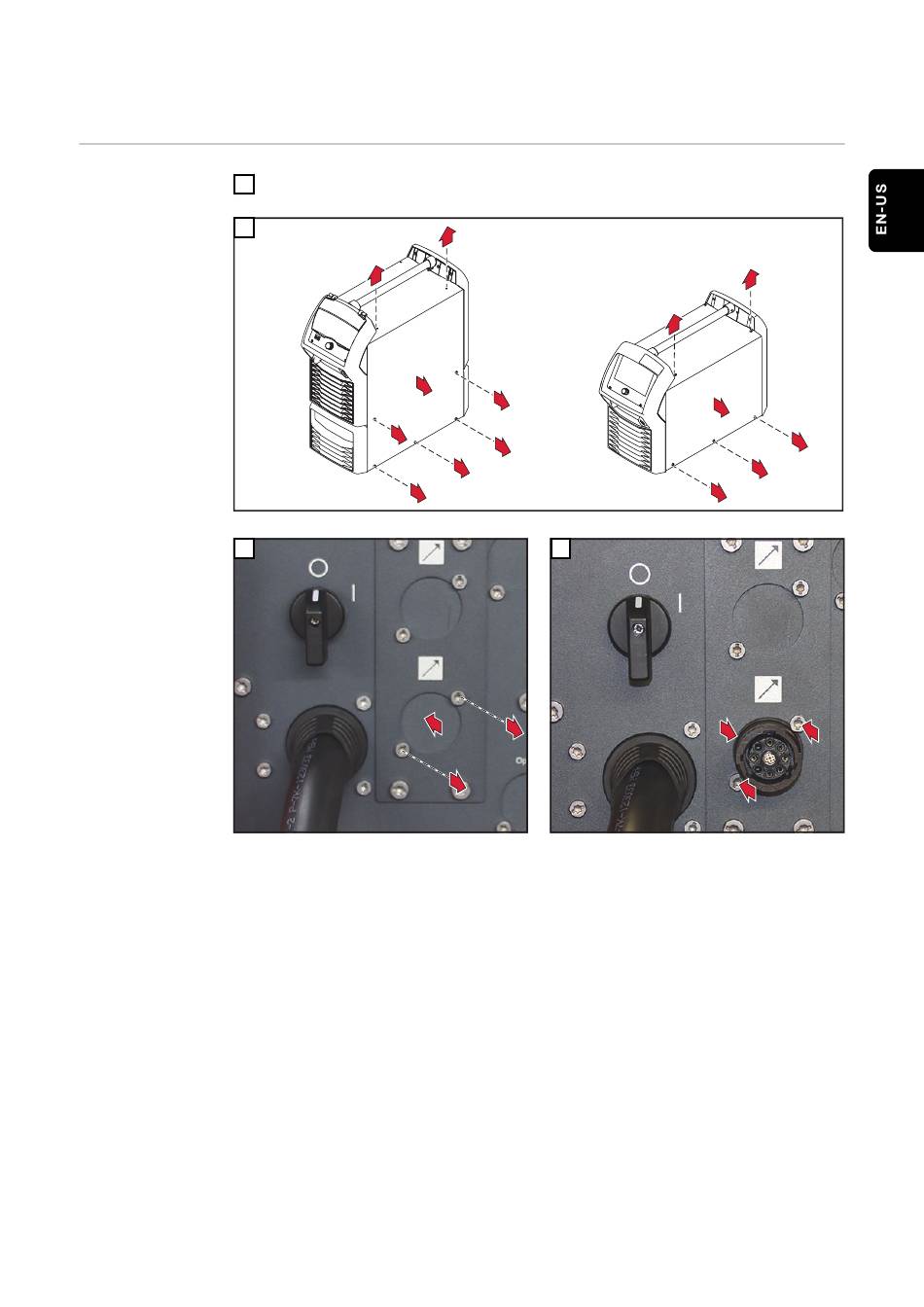

Remove the right side panel
3
Remove 2 TX20 screws;
Remove blanking cover
Switch off the power source and disconnect from the grid
iWave AC/DC
1
2
1
1
2x TX20
2
1
7x TX25
1
1
1
4
1
1
Insert the connector from the cable harness
with the wide recess at the top from the inside
out into the opening;
Secure the connector with 2 TX20 screws, tigh-
tening torque = 1.5 Nm
iWave DC
1
1
2
1
1
1 5x TX25
2x TX20
2
1
2
15
