Fronius OPT/i TIG 2nd SpeedNet Installationsanleitung Seite 17

6
2x TX20
1
1
2 *
2 *
2 *
4x TX20
2 *

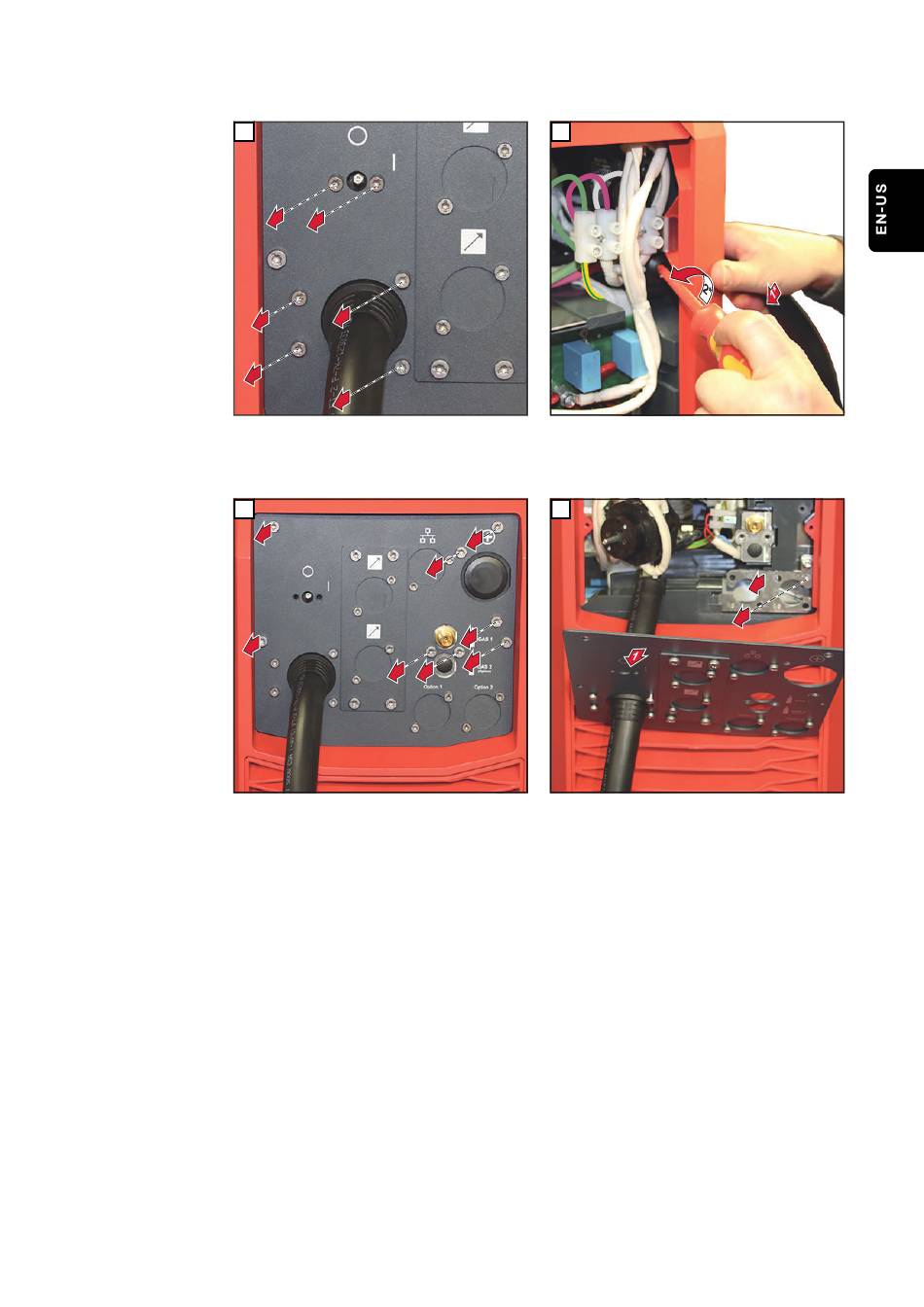

Remove 2 TX20 screws on the main switch;
* Loosen the 4 TX20 screws on the mains cable
strain-relief device - do not remove the screws!
8
8x TX25
1
1
1
Remove the 8 TX25 screws
7
* Push the mains cable toward the open side in
order to access the strain-relief device clamping
screw;
* Undo the clamping screw using a slotted screw-
driver
9
1
1
1
1
1
Slide the connection plate over the mains cable
so that it drops down;
Remove TX25 screw;
Remove mounting plate
3
2
TX25
17
