Manitou MRT-X 2470 Privilege Plus ST3A S1 Betriebsanleitung Seite 314

EN

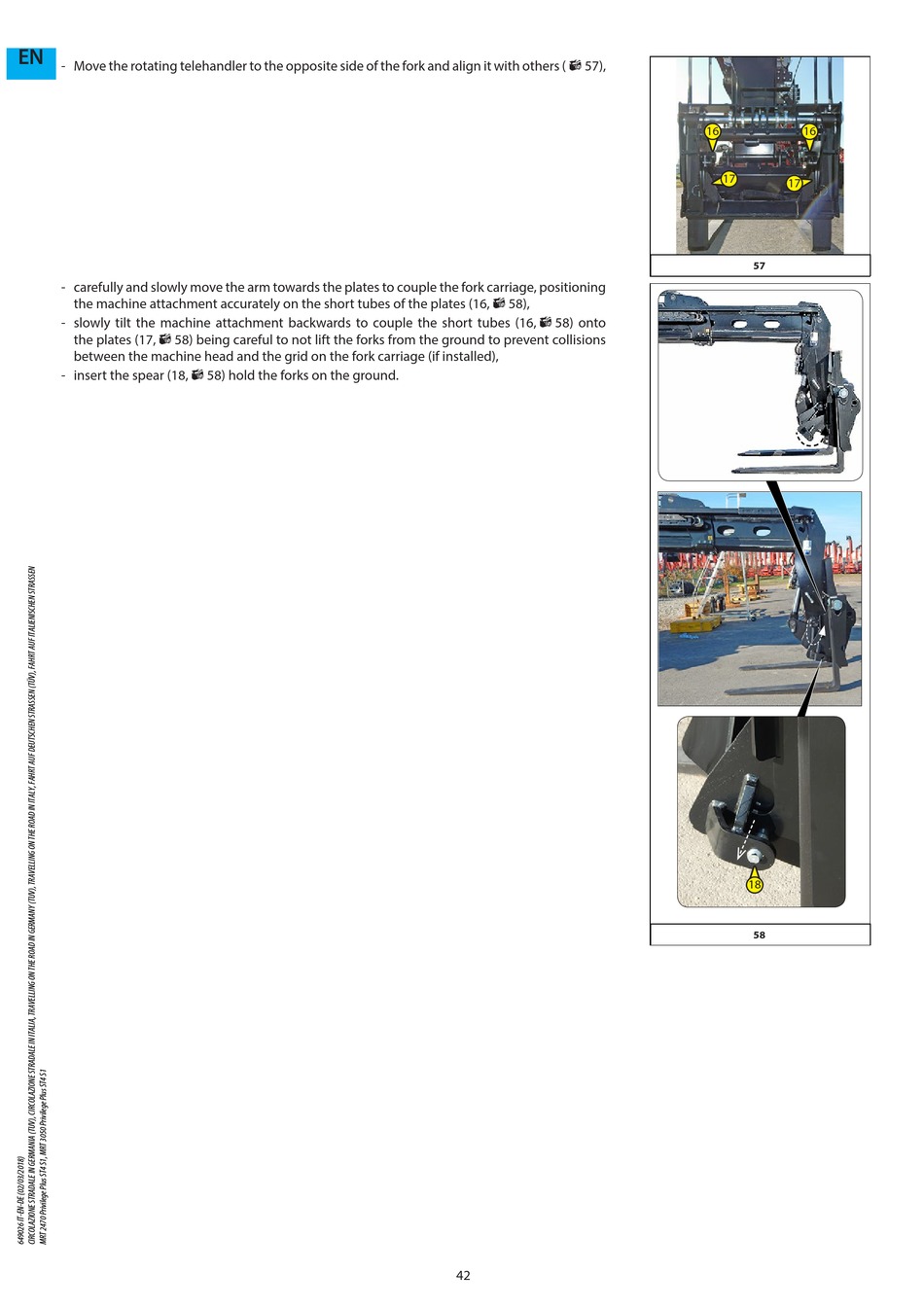

- Move the rotating telehandler to the opposite side of the fork and align it with others (
- carefully and slowly move the arm towards the plates to couple the fork carriage, positioning
the machine attachment accurately on the short tubes of the plates (16,
- slowly tilt the machine attachment backwards to couple the short tubes (16,

the plates (17, 58) being careful to not lift the forks from the ground to prevent collisions
between the machine head and the grid on the fork carriage (if installed),

- insert the spear (18, 58) hold the forks on the ground.

57),

58),

58) onto
42
16 16
17
17
57
18
58
