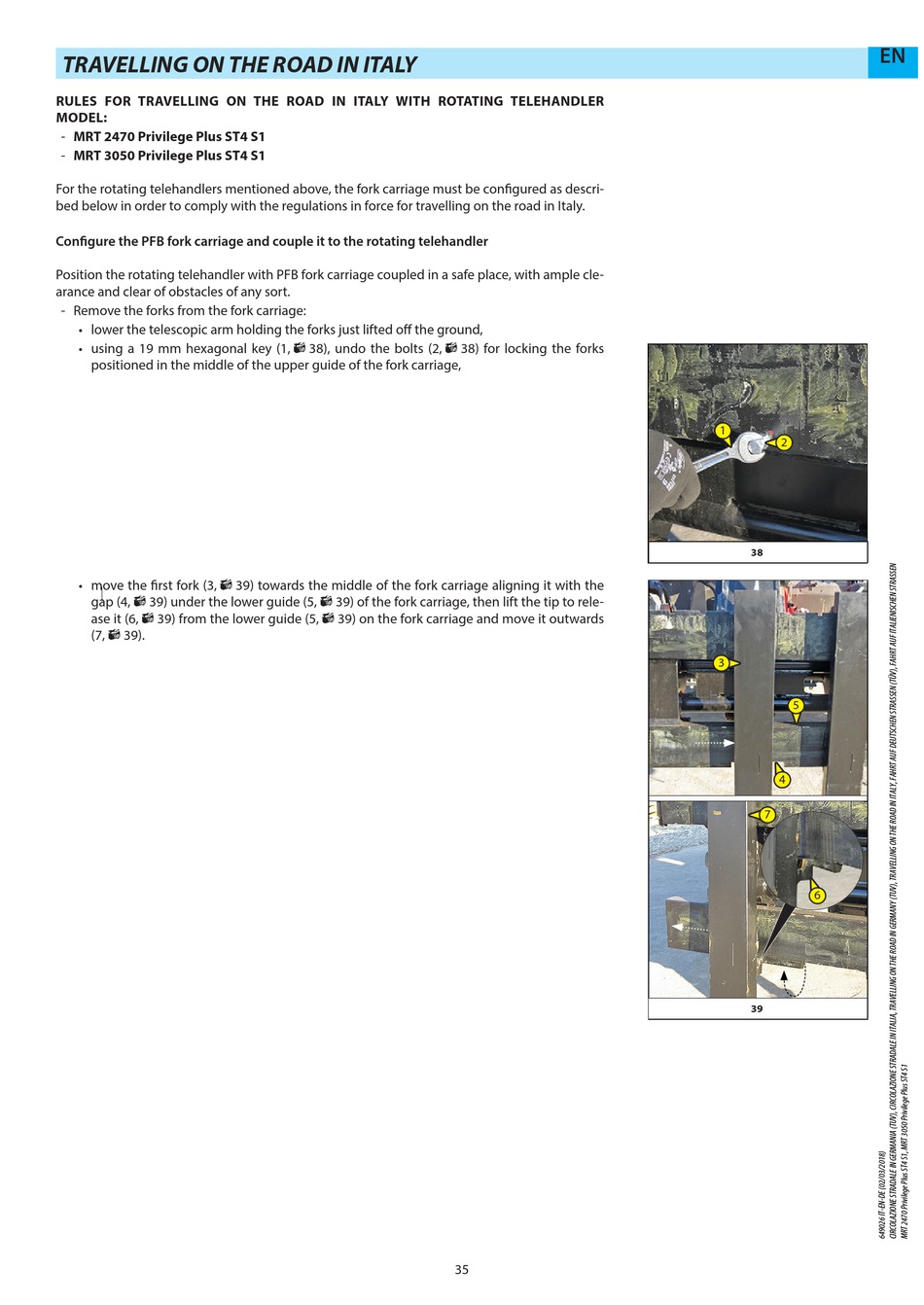

TRAVELLING ON THE ROAD IN ITALY
RULES FOR TRAVELLING ON THE ROAD IN ITALY WITH ROTATING TELEHANDLER
MODEL:
- MRT 2470 Privilege Plus ST4 S1
- MRT 3050 Privilege Plus ST4 S1
For the rotating telehandlers mentioned above, the fork carriage must be configured as descri-
bed below in order to comply with the regulations in force for travelling on the road in Italy.
Configure the PFB fork carriage and couple it to the rotating telehandler
Position the rotating telehandler with PFB fork carriage coupled in a safe place, with ample cle-
arance and clear of obstacles of any sort.
- Remove the forks from the fork carriage:
• lower the telescopic arm holding the forks just lifted off the ground,
• using a 19 mm hexagonal key (1,
positioned in the middle of the upper guide of the fork carriage,

• move the first fork (3,

gap (4, 39) under the lower guide (5,

ase it (6, 39) from the lower guide (5,

(7, 39).

38), undo the bolts (2,
39) towards the middle of the fork carriage aligning it with the

39) of the fork carriage, then lift the tip to rele-

39) on the fork carriage and move it outwards

38) for locking the forks
35
EN
1
2
38
3
5
4
7
6
39
