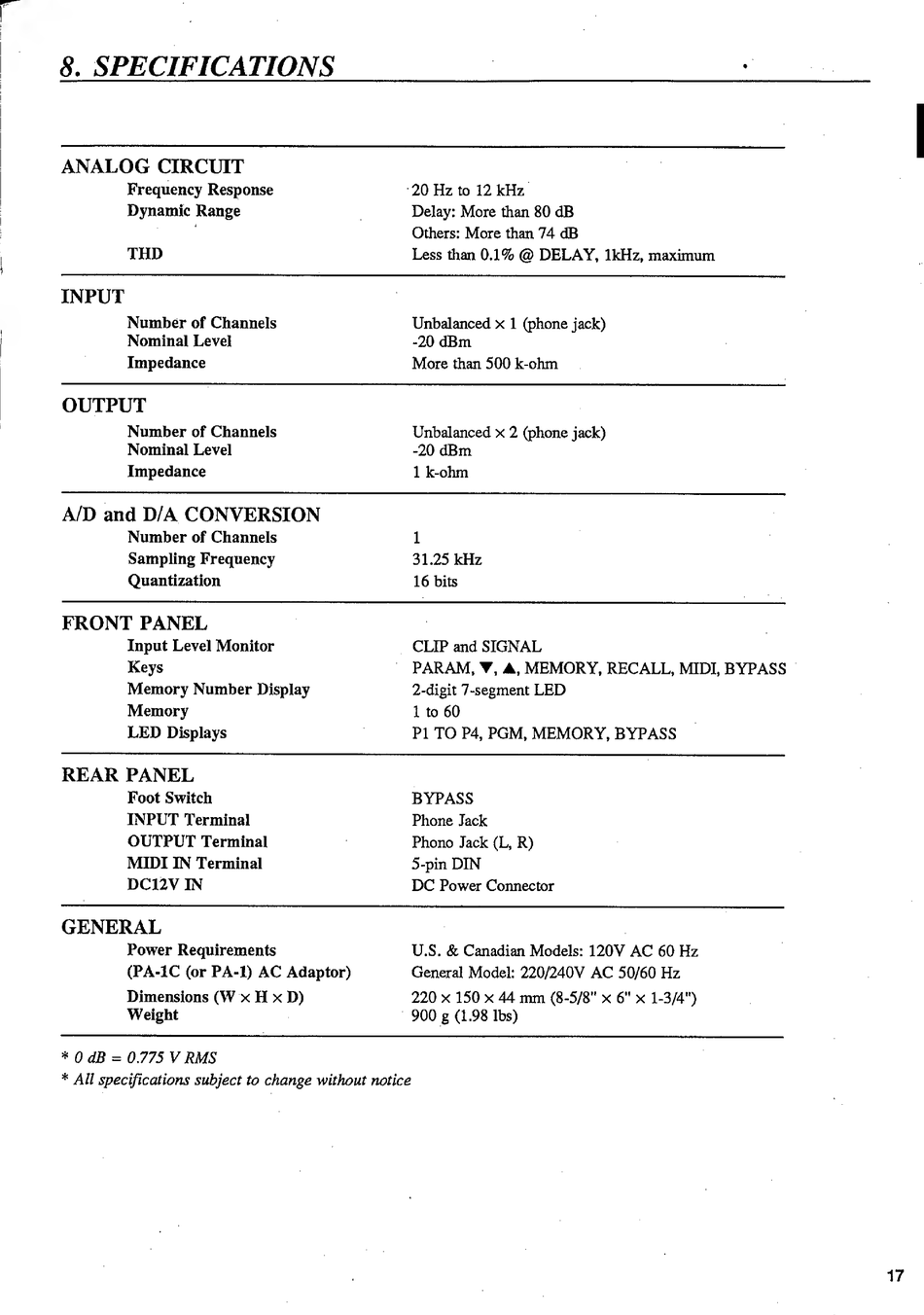

ANALOG CIRCUIT
Frequency Response 20 Hz to 12 kHz
Dynamic Range | - Delay: More than 80 dB
| | | Others: More than 74 dB
THD | Less than 0.1% @ DELAY, 1kHz, maximum
INPUT
Number of Channels Unbalanced x 1 (phone jack)
Nominal Level -20 dBm
Impedance _ | More than 500 k-ohm
OUTPUT
Number of Channels Unbalanced x 2 (phone jack)
Nominal Level -20 dBm
Impedance 1 k-ohm
A/D and D/A CONVERSION
Number of Channels 1
Sampling Frequency 31.25 kHz
Quantization 16 bits
FRONT PANEL
Input Level Monitor . CLIP and SIGNAL
Keys ` PARAM, Y, A, MEMORY, RECALL, MIDI, BYPASS |
Memory Number Display 2-digit 7-segment LED
Memory 1 to 60
LED Displays | P1 ТО РА, PGM, MEMORY, BYPASS
REAR PANEL | |
Foot Switch BYPASS
INPUT Terminal Phone Jack
OUTPUT Terminal | Phono Jack (1, К)
MIDI IN Terminal 5-pin DIN
DC12V IN DC Power Connector
GENERAL | | |
Power Requirements U.S. & Canadian Models: 120V AC 60 Hz
(PA-1C (or РА-1) AC Adaptor) . General Model: 220/240V AC 50/60 Hz
Dimensions (W x H x D) 220 х 150 x 44 mm (8-5/8" x 6" x 1-3/4")
Weight | | "900 g (1.98 Ibs)
* 0 dB = 0.775 V RMS
* All specifications subject to change without notice
