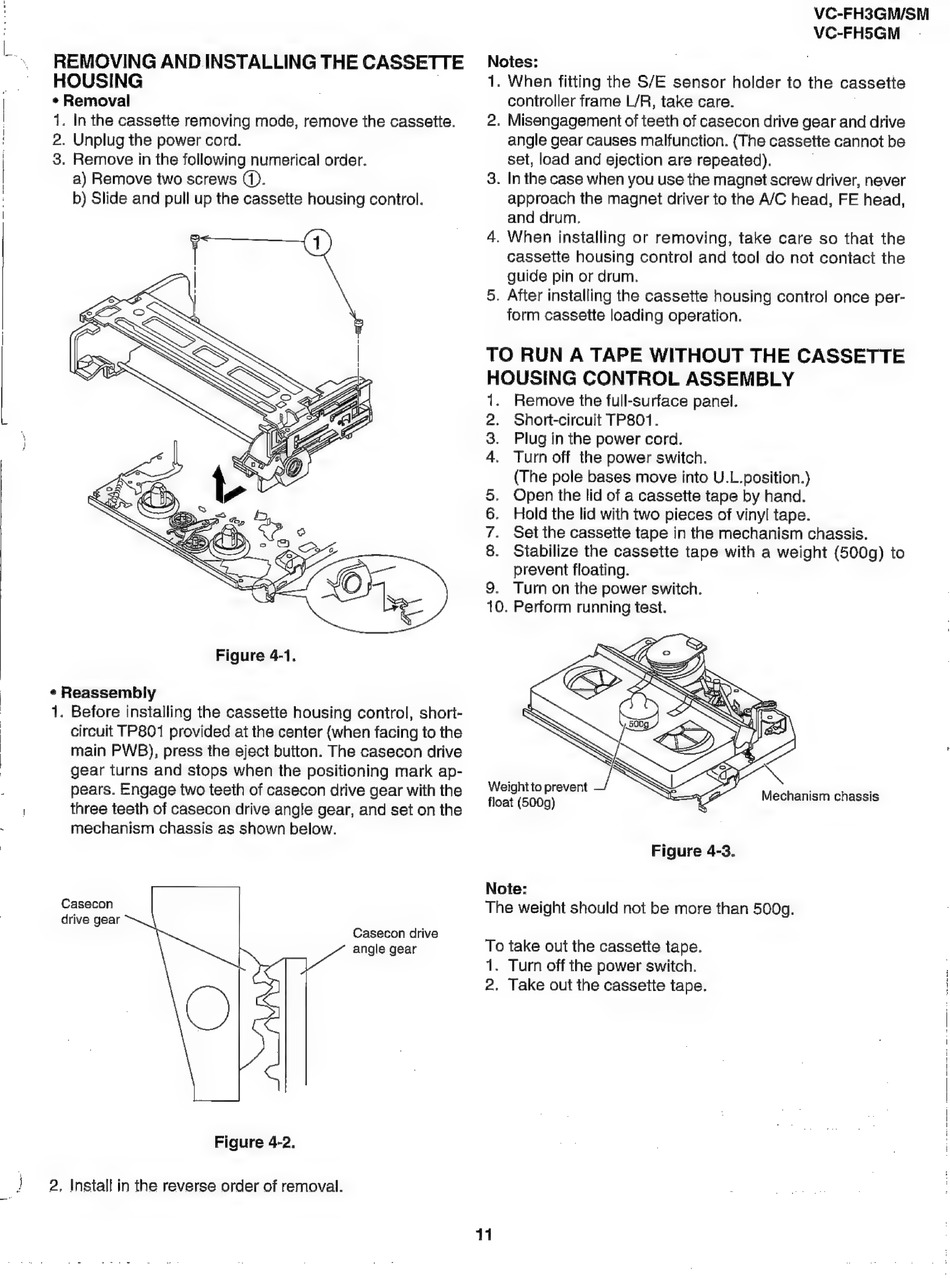

REMOVING AND INSTALLING THE CASSETTE
HOUSING
|
« Removal
1. In the cassette removing mode, remove the cassette.
2. Unplug the power cord.
3. Remove in the following numerical order.
a) Remove two screws (1).
b) Slide and pull up the cassette housing control.
Figure 4-1.
« Reassembly
1. Before installing the cassette housing control, short-
circuit TP801 provided at the center (when facing to the
main PWB), press the eject button. The casecon drive
gear turns and stops when the positioning mark ap-
pears. Engage two teeth of casecon drive gear with the
three teeth of casecon drive angle gear, and set on the
mechanism chassis as shown below.
Casecon
drive gear
;
Casecon drive
angle gear
Figure 4-2.
2, Install in the reverse order of removal.
VC-FH3GM/SM
VC-FH5GM
Notes:
1. When fitting the S/E sensor holder to the cassette
controller frame L/R, take care.
.
2. Misengagement of teeth of casecon drive gear and drive
angle gear causes malfunction. (The cassette cannot be
set, load and ejection are repeated).
|
3. In the case when you use the magnet screw driver, never
approach the magnet driver to the A/C head, FE head,
and drum,
4. When insialling or removing, take care so that the
cassette housing control and tool do not contact the
guide pin or drum.
5. After installing the cassette housing contro! once per-
form cassette loading operation.
TO RUN A TAPE WITHOUT THE CASSETTE
HOUSING CONTROL ASSEMBLY
1. Remove the full-surface panel.
2. Shori-circuit TP801.
3.
Plug in the power cord.
4. Turn off the power switch.
(The pole bases move into U.L.position.)
5, Open the lid of a cassette tape by hand.
6. Hold the lid with two pieces of vinyl tape.
7.
Set the cassette tape in the mechanism chassis.
8. Stabilize the cassette tape with a weight (500g) to
prevent floating.
9. Turn on the power switch.
10. Perform running test.
Weight to prevent
float (500g)
by yy
oe
Figure 4-3.
Note:
The weight should not be more than 500g.
To take out the cassetie tape.
1. Turn off the power switch.
2. Take out the cassette tape.
11
