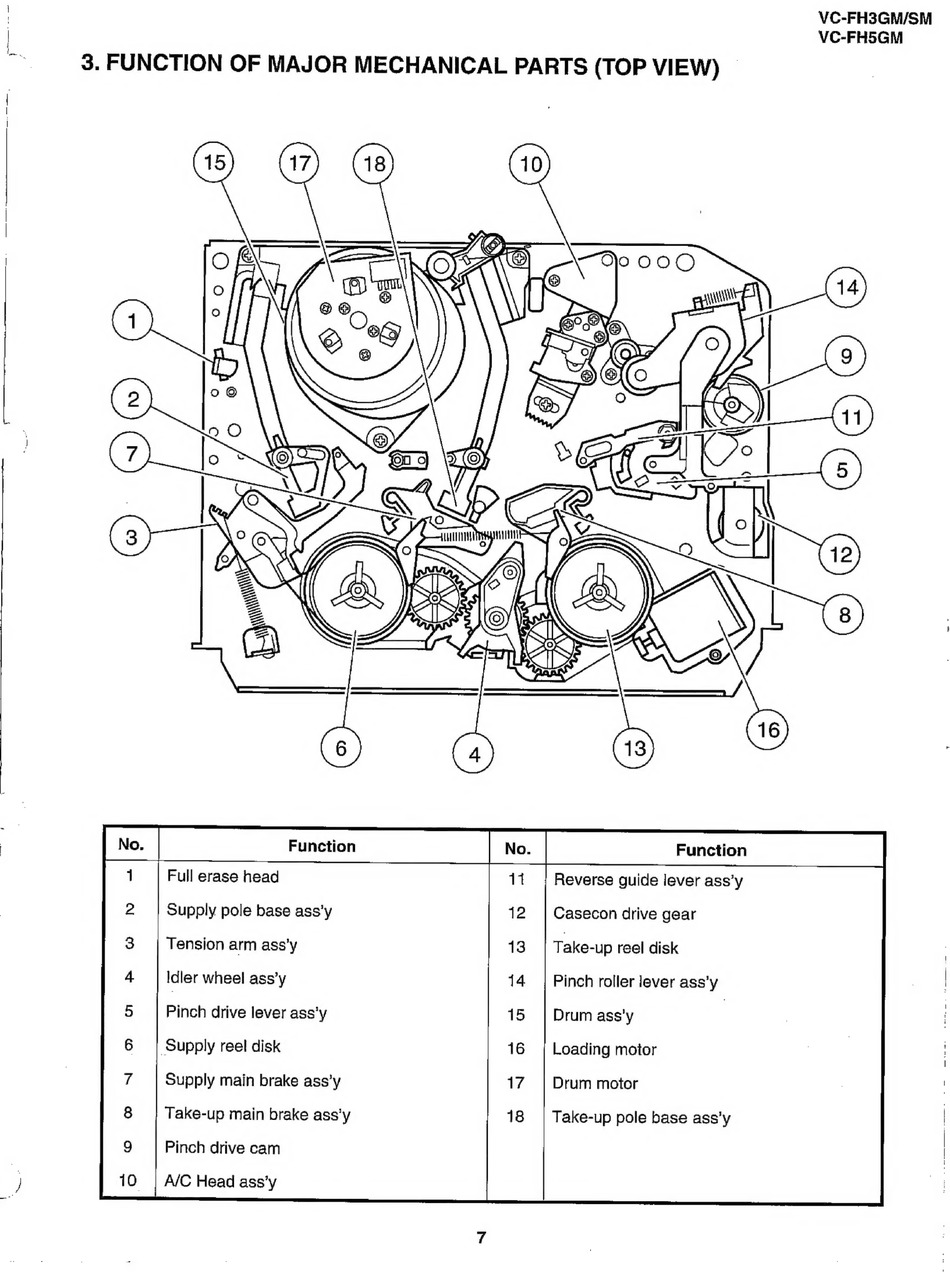

Sharp VC-FH3GM/SM Serviceanleitung Seite 7

oO 8&8 NN OD Ow - WwW NY
——
— Oo
work
A
a
Full erase head
Supply pole base ass'y
Tension arm ass'y
Idler wheel ass'y
Pinch drive lever ass'y
Supply reel disk
Supply main brake ass'y
Take-up main brake ass'y
Pinch drive cam
A/C Head ass'y
VC-FH3GM/SM
VC-FH5GM
Reverse guide lever ass'y
Casecon drive gear
Take-up reel disk
Pinch roller lever ass'y
Drum ass'y |
Loading motor
Drum motor
Take-up pole base ass'y
