4. Acquiring CEPH Images

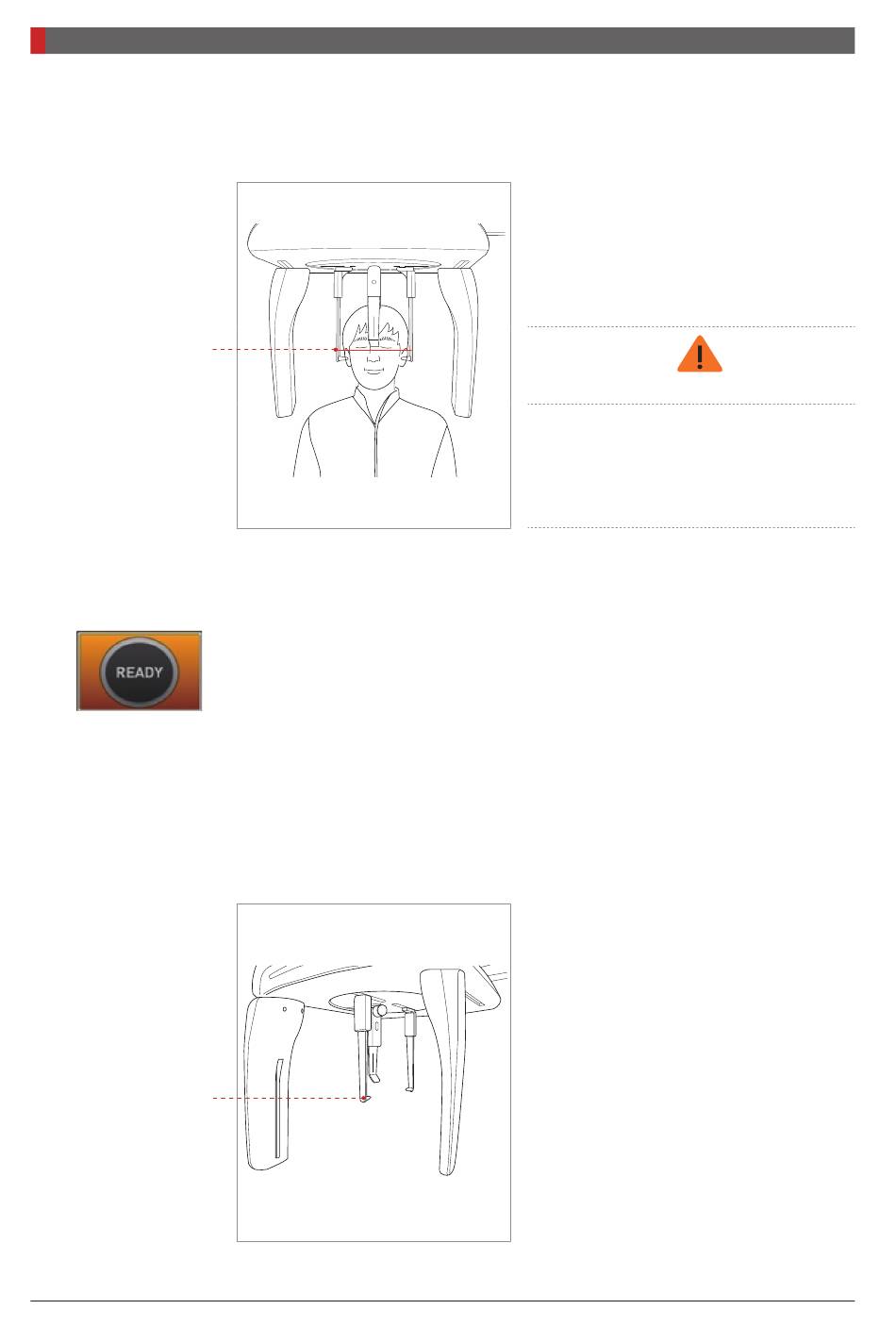

Frankfurt plane
4.2.2
Porion position
reference indicator
36
6. The ear rods should fit properly along the patient's ear canals. The patient's
Frankfurt Plane should be parallel to the floor.
8. Ask the patient to swallow saliva and remain still with his/her mouth closed
until X-Ray exposure is complete.
9. Click the Ready button after the patient has been properly positioned. No
X-Ray will be emitted at this point. The CEPH sensor and the 2
enter positioning mode.
10. Proceed to section 4.3. Initiating X-Ray Exposure.
Frontal Mode (PA)
Follow the procedure below to correctly position the patient.
7. Position the nasal positioner on the
patient's Nasion point. The height of
nasal positioner can be adjusted.
CAUTION
After adjusting the height of the
column to suit the patient, fit the ear
rods along the patient's ear canals
and adjust the nasal positioner.
1. Turn the ear rods 90° clockwise from
their initial position.
2. Widen the distance between the two
ear rods.
PaX-i (PCH-2500) User Manual
nd collimator will
