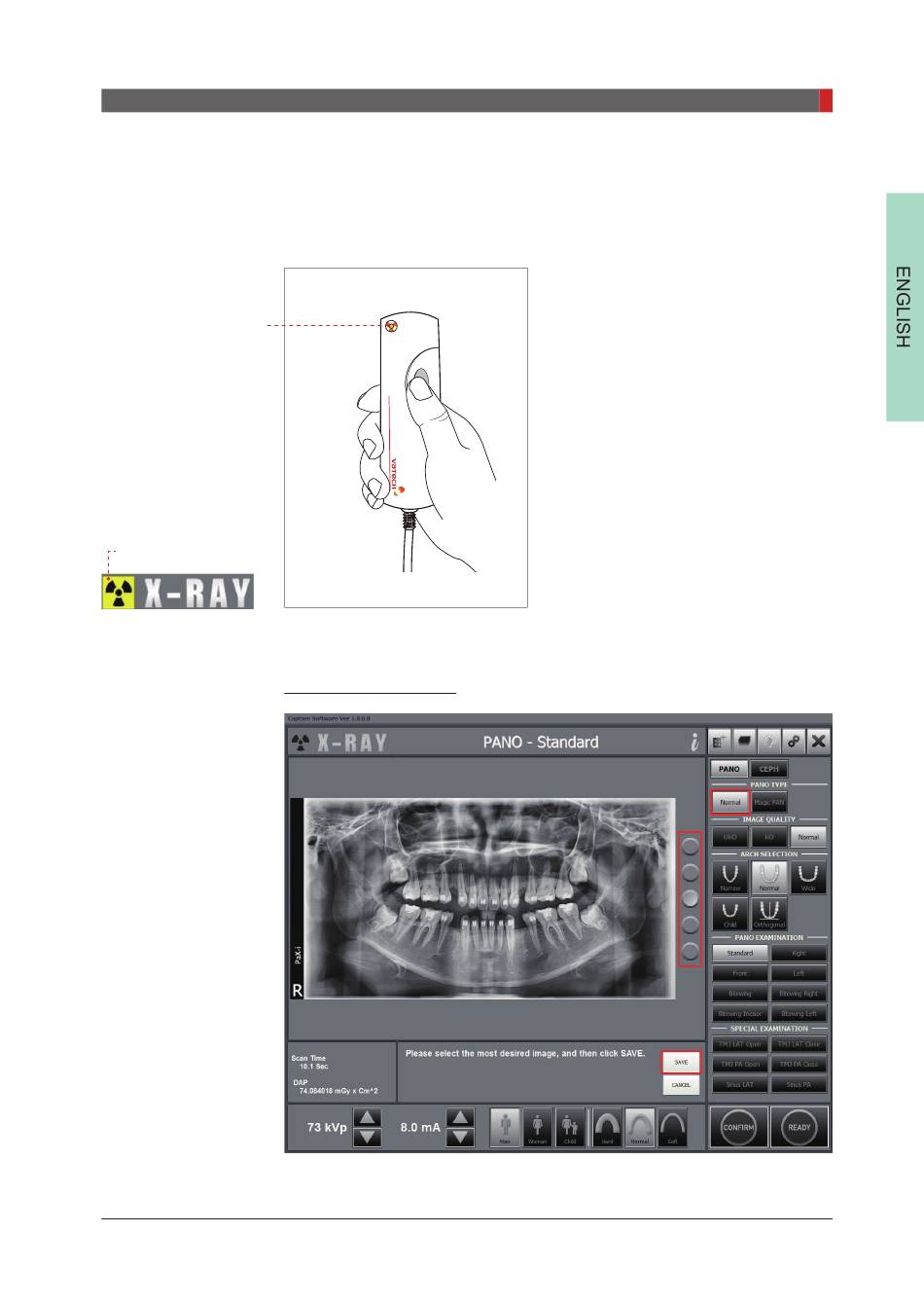

Exposure indicator
light turns orange
Orange : Exposure
X-Ray ON indicator
PaX-i (PCH-2500) User Manual
1. Leave the X-Ray room and close the door. The operator must visually
monitor the patient at all times during image acquisition.
2. Press and hold down the exposure switch until image acquisition is complete.
3. The image appears in real time on the imaging GUI.
CASE 1: Normal / AF
Normal / AF: Ex) 5 images view is set
3. Acquiring PANO Images
During X-Ray irradiation, ensure that
- The LED lamp on top of the equipment
t u r n s o r a n g e t o i n d i c a t e X - R a y
emission.
- The warning lamp outside the X-Ray
room turns on.
- The sound (beep or music: optional)
goes off.
- The radiation symbol on the upper left
corner of GUI turns yellow to indicate
X-Rays are being emitted.
