3. Acquiring PANO Images

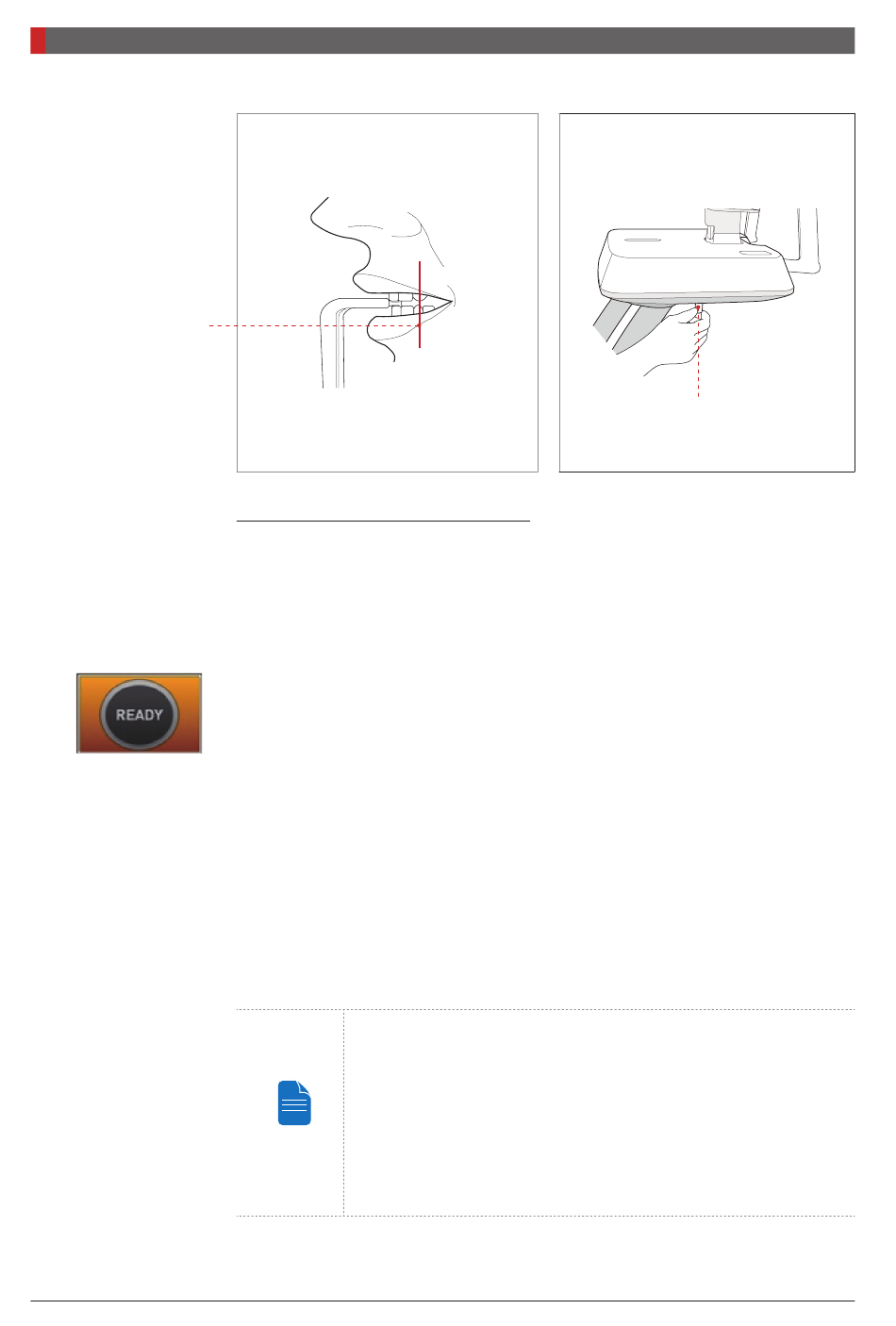

Canine laser beam
3.2.2
20
Completing Patient Positioning
1. After confirming patient positioning and beam alignment, adjust the temple
supports to fit snugly on both sides of the patient's head using the temple
support wheel. The temple support wheel is located underneath the patient
support rest.
2. Click the Ready button on the GUI after the patient has been properly
positioned. No X-Ray will be emitted at this point. The rotating unit will then
move into position for imaging.
3. Proceed to section 3.3. Initiating X-Ray Exposure.
TMJ Open Mode
There are two TMJ sub modes: TMJ Open and TMJ Close. Scan a TMJ Open
image first and then scan a TMJ Close image. To prepare and position the
patient, follow the process outlined below.
- Correct positioning is an important factor in capturing the
best possible image. Proper positioning will reduce the
appearance of the cervical spine in the image.
NOTE
- For a child with a large head circumference, Man/Woman
mode may be selected instead of Child.
Canine laser beam lever
