oxycom ROOFTOP 3000 Installationsanleitung Seite 60

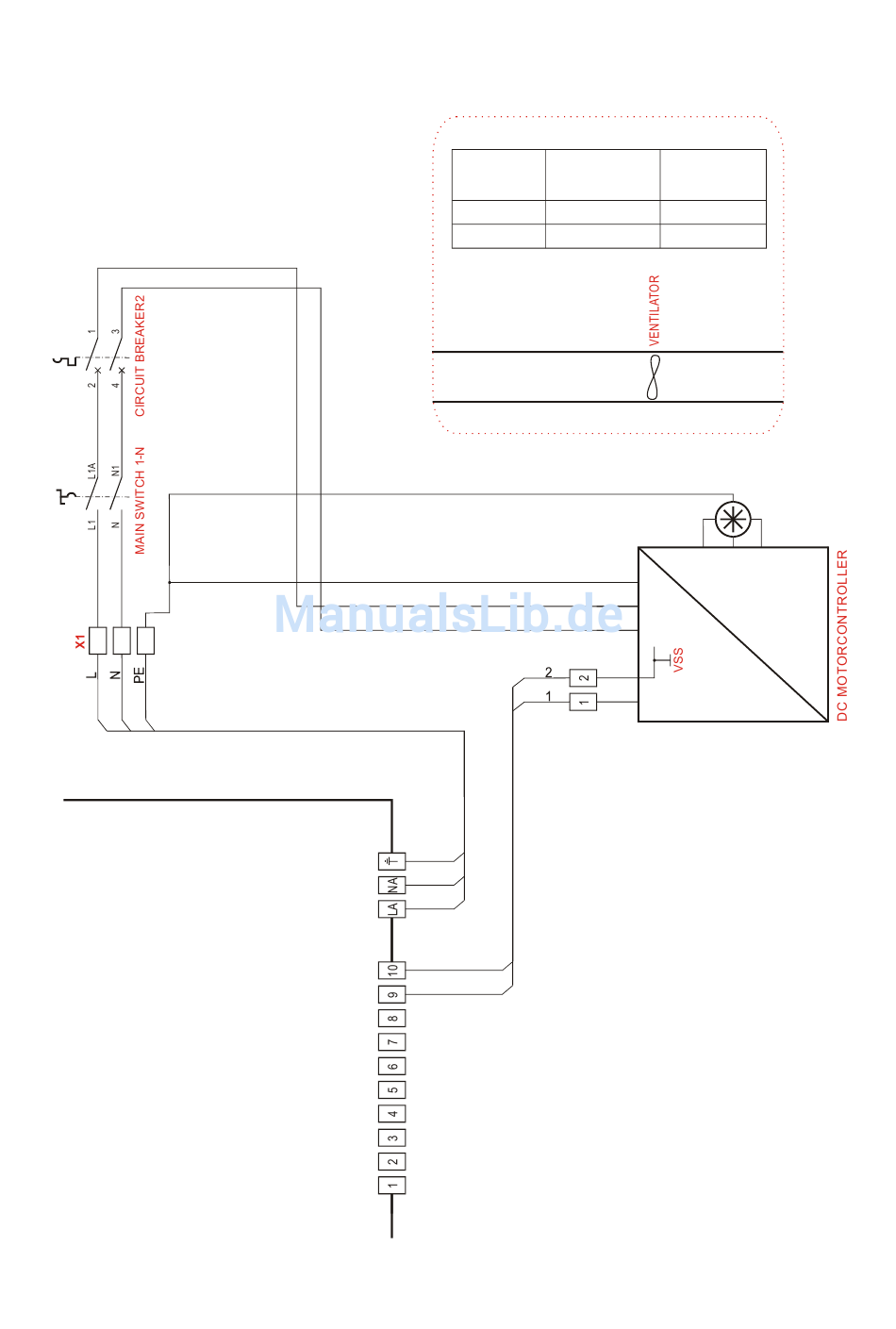

BEILAGE VII:
N
L1 PE
ROOFTOP 3000
ROOFTOP 3000 Retourventilator DC
X1
X1
0 VOLT
ANALOOG OUT
FILTER SWITCH
VALVE WTW
STEP 5
STEP 4
STEP 3
STEP 2
STEP 1
+24 VOLT
MAX. VOLUME
MODE VENITILATION AIR
VENTILATION 3
3000 m /h
COOLING
3
3000 m /h
FROM THE BUILDING
Ø 400 mm
PE
N
L
2
1
- 61 -
MAX. PRESSURE
VENTILATER
50 Pa
50 Pa
EXHAUSTFAN
N
F
L
U
4
ANALOG IN 0...10V
