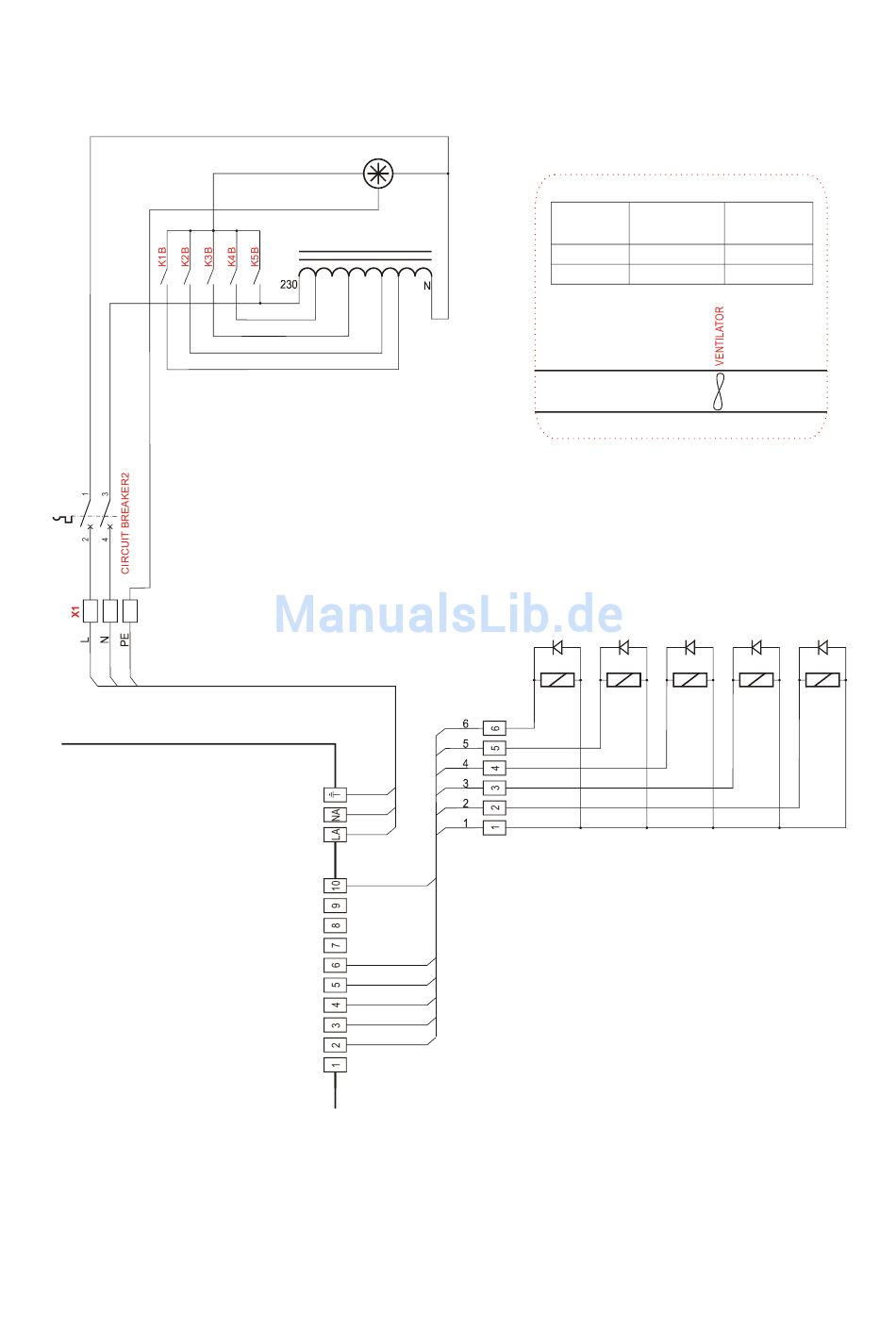

oxycom ROOFTOP 3000 Installationsanleitung Seite 59

BEILAGE VI:
L1 N PE
ROOFTOP 3000:
check if the wire is connected to
J5-8 and not J5-7 on the mainboard
ROOFTOP 3000 Retourventilator AC
EXHAUSTFAN
TRANSFORMER
X1
PE
N
L
X1
0 VOLT
ANALOOG OUT
FILTER SWITCH
VALVE WTW
STEP 5
STEP 4
STEP 3
STEP 2
STEP 1
+24 VOLT
VENTILATION
COOLING
FROM THE BUILDING
Ø 400 mm
D
K5A
24V DC
1
6
5
4
3
2
- 60 -
MAX. VOLUME MAX. PRESSURE
MODE
VENITILATION AIR VENTILATER
3000 m /h 3 50 Pa
50 Pa
3000 m /h 3
D D D
K4A K3A K2A
24V DC 24V DC 24V DC
D
K1A
24V DC
